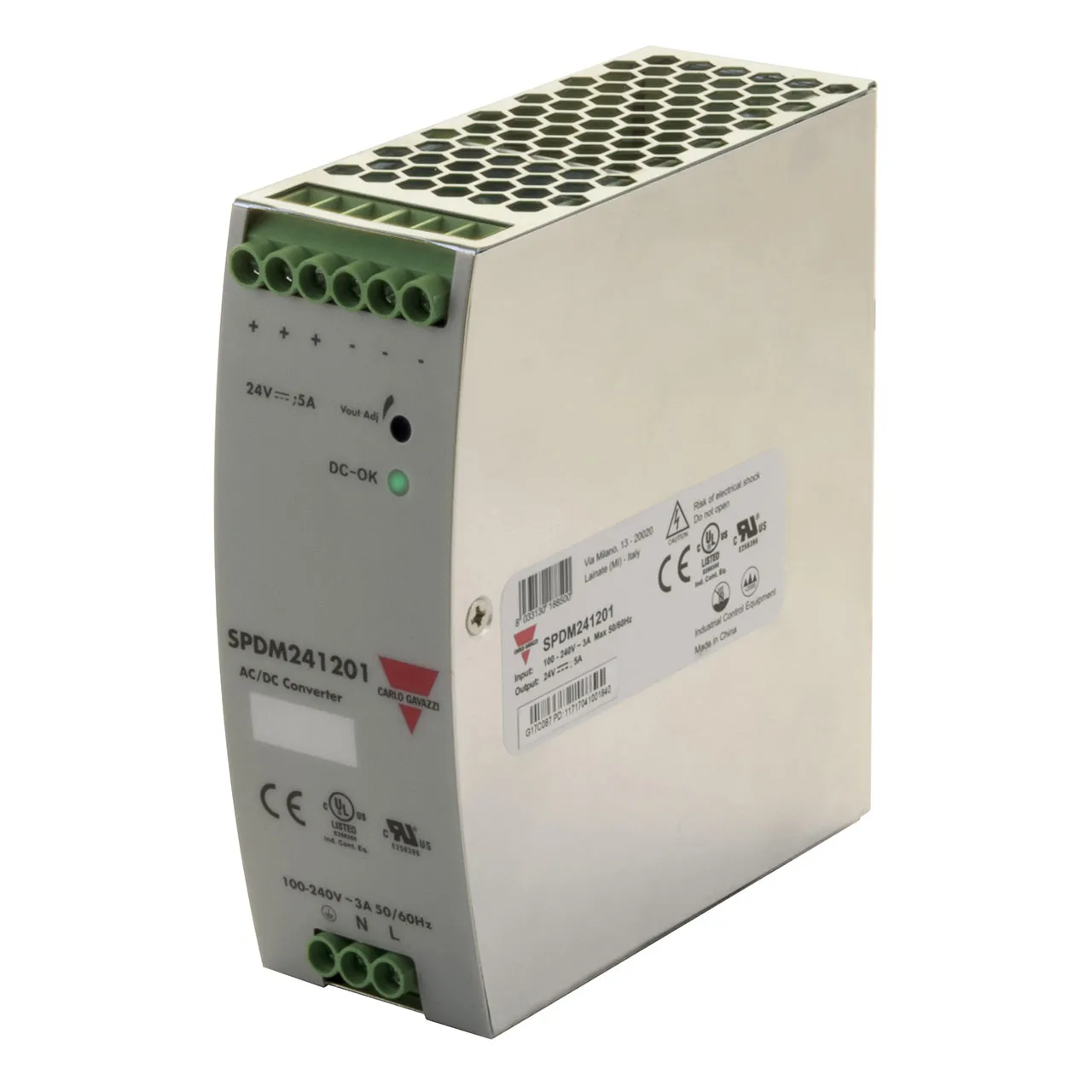

Switching Power Supply Medium Compact AC/DC 120W 24V Screw Terminals IP20 DIN-Rail Mounting 45x124.4x119mm Metallic Housing

Features

  • Switching Power Supply
  • Medium Compact
  • AC/DC
  • 120W
  • 24V
  • Screw Terminals
  • IP20
  • DIN-Rail Mounting
  • Over-load
  • Over-voltage
  • Short-circuit and Over-temperature Protections
  • 45x124.4x119mm metallic housing

Overview

Switching Power Supply, Medium Compact, AC/DC, 120W, 24V, Screw Terminals, IP20, DIN-Rail Mounting, Over-load, Over-voltage, Short-circuit and Over-temperature Protections, 45x124.4x119mm metallic housing

Product Identification

Manufacturer Series:730
Product Type:Switching Power Supply

Compliance

Agency Approvals: CE, CUL, EN, UL

Dimensions & Appearance

Color:Silver
Depth:4.69 in.
Width:1.77 in.
Height:4.88 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2.7 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current:5 A

Features

Low Power Source (LPS):No
PFC Function:Yes
Minimum Isolation Voltage:1500V
Efficiency:88%
Power Rating:120 W
,
