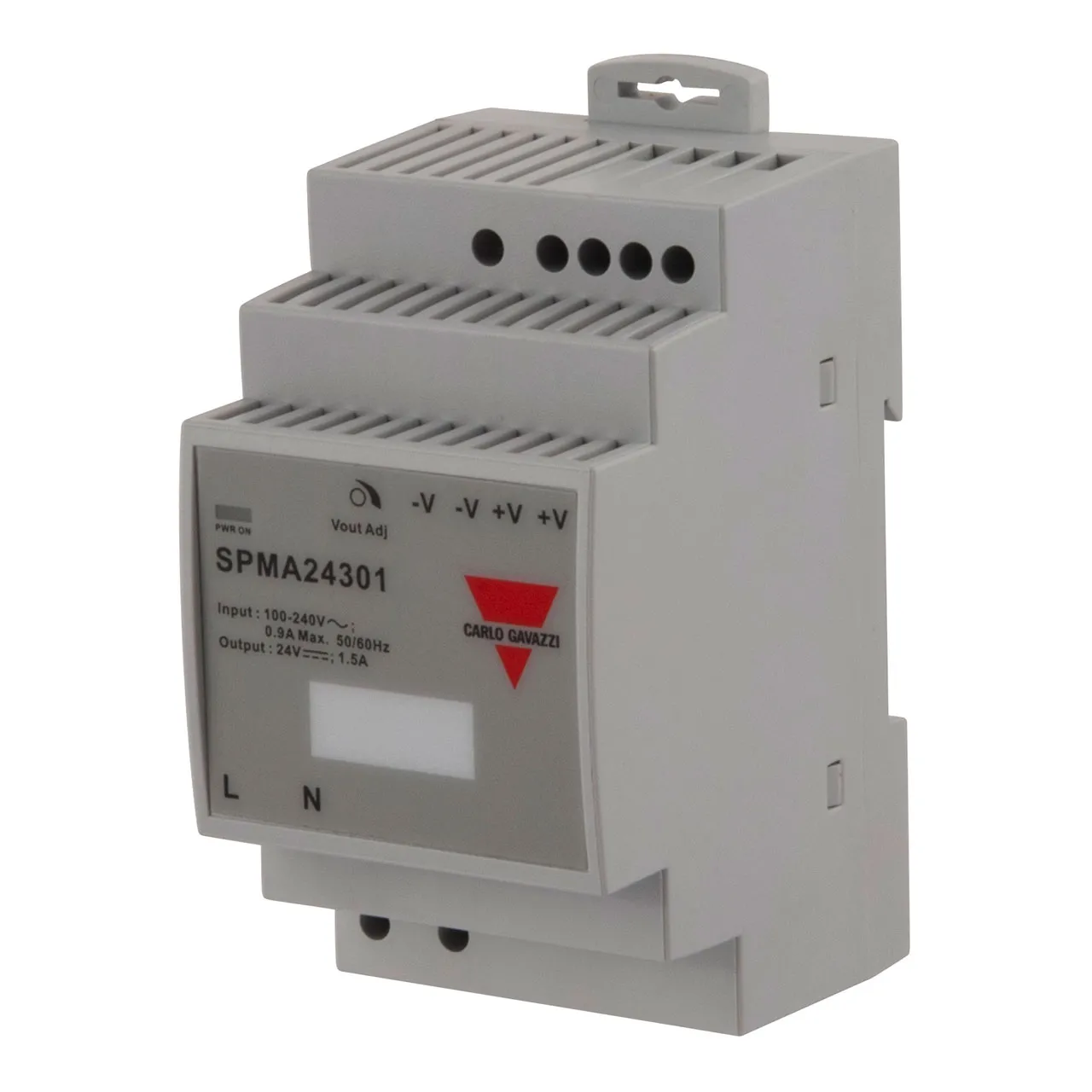

Switching Power Supply Low Profile AC/DC 36W 24V 1.5A Screw Terminals IP20 DIN-Rail Mounting 52x91x63mm Plastic Housing
Features
- Switching Power Supply
- Low Profile
- AC/DC
- 36W
- 24V
- 1.5A
- Screw Terminals
- IP20
- DIN-Rail Mounting
- Over-load
- Over-voltage and Short-circuit Protections
- 52x91x63mm plastic housing
Overview
Switching Power Supply, Low Profile, AC/DC, 36W, 24V, 1.5A, Screw Terminals, IP20, DIN-Rail Mounting, Over-load, Over-voltage and Short-circuit Protections, 52x91x63mm plastic housing
Product Identification
Product Type:Single Phase DC Power Supply
Manufacturer Series:730
Compliance
Agency Approvals: CE, CUL, EN, UL
Dimensions & Appearance
Color:White
Depth:2.50 in.
Width:2.70 in.
Height:3.60 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 240 VAC
Maximum Input Current:0.9 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current:1.50 A
Features
PFC Function:No
Low Power Source (LPS):No
Minimum Isolation Voltage:4000V
Efficiency:88%
Power Rating:30 W
