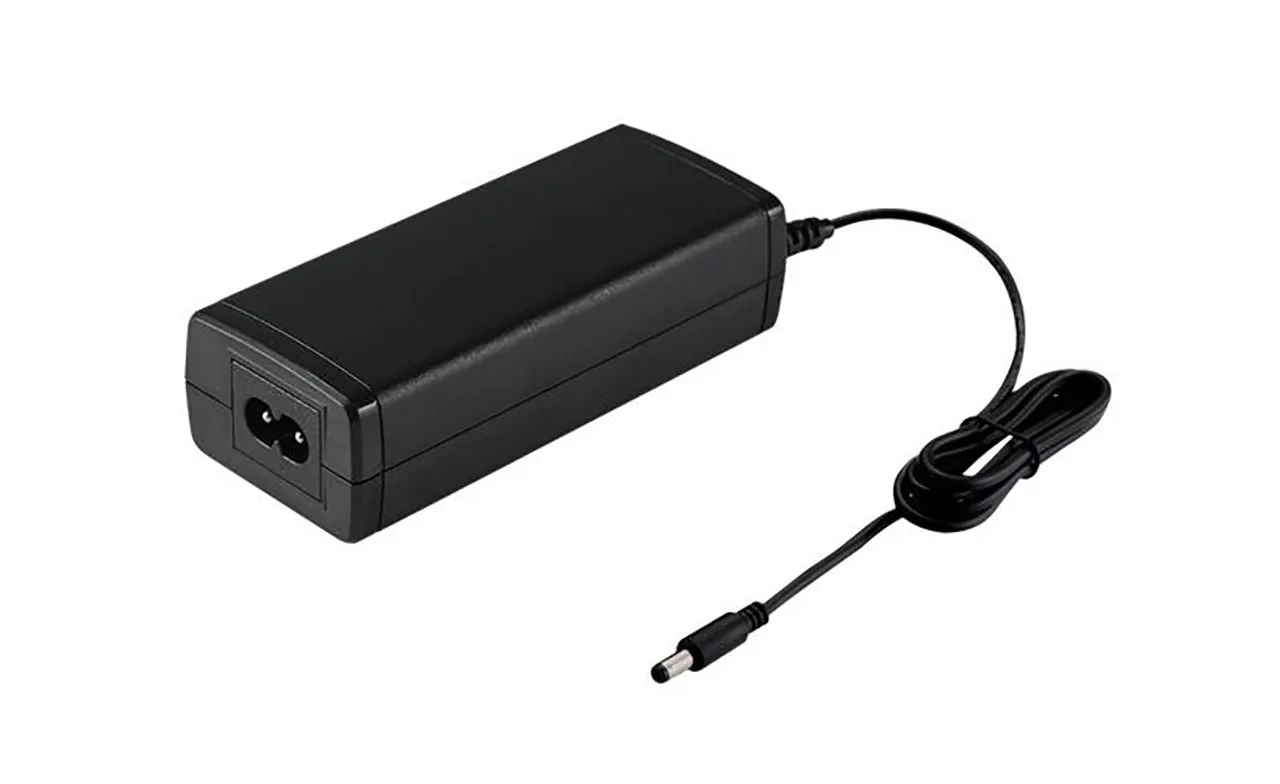

Switching Desktop Power Adapter 36W 12V 3A 2.1x5.5x11mm DC Plug C8 Inlet Black UL
Product Identification
Type:Auto Switching SMPS
Product Type:Switching Desktop Power Adapter
Manufacturer Series:YS25
Compliance
Agency Approvals: CB, CCC, CE, C-TICK, CUL, EAC, EN, FCC, ICC, PSE, TUV, UKCA, UL
Dimensions & Appearance
Style:Desktop
Color:Black
Height:1.22 in.
Width:1.81 in.
Length:4.10 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:50 Hz to 60 Hz
Input Voltage:85 VAC to 265 VAC
Maximum Input Current:1.0 A
Output
Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Output Current (Channel 1):3 A
Additional Output Voltages (VDC):N/A
Output Current:3 A
Features
Product Note: 5' Output Cord, Level VI
Polarity:Center Positive
Minimum Isolation Voltage:3000V
AC Power Cord:NOT INCLUDED, RECOMMEND 189587
Efficiency:88.3%
Power Rating:36W
