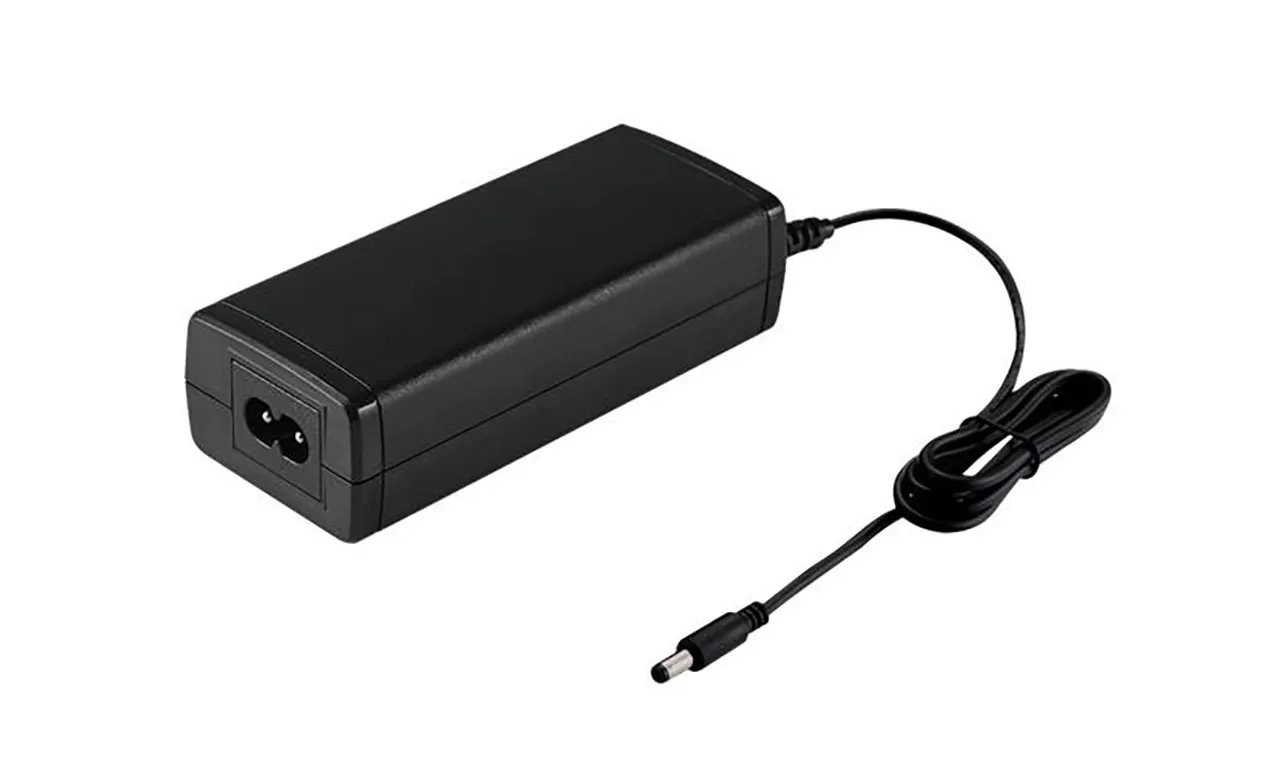

Switching Desktop Power Adapter 30W 24V 1250mA 2.5x5.5x11mm DC Plug C8 Inlet Black UL
Product Identification
Type:Auto Switching SMPS
Product Type:Switching Desktop Power Adapter
Manufacturer Series:YS25
Compliance
Agency Approvals: CB, CCC, CE, C-TICK, CUL, EAC, EN, FCC, ICC, PSE, TUV, UKCA, UL
Dimensions & Appearance
Style:Desktop
Color:Black
Height:1.22 in.
Width:1.81 in.
Length:4.10 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:50 Hz to 60 Hz
Input Voltage:85 VAC to 265 VAC
Maximum Input Current:1.0 A
Output
Number of Outputs:1
Output Connector Diameters:2.5mm x 5.5mm
Output Voltage (Channel 1):24 VDC
Output Current (Channel 1):1.25 A
Output Connector Type:Cylindrical Female
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.25 A
Features
Product Note: 5' Output Cord, Level VI
Polarity:Center Positive
Minimum Isolation Voltage:3000V
AC Power Cord:NOT INCLUDED, RECOMMEND 189587
Efficiency:88.77%
Power Rating:36W
