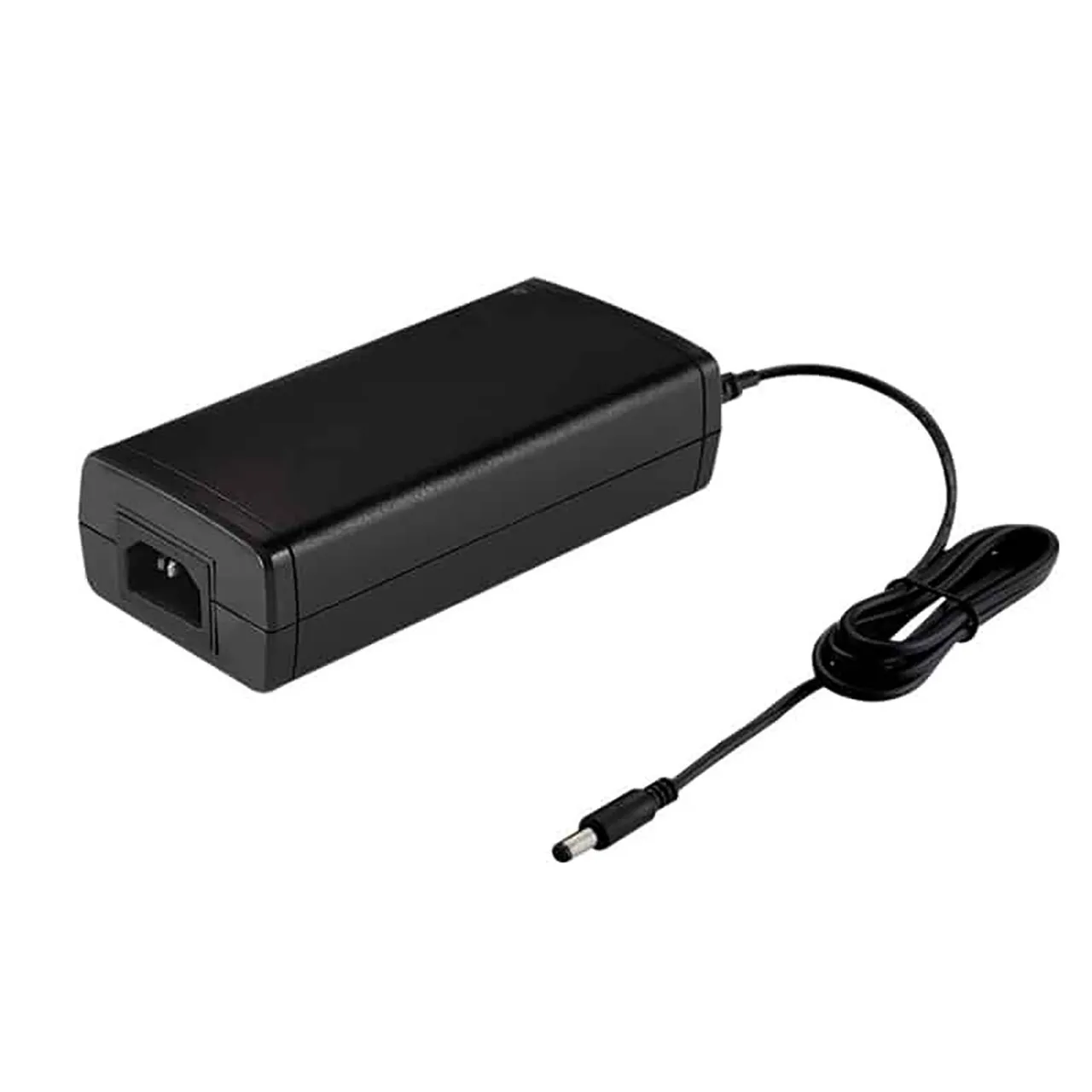

Switching Table-Top Adapter Power Supply 24V 2.5A 2.5mm Plug C14 Inlet without AC Cord

Features

  • Universal AC input; full range
  • Energy efficiency level VI
  • Extremely low leakage current: <0.25mA
  • Protection: Short circuit/Over load/Over voltage
  • Withstand voltage: 3KV
  • 3 years warranty

Applications

  • Digital equipment
  • Consumer electronic devices
  • Telecommunication devices
  • Office facilities
  • Industrial equipment

Overview

Switching Table-Top Adapter Power Supply 24V 2.5A 2.5mm Plug C14 without Cord

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:YS50

Compliance

Agency Approvals: CB, CCC, CE, C-TICK, CUL, EAC, EN, FCC, ICC, PSE, TUV, UKCA, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.28 in.
Width:2.05 in.
Length:4.55 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:50 Hz to 60 Hz
Input Voltage:85 VAC to 265 VAC
Maximum Input Current:1.5 A

Output

Number of Outputs:1
Output Connector Diameters:2.5mm x 5.5mm
Output Voltage (Channel 1):24 VDC
Output Connector Type:Cylindrical Female
Output Current (Channel 1):2.50 A
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:2.50 A

Features

Product Note: 4' Output Cord, Level VI
Polarity:Center Positive
Minimum Isolation Voltage:3000V
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Efficiency:89%
Power Rating:60 W
,
