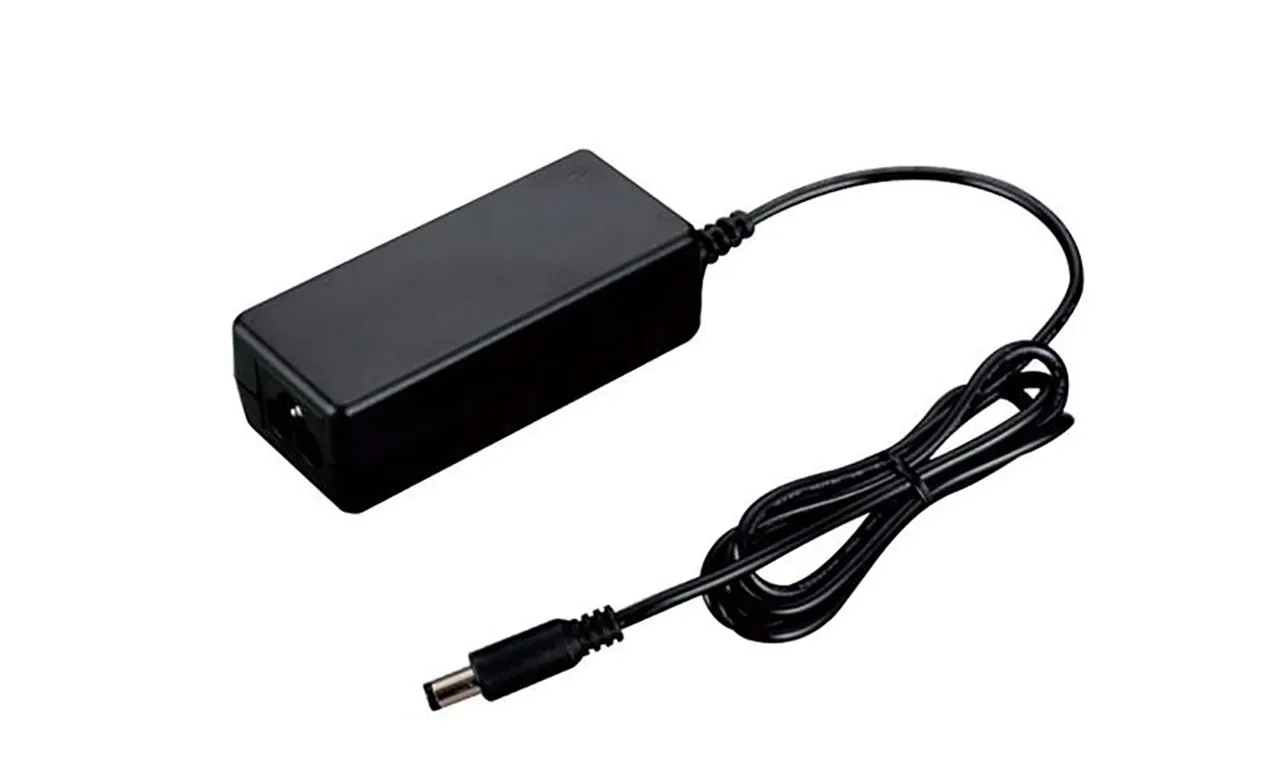

Switching Desktop Power Adapter 15W 5V 3A 2.1x5.5x11mm DC Plug C6 Inlet Black UL
Product Identification
Type:Auto Switching SMPS
Product Type:Switching Desktop Power Adapter
Manufacturer Series:YS24
Compliance
Agency Approvals: CB, CCC, CE, C-TICK, CUL, EAC, EN, FCC, ICC, PSE, TUV, UKCA, UL
Dimensions & Appearance
Style:Desktop
Color:Black
Height:1.10 in.
Width:1.54 in.
Length:3.46 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:50 Hz to 60 Hz
Input Voltage:85 VAC to 265 VAC
Maximum Input Current:.6 A
Output
Number of Outputs:1
Output Voltage (Channel 1):5 VDC
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage:5 VDC
Output Connector Type:Cylindrical Female
Output Current (Channel 1):3 A
Additional Output Voltages (VDC):N/A
Output Current:3 A
Features
Product Note: 5' Output Cord, Level VI
Polarity:Center Positive
Minimum Isolation Voltage:3000V
AC Power Cord:NOT INCLUDED, RECOMMEND 2292503
Efficiency:85%
Power Rating:15W
