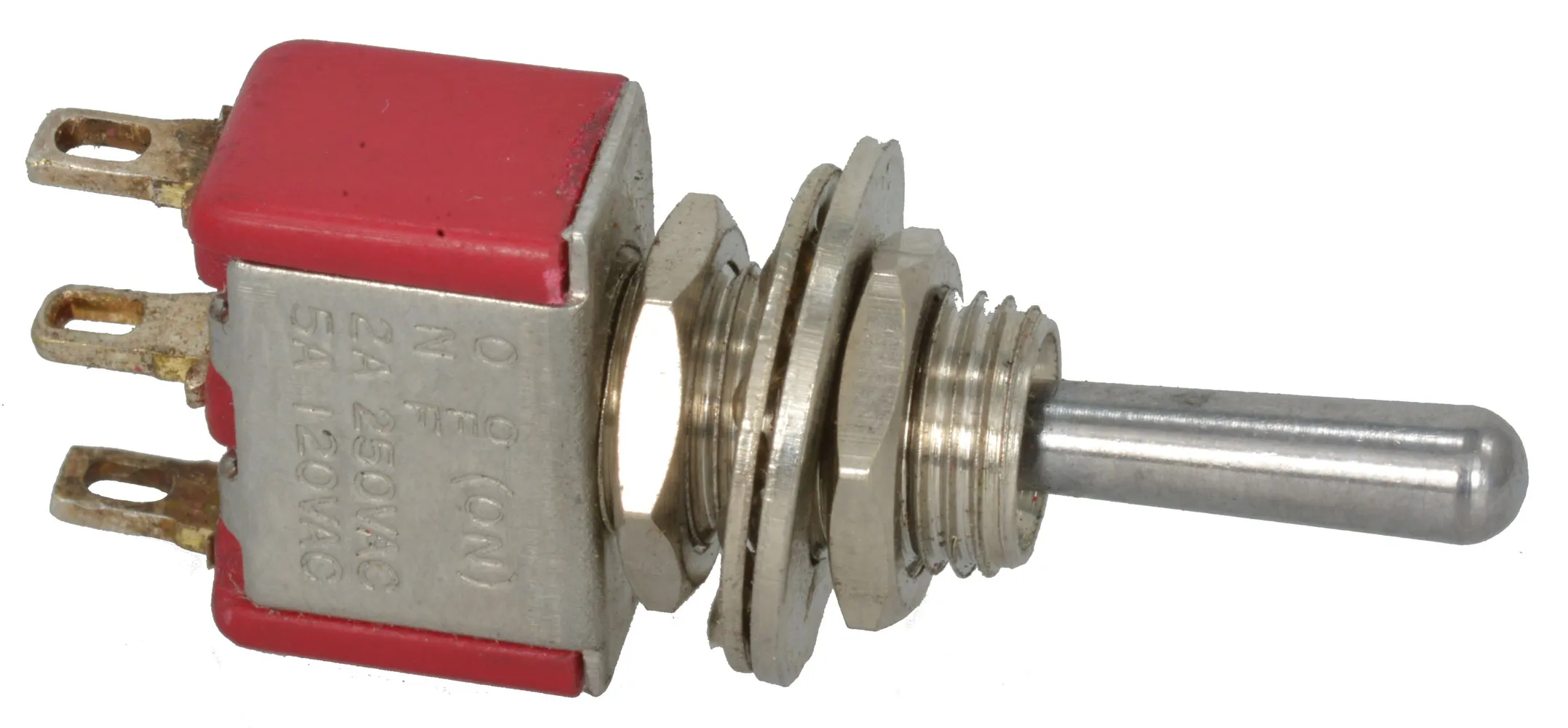

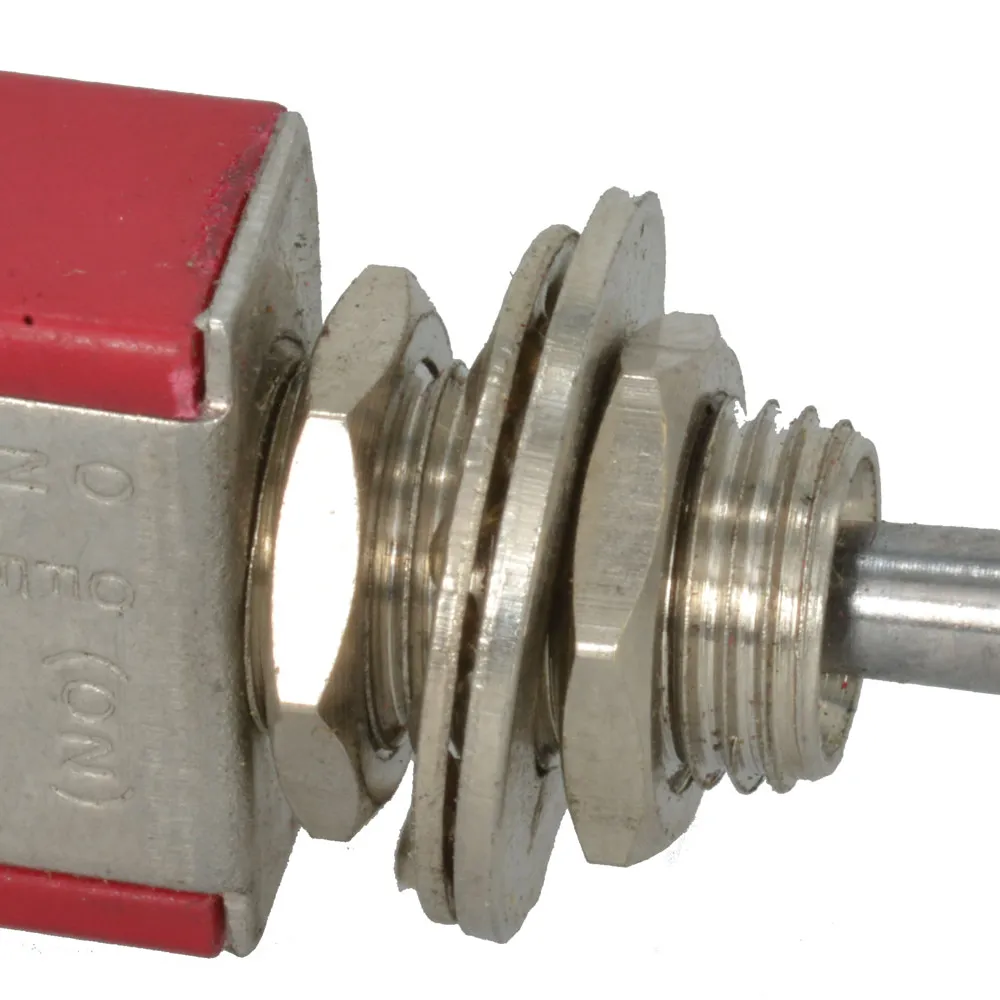

SPDT Toggle Switch ON-OFF-(ON)
Specifications
- Rating: 5A @ 120 V
- Switch configuration: ON-OFF-MOM
- Terminal Type: Solder lugs
- Panel Mount
- Panel mounting hardware included
Dimensions & Appearance
Mounting Style:Panel, Rear
Depth:0.38 in.
Height:0.52 in.
Length:0.52 in.
Body Color:Red
Mounting Hole:0.25 in.
Body Orientation:Straight
Features
Seal Description:Epoxy
Bushing Type:Threaded
Pins:3
Lead Spacing B (inch):0.185
Seal Location:Terminals
Thread Size:1/4-40
Switch Function:ON-OFF-(ON)
Color - Actuator/Cap:Chrome
Contact Form:SPDT
Actuator Length:0.42 in.
Termination Style:Solder Lug
Contact Rating:5A @ 120VAC, 2A @ 250VAC
Actuator Type:Round
Voltage Rating:120 VAC
Current Rating:5 A
