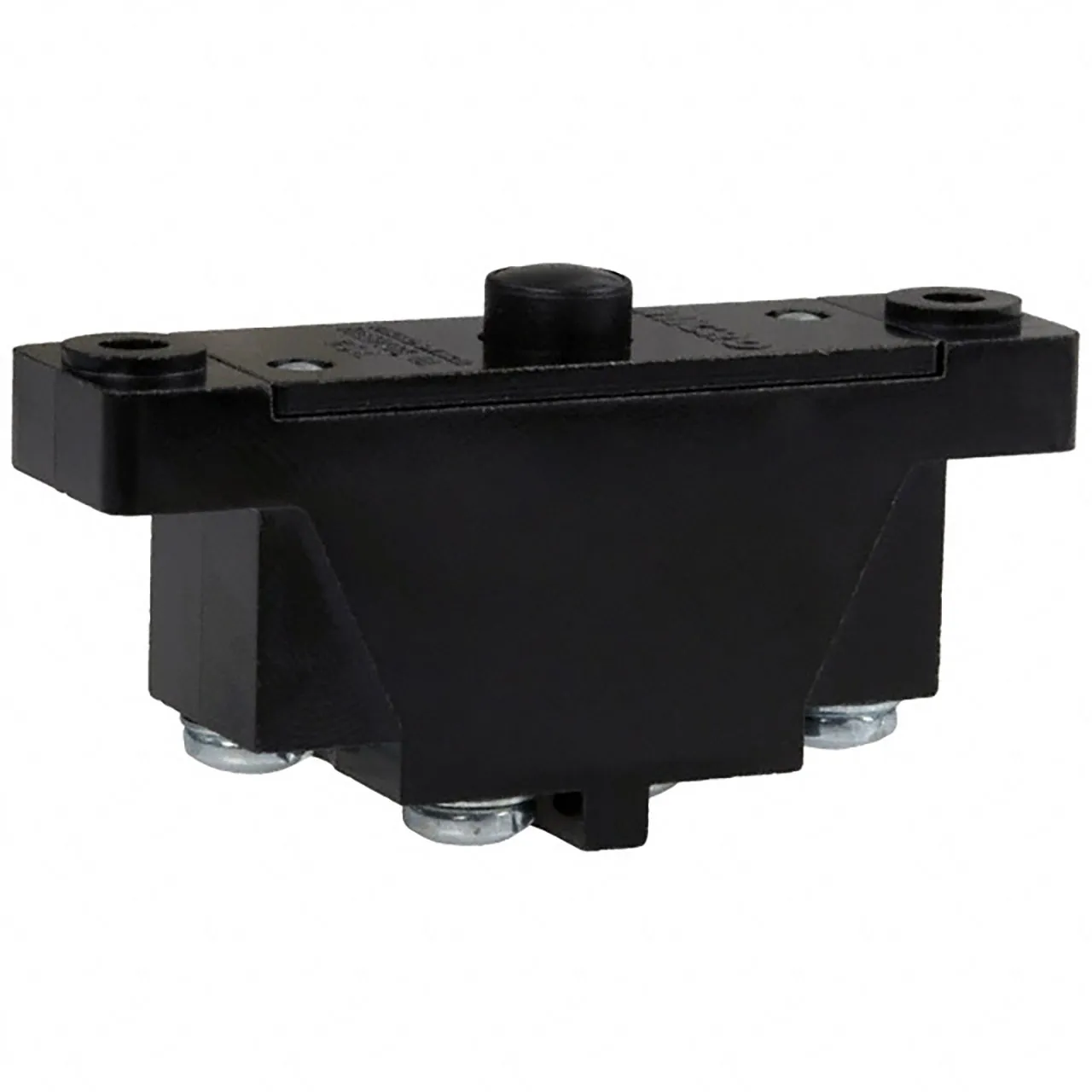

Switch Snap Action DPDT 120V 15A

Features

• Circuit: DPDT (DB/DM)
• Switch Function: OFF-(ON)
• Current Rating (Amps): 15A (AC), 800mA (DC)
• Voltage Rating - AC: 120 V
• Voltage Rating - DC: 115 V
• Actuator Type: Round (Pin Plunger)
• Mounting Type: Chassis Mount
• Termination Style: Screw Terminal
• Operating Force:198 ~ 312gf
• Release Force: 113gf
• Operating Position: 0.085" (2.16mm)
• Pretravel: 0.060" (1.5mm)
• Differential Travel: 0.025" (0.6mm)
• Overtravel: 0.080" (2.03mm)
• Operating Temperature: -55°C ~ 85°C
• Mechanical Life: 10,000,000 Cycles
