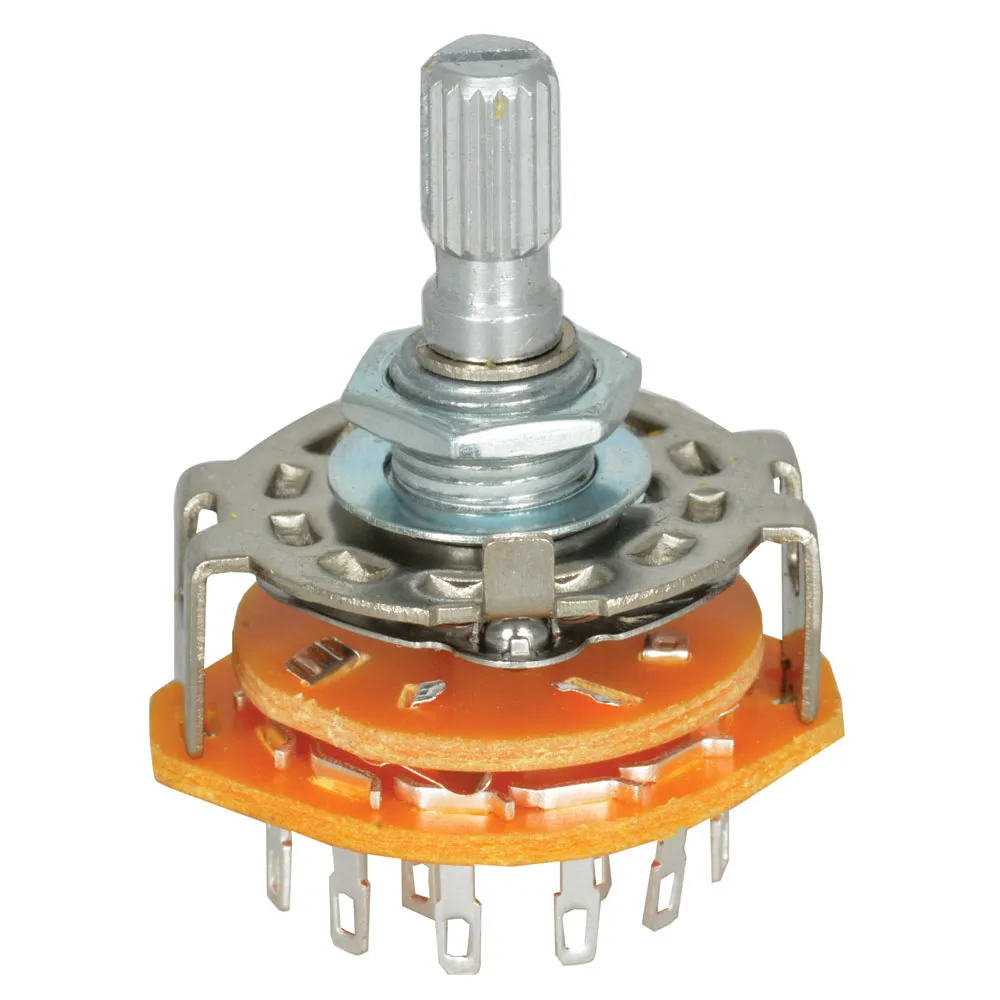

Rotary Switch

4 Poles, 3 Positions

Specifications:

  • Make before break
  • Contact rating: 30VDC @ 0.3A
  • Contact resistance: 30mΩ
  • Insulation resistance: 10MΩ min.
  • Mounting hole diameter: 3/8"
  • Bushings material: Solid brass
  • Shaft material: Slotted aluminum
  • Shaft size: 0.41"L x 0.236" Diameter (max.)
  • Panel mount
  • Solder eyelet lugs
  • Includes: nut and washer

Dimensions & Appearance

Diameter:1.19 in.
Length:1.51 in.
Shaft Diameter:0.235 in.
Shaft Length:0.5 in.
Shaft Style:Slotted Knurl

Features

Minimum Insulation Resistance:10 MOhm
Index Angle (Deg):30
Number of Positions:3
Number of Poles:4
Contact Style:Shorting Make/Break
Maximum Contact Resistance:30 mOhm
Terminal Type:Solder
Current Rating:0.3 A
Voltage Rating:30 VDC
,
