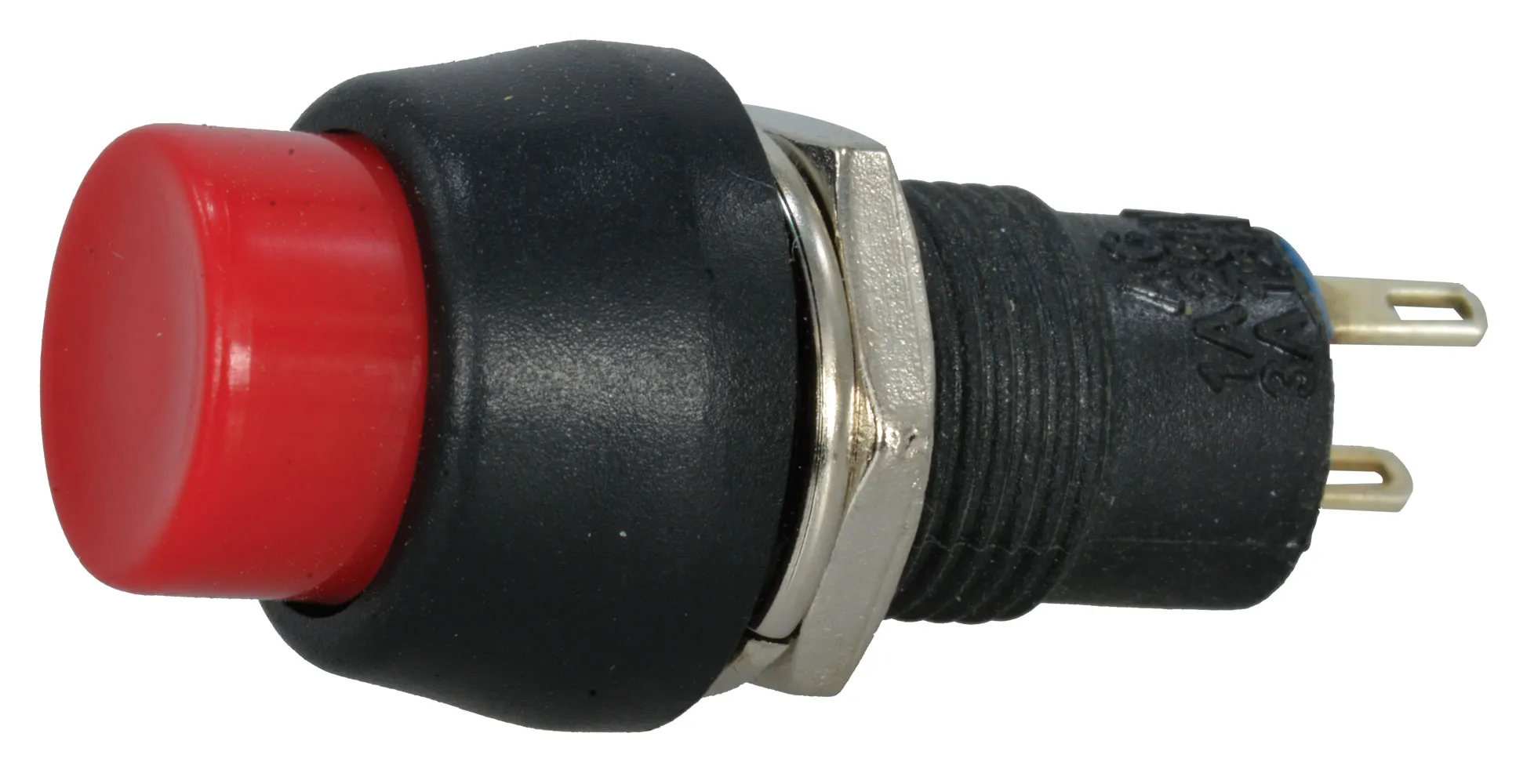

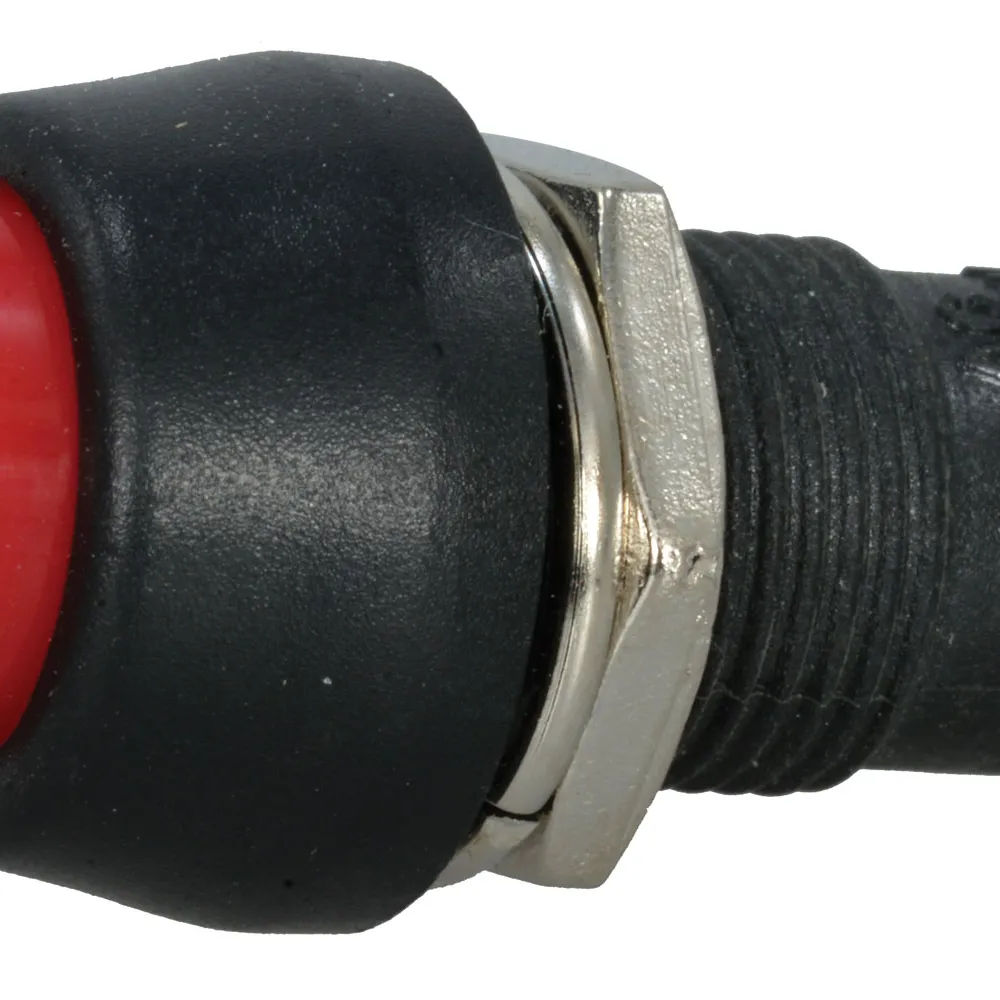

Momentary Pushbutton Switch SPST-NO OFF-(ON)

Features

  • Contact form: SPST-NO
    Single Pole Single Throw-Normally Open
  • Switch Function*: OFF-(ON)
  • Contact rating: 3A @ 125VAC
  • Dimensions: 0.59" Depth x 1.2" Total length
  • Mounting hole diameter: 0.406"
  • Solder terminals
  • Number of pins: 2
  • Button color: Red
Note: (ON) denotes momentary ON.

Dimensions & Appearance

Mounting Style:Panel, Front
Length:1.2 in.
Body Color:Black

Features

Pins:2
Switch Function:OFF-(ON)
Pitch:0.175 in.
Illumination Type:N/A
Contact Rating:3 A @ 125 VAC
Color - Actuator/Cap:Red
Contact Form:SPST
Termination Style:Solder Lugs
Actuator Type:Round Button
Voltage Rating:125 VAC
,
