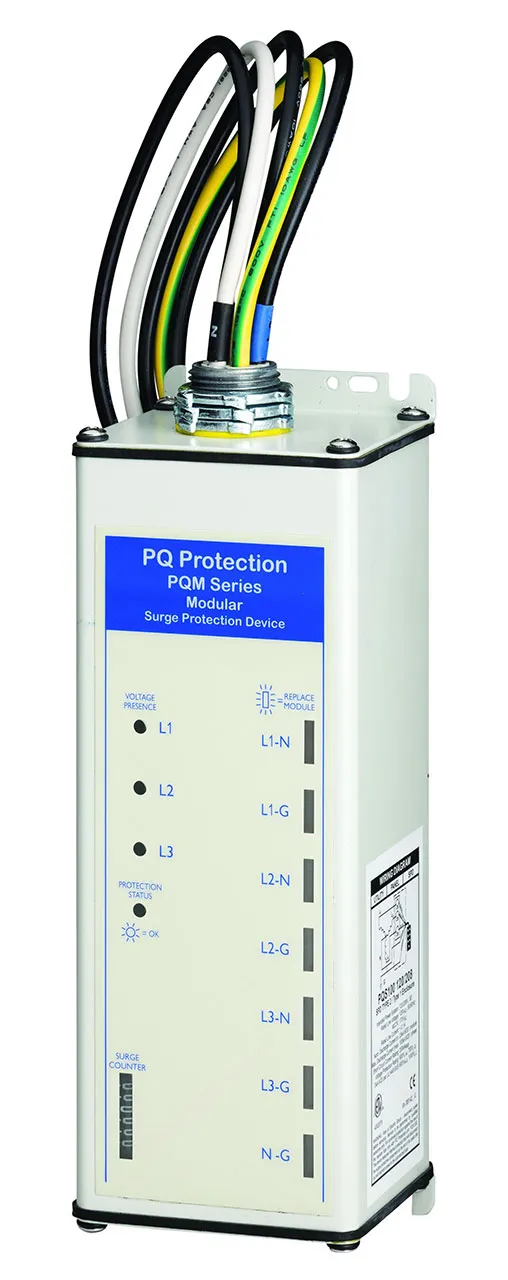

Surge Protection Device(SPD) 277/480V 3-Phase WYE 4W+G 100KA
Product Identification
Product Type:Surge Protection Device
Compliance
Agency Approvals:UL 1449 5th Edition, ANSI/IEEE
Dimensions & Appearance
Depth:3.07 in.
Width:3.31 in.
Height:9.45 in.
Mounting Type:Surface Mount
Features
Protection Style: L-L, L-N, N-G, L-G
Short Circuit Protection:200 kA
Surge Current Rating:20 kA
Maximum Clamping Voltage:320 / 550
Application: Branch Panel, Distribution Panel, Large Equipment, Lighting Panel, MCC, Service Entrance
Voltage Rating:277 VAC, 480 VAC, 3-Phase Wye, 4W+G
Current Rating:20 A or 30 A
