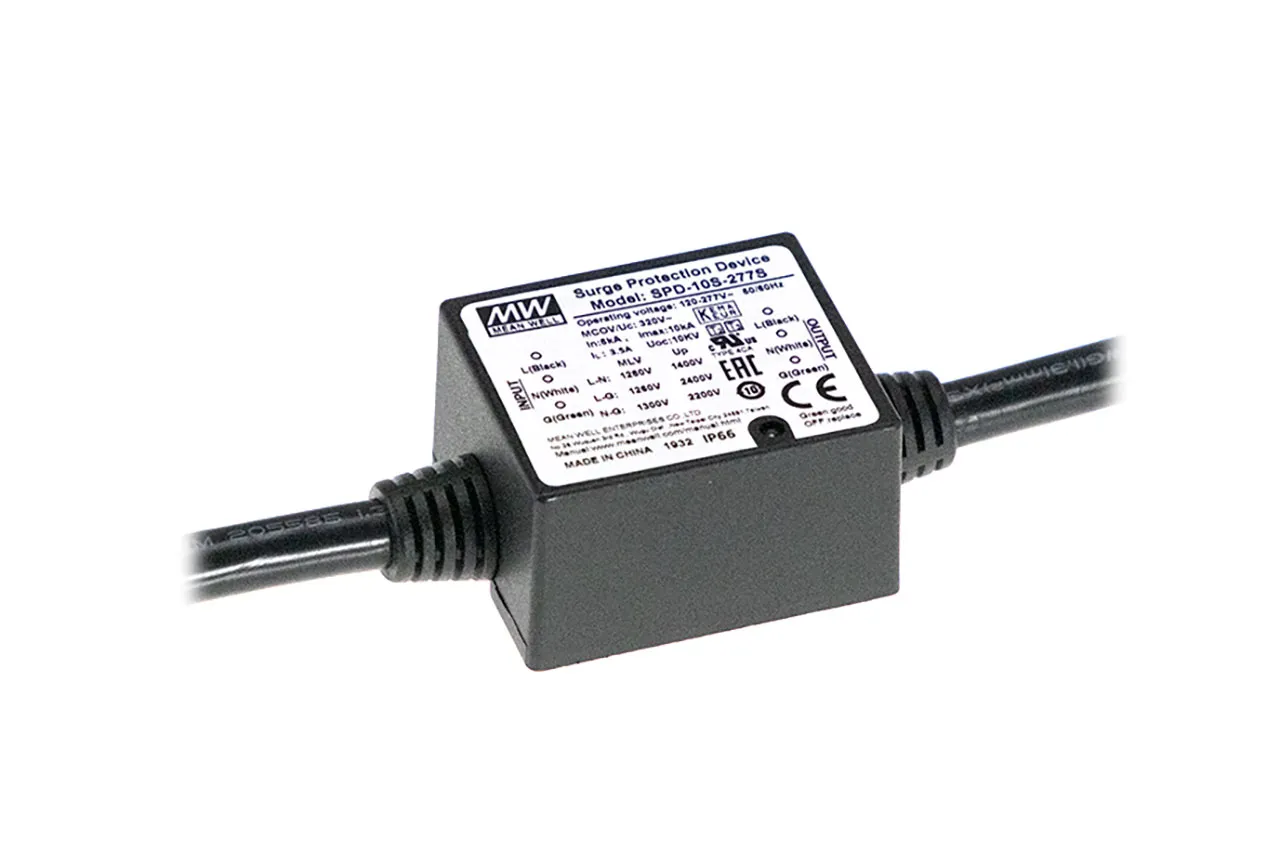

Surge Protection Device 10kA Max Discharge Current 120-277VAC 3.5A 320VAC MCOV
Features
- Series connection style
- UL1449 type 4 component assemblies
- Line to Ground & Line to Line protected
- 10kA maximum discharge current (Imax), 8/20µs
- Thermally protected
- Double insulation cable wire
- LED status indicator
- IP66 design for indoor or outdoor installations
- 10KV surge protection capability
Overview
SPD-10S-277S thermally protected surge protective device is a self-protected device which is specifically designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection. It is constructed with thermally protected varistor technology. Its built-in thermal disconnect function provides additional protection to prevent catastrophic failure and fire hazard even under the extreme circumstances of varistor end-of-life or sustaining over voltage conditions. It also features a built-in LED indicator that notifies when replacement of the module is needed.
Applications
- Outdoor and commercial LED lighting
- Roadway lighting
- Traffic lighting
- Digital signage
- Wall wash lighting
- Parking garage/lot lighting
- Flood lighting
- Tunnel lighting
- Street lighting
Compliance
Agency Approvals:UL, CUL, CE, EN, EAC, UKCA
Dimensions & Appearance
Depth:1.83 in.
Height:1.02 in.
Width:2.23 in.
Mounting Type:In-Line, Bulkhead
Input
Input Voltage:120 VAC to 277 VAC
Features
Failsafe Protection:Yes
Surge Current Rating:10 kA
Short Circuit Protection:N/A
Technology:Thermal-MOV
Protection Style:L-N, L-G, N-G
IP Rating:IP66
Maximum Clamping Voltage:1260 / 1260 / 1300
Application:Lighting
Current Rating:3.5 A
Voltage Rating:320 VAC
