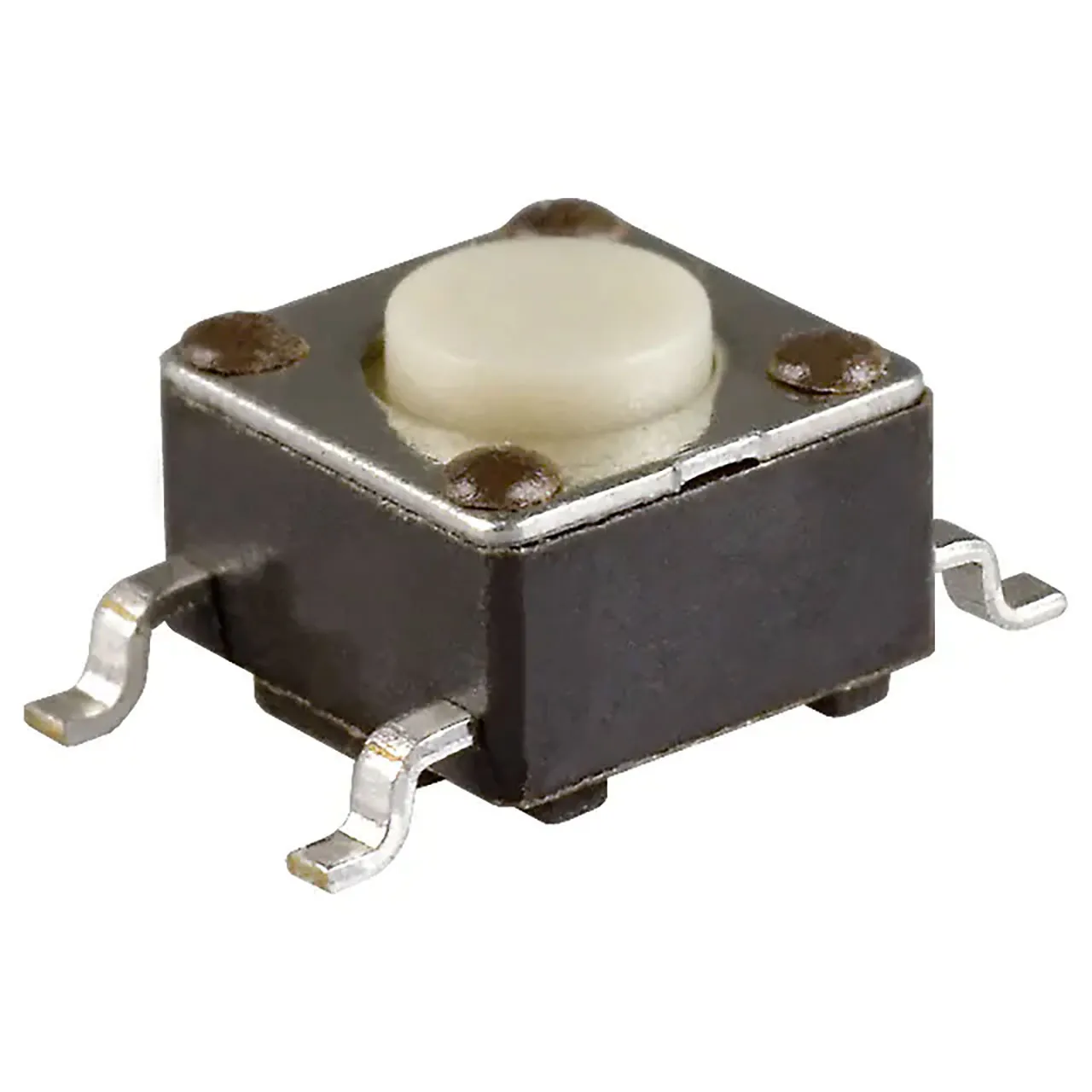

Tactile Pushbutton Switch SPST-NO OFF-MOM 50mA 12VDC White Button

Specifications

  • Contact Form: SPST-NO
  • Switch Function: OFF-(ON)
  • Illuminated: Non-Illuminated
  • Switch Travel: 0.25 mm
  • Current Rating: 50 mA
  • Voltage Rating DC: 12 VDC
  • Actuator Type: Standard
  • Mounting Type: Surface Mount
  • Actuator Height off PCB, Vertical: 4.30 mm
  • Actuator Orientation: Top Actuated
  • Termination Style: Gull Wing
  • Outline: 6 mm x 6 mm
  • Operating Force: 260 gf
  • Operating Temperature: -20°C to 70°C
  • Actuator Material: Polyamide (PA), Nylon
  • Mechanical Life: 100,000 Cycles

Dimensions & Appearance

Depth:0.14 in.
Mounting Style:Surface Mount
Length:0.24 in.
Width:0.24 in.
Body Color:Black

Features

Pins:4
Actuator Length:0.028 in., 0.70 mm
Switch Function:OFF-(ON)
Illumination Type:N/A
Lead Pitch:4.5 mm
Termination Style:Gull Wing
Contact Form:SPST-NO
Color - Actuator/Cap:White
Actuator Type:Round Button
Current Rating:50 mA @ 12 VDC
,
