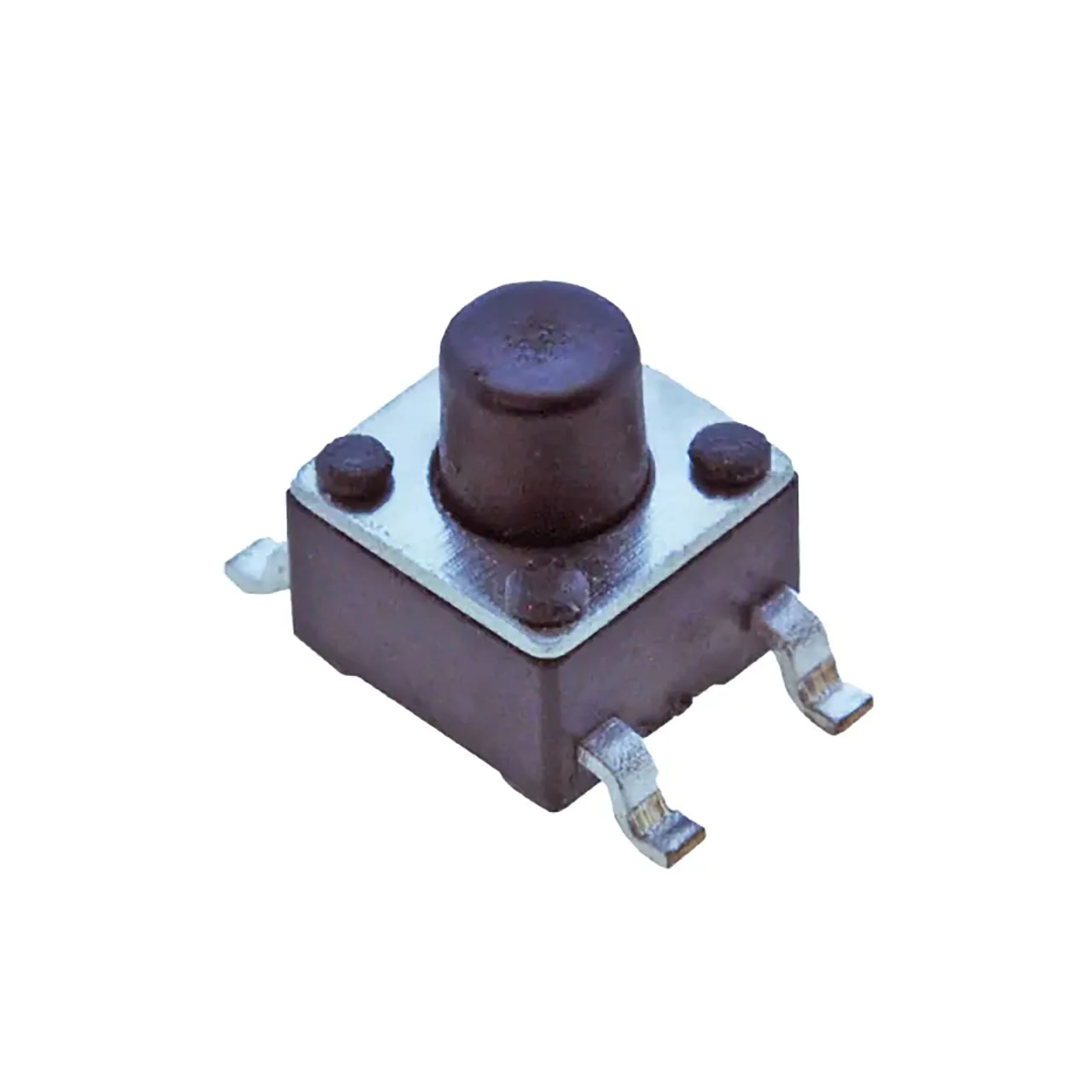

Micro Tactile Switch SPST-NO Top Actuated SMT Gull Wing 12 VDC 50mA

Features

  • Circuit: SPST-NO
  • Switch Function: OFF-MOM / OFF-(ON) / OFF-MOMENTARY ON
  • Contact Rating @ Voltage: 0.05 A @ 12 VDC
  • Actuator Type: Standard
  • Mounting Type: Surface Mount
  • Actuator Height off PCB, Vertical: 5 mm
  • Actuator Orientation: Top Actuated
  • Termination Style: Gull Wing
  • Outline: 4.5 mm x 4.5 mm
  • Illumination: Non-Illuminated
  • Operating Force: 260 gf
  • Operating Temperature: -20°C to 70°C
  • Switch Travel: 0.2 mm
  • Mechanical Life: 200,000 Cycles
  • Base Number: TL3305

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Body Color:Black
Depth:0.12 in.
Mounting Style:Surface Mount
Length:0.18 in.
Width:0.18 in.

Features

Pins:4
Color - Actuator/Cap:Black
Actuator Length:0.1 in., 2.54 mm
Switch Function:OFF-(ON)
Illumination Type:N/A
Lead Pitch:3 mm
Termination Style:Gull Wing
Contact Form:SPST-NO
Actuator Type:Round Button
Current Rating:50 mA @ 12 VDC
,
