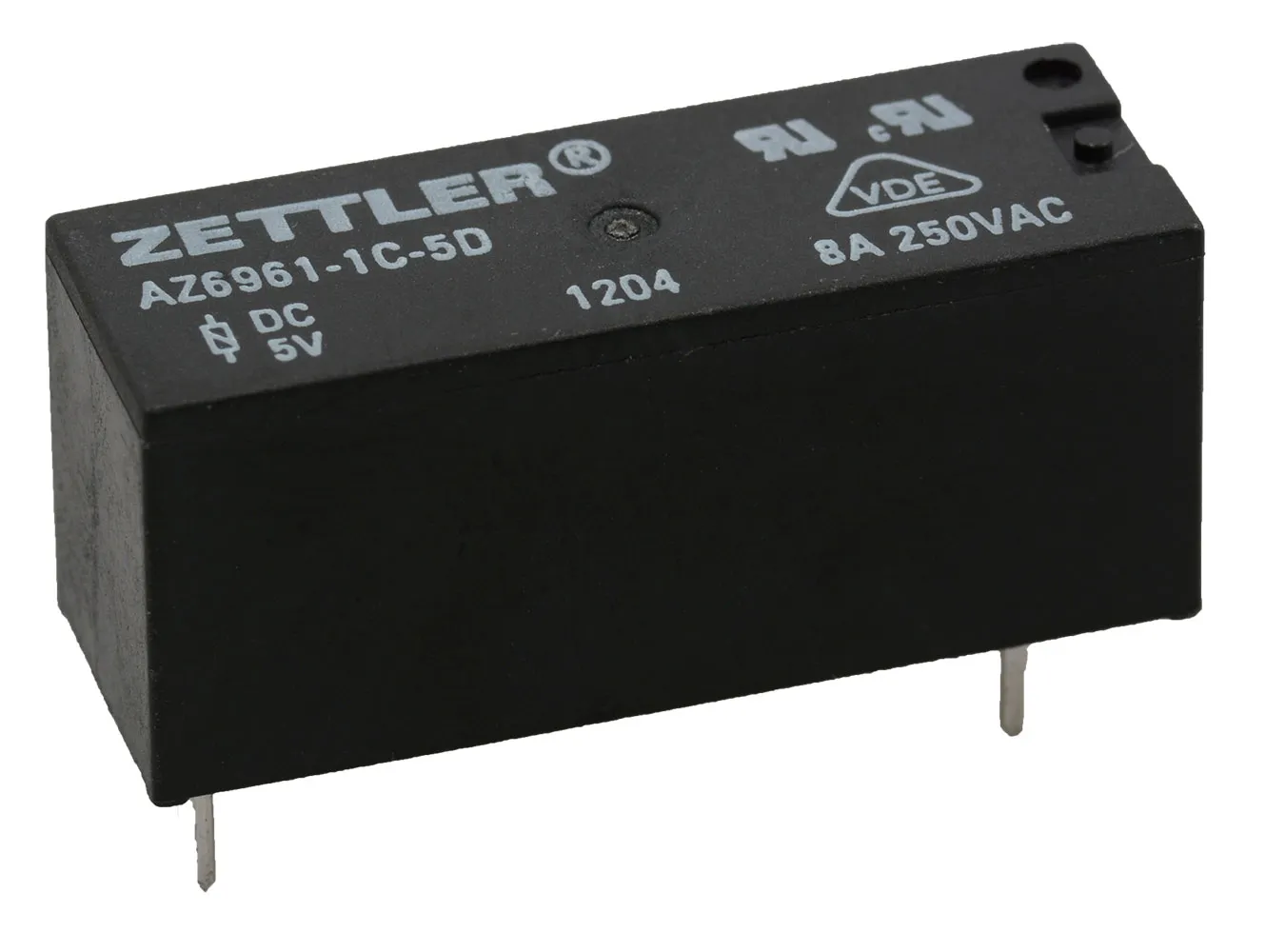

Sub-Miniature Power Relay 1 Form C (SPDT) 5 VDC 10 A 113 Ohm 5-Pin

Specifications

  • Contact Form: 1 Form C (SPDT)
  • Relay Construction: Non-Latching
  • Nominal Coil Voltage: 5 VDC
  • Max. Continuous: 11.6 VDC
  • Must Operate: 3.5 VDC
  • Coil (Ohms): 113
  • Contact Rating: 10 A @ 250 VAC resistive; 8 A @ 30 VDC/250 VAC
  • Number of Pins: 5
  • Mechanical Life: 10,000,000 operations
  • Electrical Life: 3x 100,000 operations @ 8A/240VAC res.

Dimensions & Appearance

Width:10.35 mm
Height:12.55 mm
Length:28.75 mm

Features

Coil Voltage:5 VDC
Pins:5
Relay Construction:Non-Latching
Contact Current:10 A, 8 A
Coil Resistance:113 Ohm
Contact Voltage:250 VAC, 30 VDC
Contact Form:SPDT
,
