Subminiature and Microminiature D Connectors

• Government/Industry Qualification: No
• RoHS/ELV Compliance: Not ELV/RoHS compliant

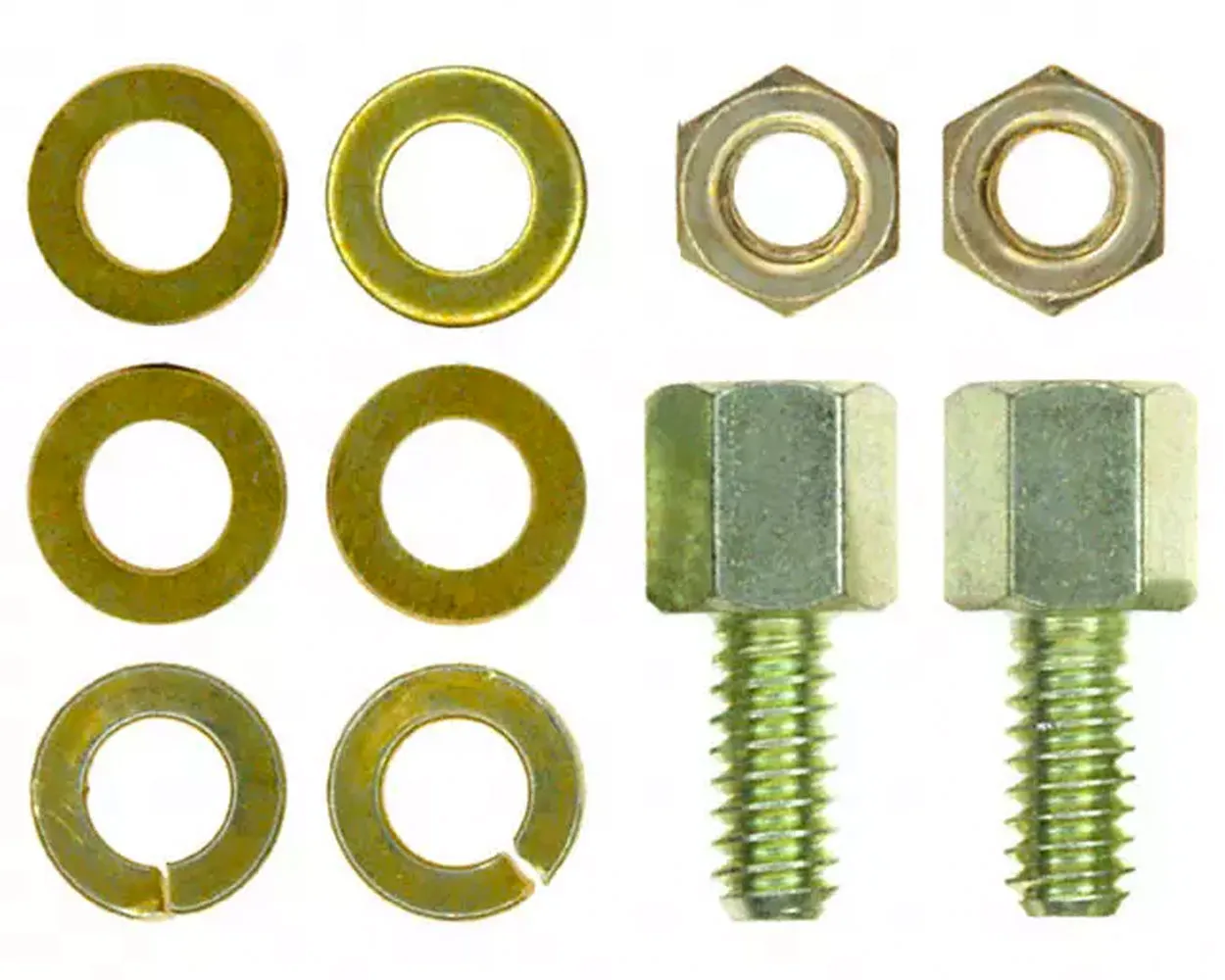

• Product Type: Female Screw Locks
• Thread Size: 4-40 UNC
• Thread Length (mm [in]): 6.35 [0.250]
• Screw Length (mm [in]): 11.13 [0.438]
• Screwlock Style: Screwlock With Lockwasher and Hex Nut
• Screw Finish: Yellow Chromate
• Packaging Method: Individual Kit
• Screw Plating: Zinc
• Screw Material: Steel
• For Use With: Metal Shell and All Plastic Connectors (HDE)
• Comment: All parts are packaged unassembled.
• Each female screwlock kit is comprised of two assemblies.
• One or two flat washers may be required for panel thicknesses less than 1.52 [.060]. Female screwlocks are not recommended for panel thicknesses greater than 1.52 [.060].
• Female screwlocks with 2-56 thread size are to be used with cable clamps with mounting flanges. Female screwlocks with 4-40 and M3 (Metric) thread sizes can be used with all other cable clamps.
• Female screwlocks mate with male screw retainers.
• Short female screwlocks cannot be used with HDF connectors.
