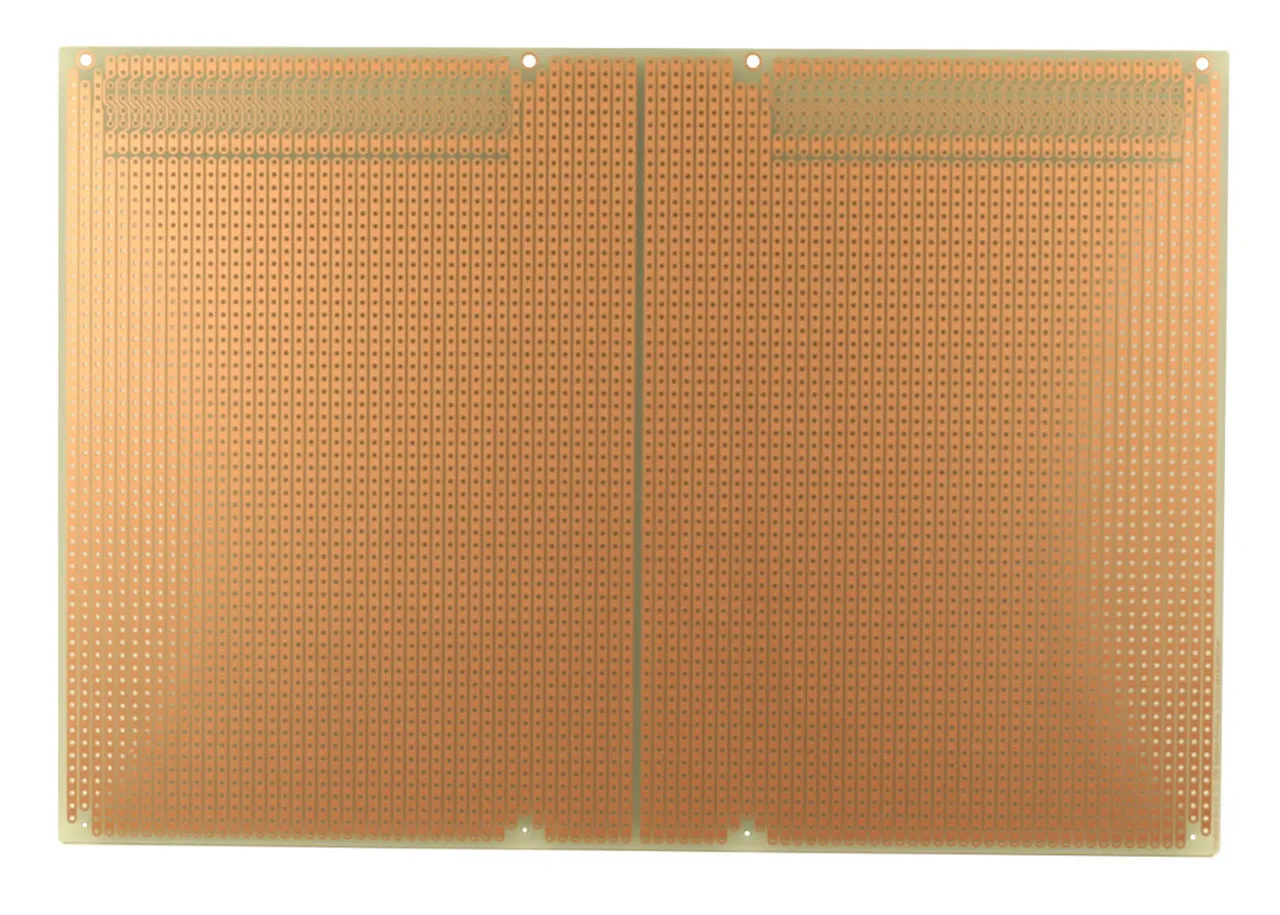

StripBoard-6U Accepts DIN Connector 1 Sided PCB 6.30" x 9.19"

Features

• Standard stripboard pattern, with tracks running the length of the board
• Single-sided high-quality FR4 glass-epoxy circuit board
• 1oz/ft² copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible
• 90 x 62 holes (90 strips), 0.037" holes are drilled on 0.1" (2.54mm) centers
• Standard double height (6U) Eurocard/VME size. 9.2" wide, 6.3" long, 1/16" thick (233.4 x 160 x 1.6mm). Off-the-shelf 6U size enclosures are available

Overview

ST6U StripBoard is a prototyping circuit board with a standard stripboard pattern, with tracks running the length of the board. It has 0.1" hole spacing for DIP integrated circuits and headers and other parts.

ST6U is a standard double height (6U) Eurocard/VME size. Off the shelf enclosures and card cages are available.

ST6U accepts two standard 64 pin or 96 pin DIN-41612 connector for backplane applications or expansion. The connector footprint gives easy access to connector rows 1 and 3. Row 2 has unconnected pads.

ST6U has higher quality than traditional stripboard. The holes are drilled, not punched. The base material is high-quality FR4 glass epoxy board. It has better stability and moisture resistance than boards using phenolic or SRBP (synthetic resin bonded paper) which can warp with exposure to humidity.
