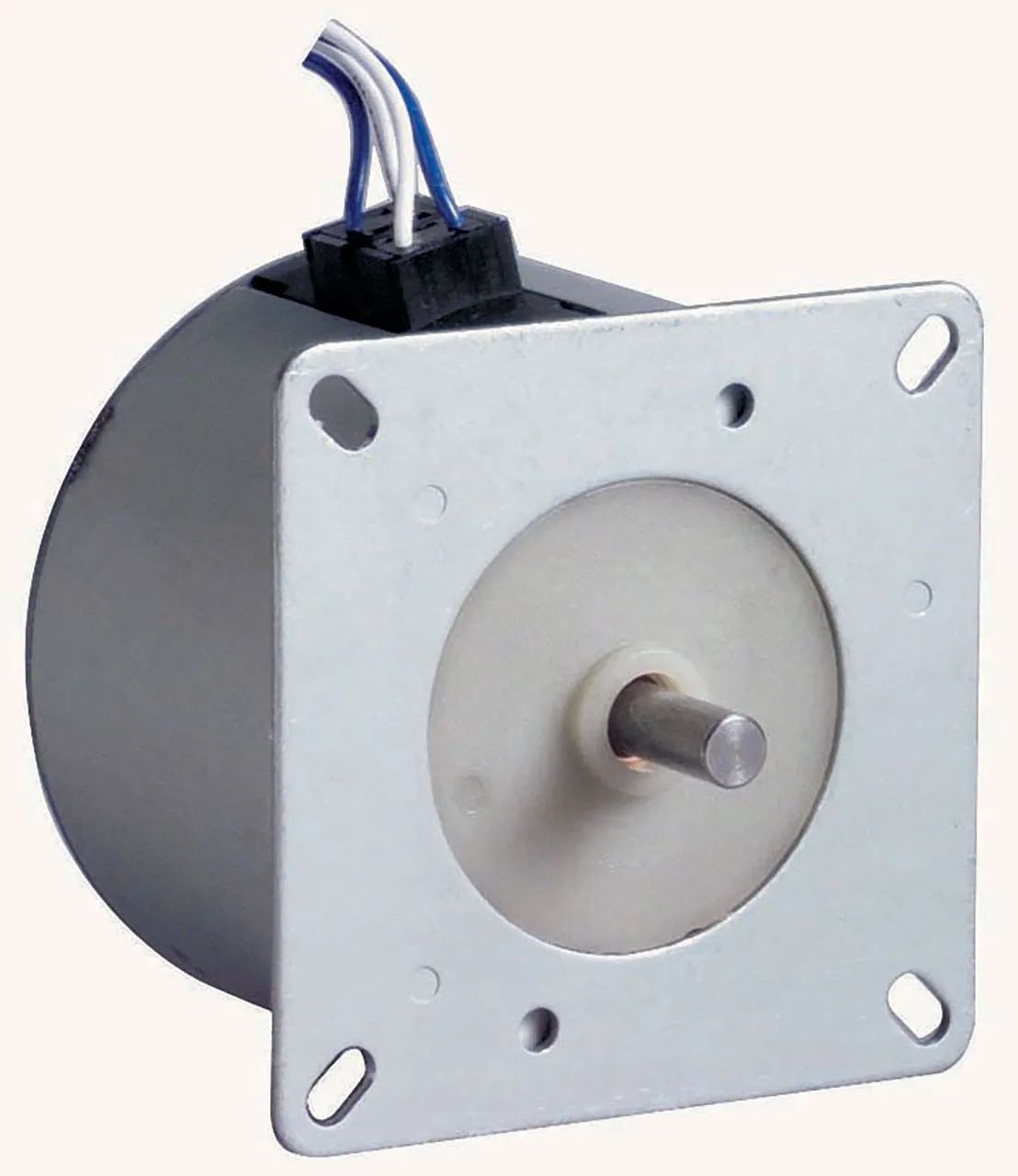

Stepper Motor 829400 Step-7D5 Phase-2 R-5.2.Ohm Reversible
Features
- Coil Type: Bipolar
- Step Angle: 7.5
- Resistance per Phase: 5.2 Ohms
- Shaft Diameter: 0.157 in., 4 mm
- Shaft Length: 0.630 in., 16 mm
- Motor Size (Diameter x Length) (inch): Round - 2.280 in. Dia 57.80 mm
- Additional Feature: Round Shaft, Reversible Direction
- Product Type: Permanent Magnet
- Termination: Wire Leads
- Harmonized Code: 8501109990
- ECCN: EAR99
Overview
Stepper Motor 829400 Step-7D5 Phase-2 R-5.2.Ohm Reversible.
Media
Product Identification
Additional Feature:Round Shaft, Reversible Direction
Product Type:Permanent Magnet
Dimensions & Appearance
Shaft Diameter:0.157 in., 4 mm
Shaft Length:0.630 in., 16 mm
Features
Coil Type:Bipolar
Step Angle:7.5
Resistance per Phase:5.2 Ohms
Motor Size (Diameter x Length) (inch):Round - 2.280 in. Dia 57.80 mm
Termination:Wire Leads
