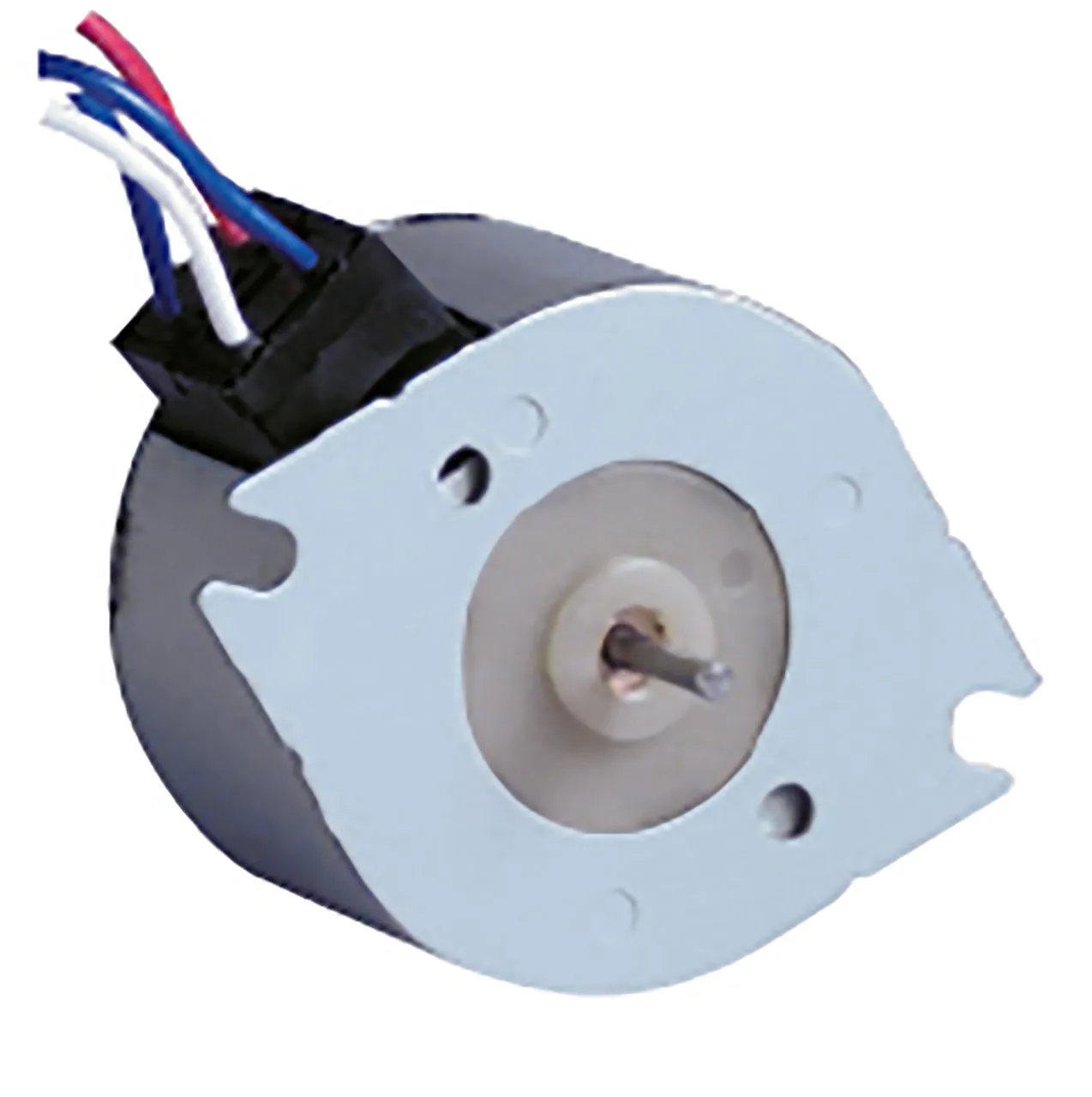

Stepper Motor 829105 Step-15D Phase-4 R-115.Ohm Reversible
Features
- Coil Type: Unipolar
- Voltage Rating: 17 VDC
- Current per Phase: 140 mA
- Step Angle: 15
- Resistance per Phase: 115 Ohms
- Holding Torque: 2.1 / 15
- Shaft Diameter: 0.079 in., 2 mm
- Shaft Length: 0.354 in., 9 mm
- Motor Size (Diameter x Length) (inch): Round - 1.409 in. Dia 35.80 mm
- Mounting Hole: 1.650 in., 42 mm
- Additional Feature: Round Shaft, Reversible Direction
- Product Type: Permanent Magnet
- Termination: Wire Leads
- Harmonized Code: 8501109990
- ECCN: EAR99
Overview
Stepper Motor 829105 Step-15D Phase-4 R-115.Ohm Reversible.

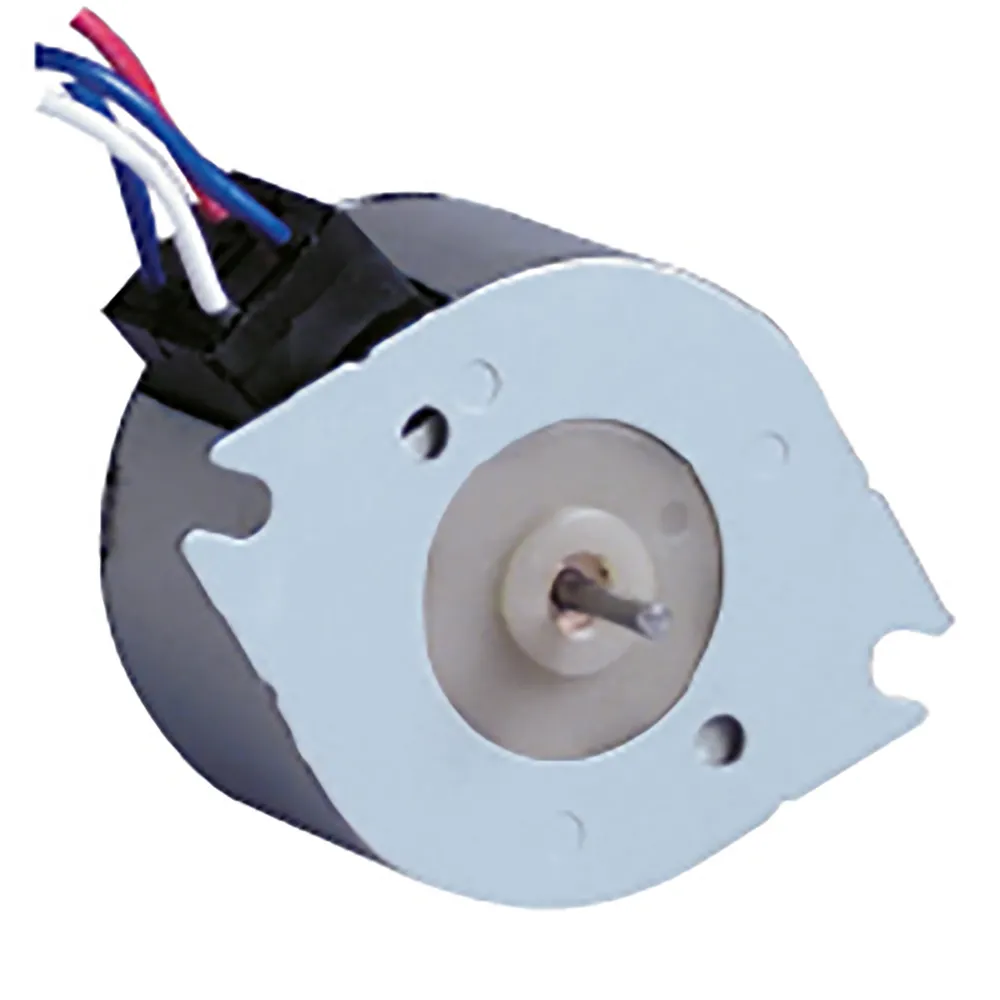

Media
Product Identification
Additional Feature:Round Shaft, Reversible Direction
Product Type:Permanent Magnet
Dimensions & Appearance
Shaft Diameter:0.079 in., 2 mm
Shaft Length:0.354 in., 9 mm
Mounting Hole:1.650 in., 42 mm
Features
Current per Phase:140 mA
Holding Torque:2.1 / 15
Step Angle:15
Coil Type:Unipolar
Motor Size (Diameter x Length) (inch):Round - 1.409 in. Dia 35.80 mm
Resistance per Phase:115 Ohms
Voltage Rating:17 VDC
Termination:Wire Leads
