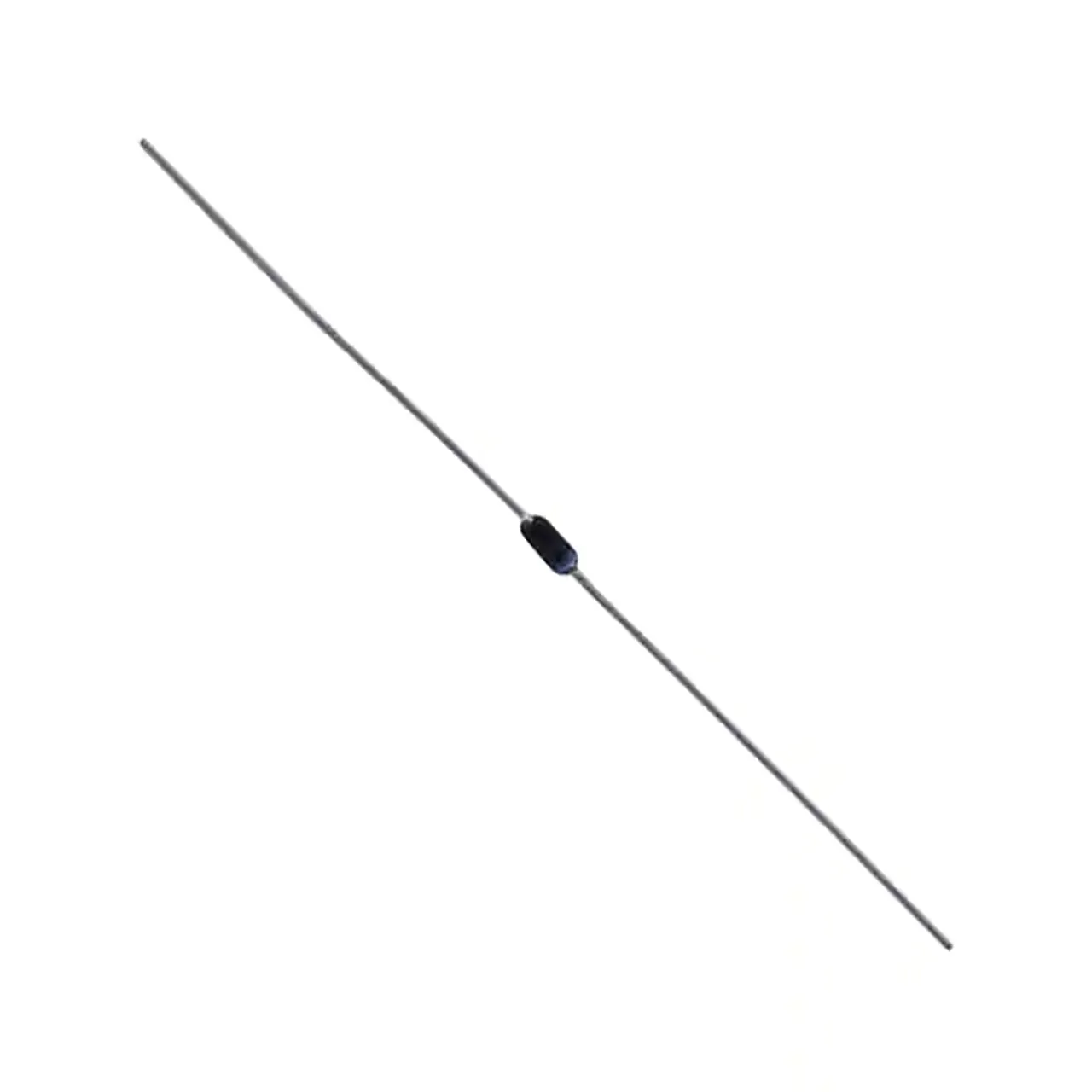

Standard Diode 100V 200mA Through Hole DO-35

Specifications

  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 100 V
  • Current - Average Rectified (Io): 200 mA
  • Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
  • Speed: Small Signal =< 200 mA (Io), Any Speed
  • Reverse Recovery Time (trr): 4 ns
  • Current - Reverse Leakage @ Vr: 5 µA @ 75 V
  • Capacitance @ Vr, F: 4 pF @ 0 V, 1 MHz
  • Mounting Type: Through Hole
  • Package: DO-204AH, DO-35, Axial
  • Operating Temperature - Junction: -65°C to 175°C
  • Base Number: 1N914

Product Identification

Family:1N914
Product Type:Switching Diode

Dimensions & Appearance

Mounting:Through Hole
Height:2.28 mm
Width:2.28 mm
Length:5.08 mm

Operating conditions

Maximum Operating Temperature:175°C
Minimum Operating Temperature:-55°C

Packaging

Packaging:Tape and Reel
Package:DO-35

Features

Maximum Reverse Current:0.025uA
Pins:2
Maximum Forward Current:0.20 A
Peak Reverse Recovery Time:4ns
Power Dissipation:0.5 W
Peak Non-Repetitive Surge Current:4 A
Repetitive Peak Reverse Voltage:100 V
Maximum Forward Voltage:1 V
Application:High-Speed
Configuration:Single
,
