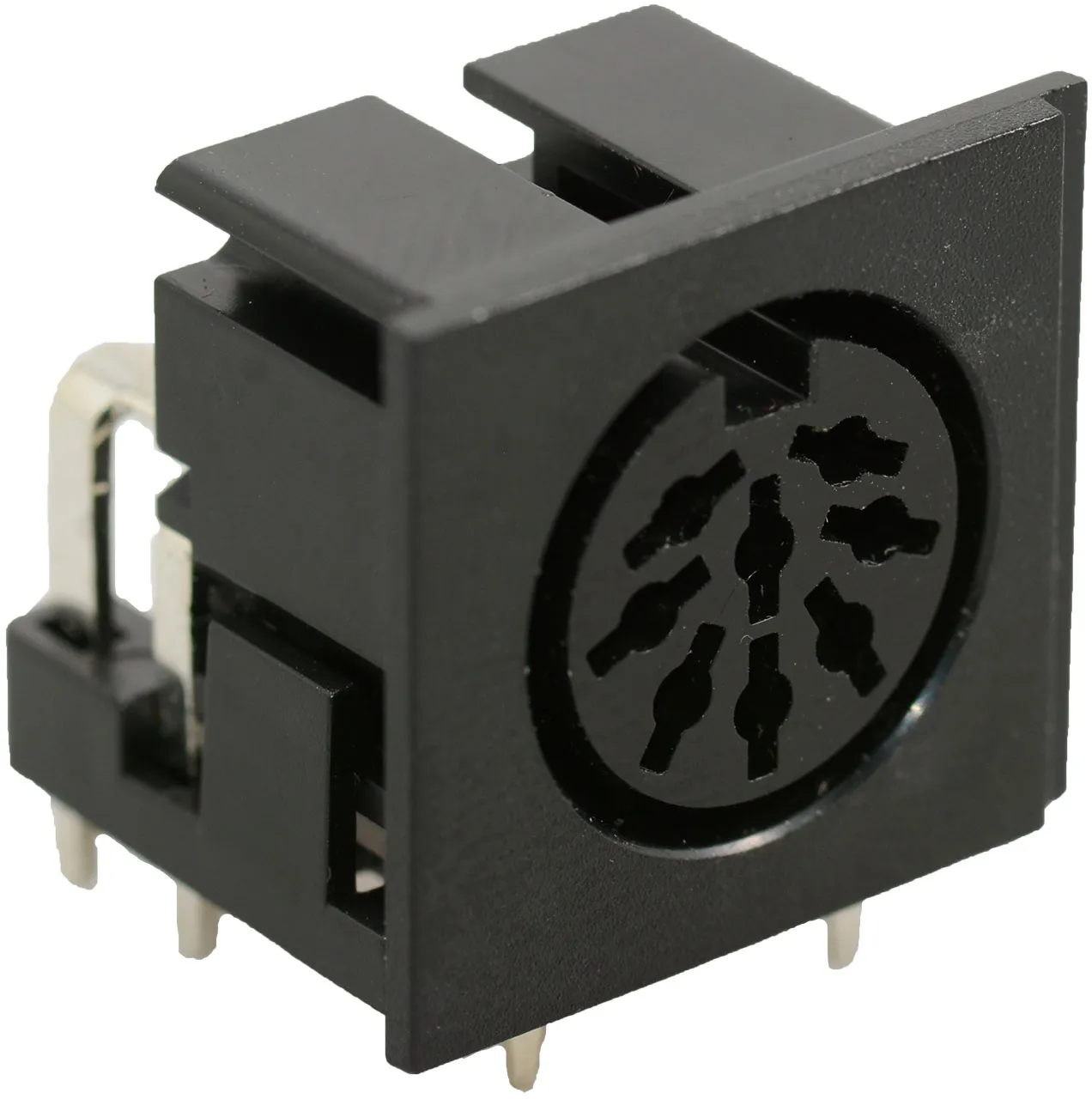

Standard DIN Socket Female 8 Pin Right Angle PC Mount

Specifications

  • Connector Type: Receptacle, Female Sockets
  • Number of Positions: 8
  • Shell Size - Insert: DIN
  • Mounting Type: Through Hole, Right Angle
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Orientation: Keyed
  • Ingress Protection: N/A
  • Features: Unshielded
  • Voltage - Rated: 100VAC, 12VDC
  • Current Rating: 1A, 2A
  • Operating Temperature: -40°C to 85°C

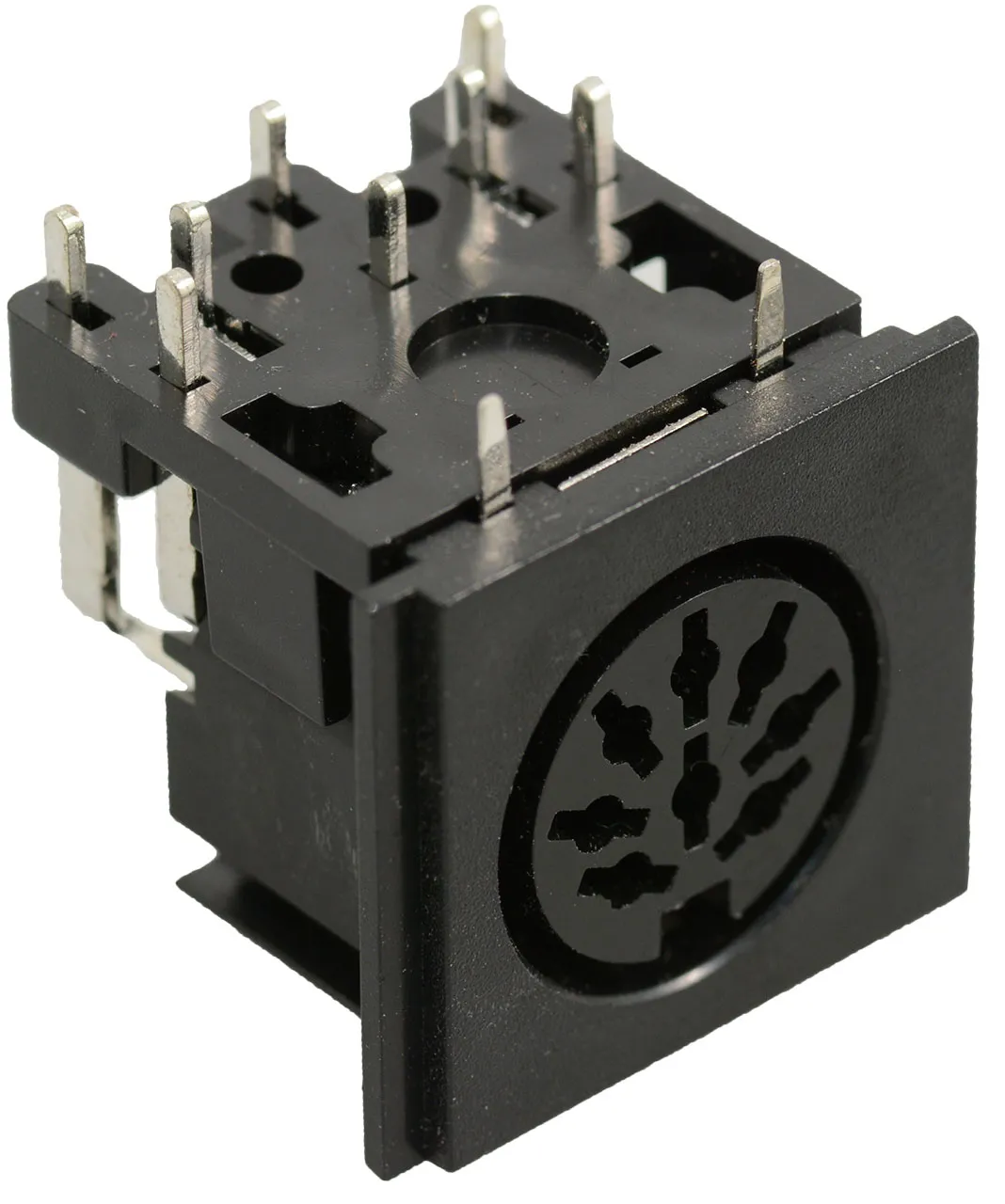

Bottom side of SDS-80J-10mm 8-Position DIN Connector

Dimensions & Appearance

Color:Black
Mounting Type:Through Hole, Right Angle

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Features

Contact Gender:Female
Connector Style:DIN (270 Degree)
Contact Finish:TIN
Shell Material:Polybutylene Terephthalate (PBT)
Number of Contacts:8
Shielding:Unshielded
Connector Type:Socket
Voltage Rating:100 VAC
Current Rating:2A
Termination:Solder
,
