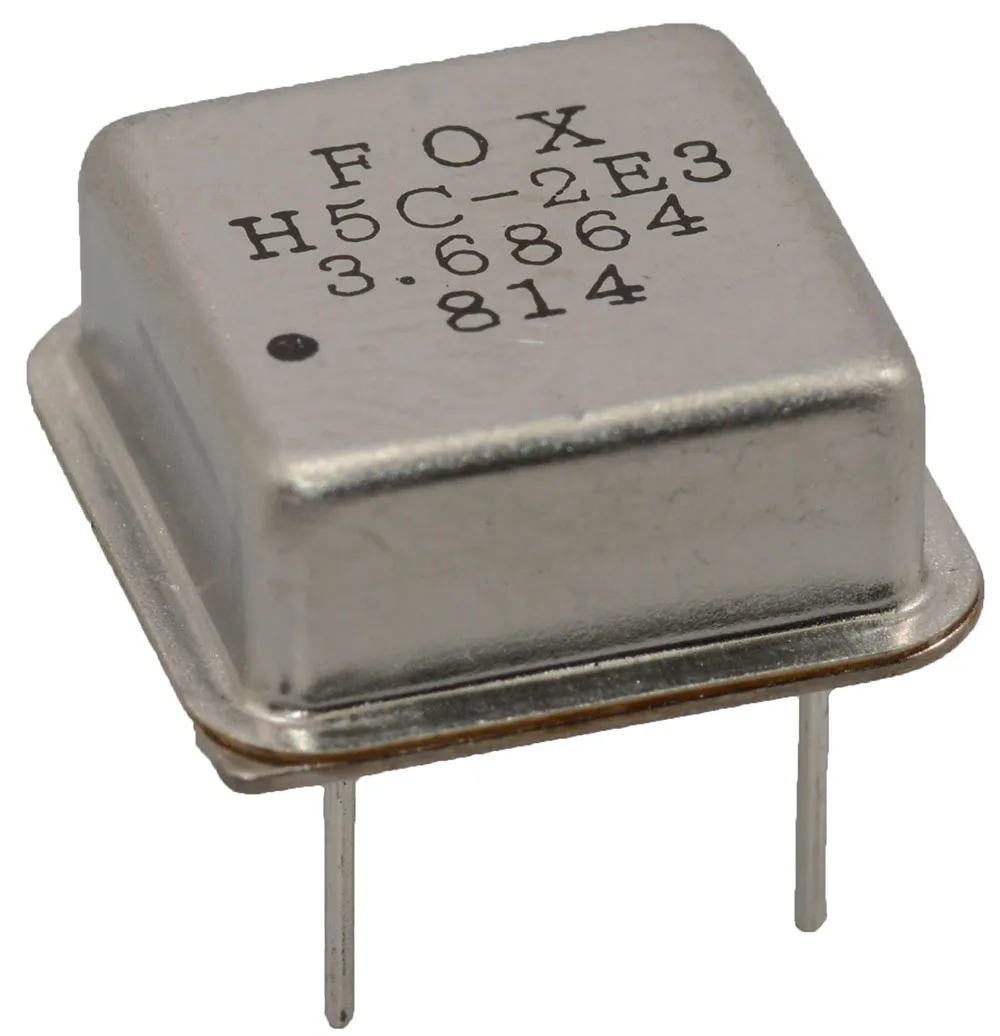

Standard Clock Oscillator 3.6864MHz Half-Can DIP-8

Specifications

  • Series: H5C-2ELF
  • Product Type: Clock Oscillators
  • Type: Tri-State Enable/Disable 5 V Oscillator
  • Output Format: CMOS
  • Frequency: 3.6864 MHz
  • Frequency Stability: 100 PPM
  • Load Capacitance: 50 pF
  • Operating Supply Voltage: 5 V
  • Current Rating: 40 mA
  • Duty Cycle - Max: 55 %
  • Supply Voltage - Min: 4.5 V
  • Supply Voltage - Max: 5.5 V
  • Termination Style: Radial
  • Operating Temperature: 0°C to 70°C
  • Length: 13.2 mm
  • Width: 13.2 mm
  • Height: 6 mm
  • Package: DIP-8
  • Mounting Style: Through Hole
  • Lead Spacing: 0.3 in

Product Identification

Product Type:TTL Oscillator

Input

Input Voltage:3.3 VDC
Maximum Input Current:70 mA

Features

Device Socket Type:8 Pin (PN: 112206)
Holder Type:Half Can
Rise & Fall Time (Tr,Tf):6 ns
Frequency Stability:100 ppm
Frequency:3.6864 MHz
,
