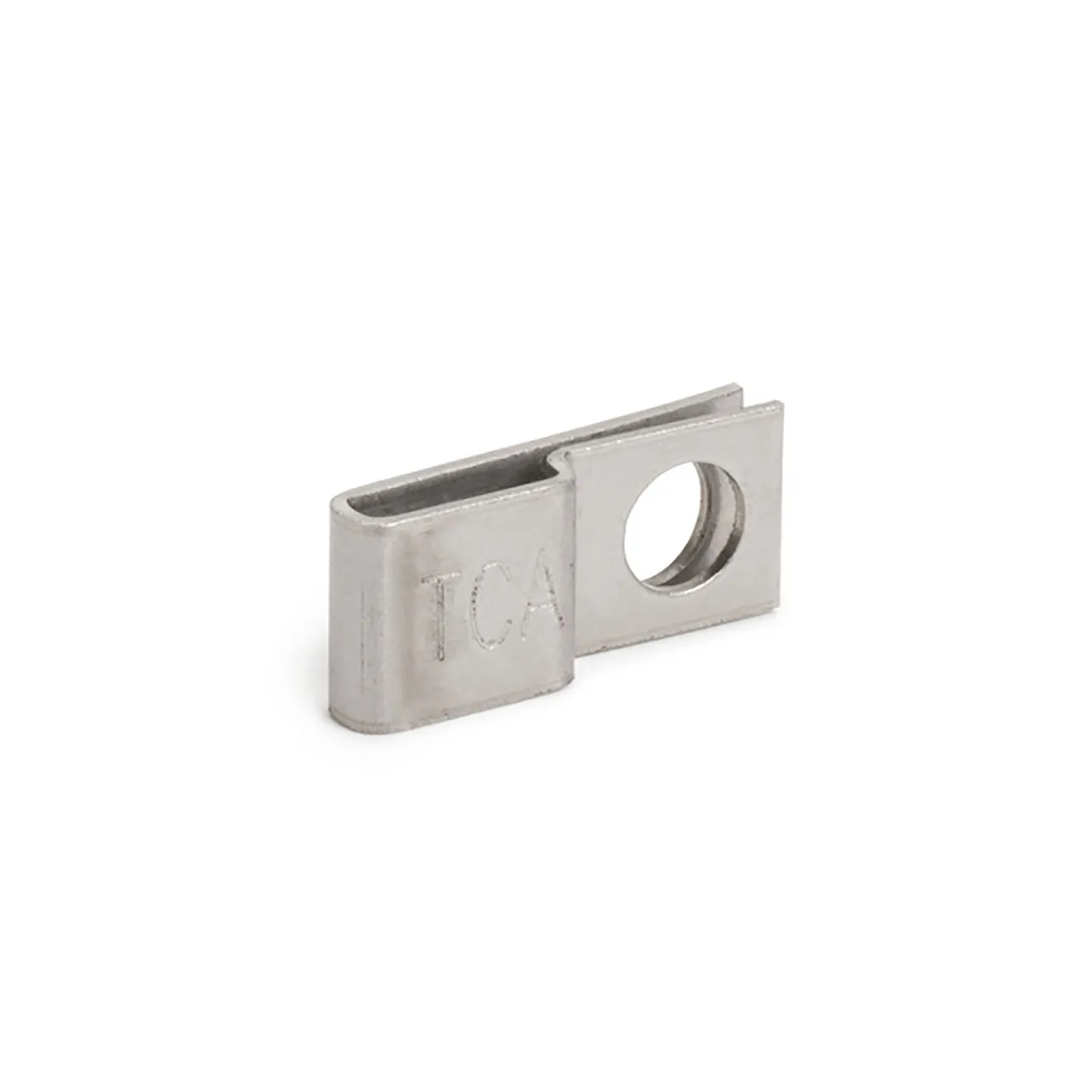

Stainless Steel Tie Mount, 0.21" Hole Dia, 0.39" Max Tie Width, Grade 316 SST, ML, 100 per Package

Features

• The 316 grade stainless steel offers excellent resistance to salt spray, corrosion, weather and chemicals. Secures with a single screw for quick installation. Stainless steel is nonflammable, offering added safety in regulated applications.
• Product Type: Screw Mounting Bases

Technical Specifications

• Material: Stainless Steel (SS316L)
• Operating Temperature: -112°F to +1000°F (-80°C to +538°C)
• Color: Metal (ML)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Cable Tie Width Max. (Imperial): 0.39"
• Fixation Method: Screw Mounting and Rivet
• Focused Markets and Industries: Aerospace Industry; Chemical Industry; Defense Industry; Electrical Installation; Electronics Industry; Food Industry; Mining Industry; Offshore Industry; Rail Transportation Sector; Shipbuilding; Solar Energy Sector; Telecommunication; Wind Energy Sector
• Height H (Imperial): 0.18"
• Height H (Metric): 4.5 mm
• Length L (Imperial): 0.91"
• Length L (Metric): 23.0 mm
• Mounting Hole Diameter D (Imperial): 0.21"
• Mounting Hole Diameter D (Metric): 5.3 mm
• Mounting Hole Diameter D Max. (Metric): 5.3 mm
• Mounting Hole Diameter D Min. (Metric): 5.3 mm
• Mounting Screw Type: M5 Screw
• Tensile Strength Min. (kgf): 0.00 kgf
• Weight (Lbs) per 1 Content Unit without Packaging: 0.00702833691256
• Width W (Imperial): 0.40"
• Width W (Metric): 10.2 mm
• CE Certified: No
• CSA Certified: No
• Flammability: Non-burning
• Flammable (Yes/No): No
• Halogen Free: Yes
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306346265

Overview

Stainless steel P-mounts provide a robust and extremely durable mounting solution for a wide range of applications. With a 10 mm slot width and either a 4 mm, 5 mm or 6 mm fastener hole, this two-way mount can be installed quickly and easily with a single screw or bolt, providing excellent performance and a high pull force. Designed for use with MBTS(-S), MBTH(-S) and MBTSFC stainless steel ties, or 18 through 120 pound nylon cable ties to provide stability when securing bundles.
