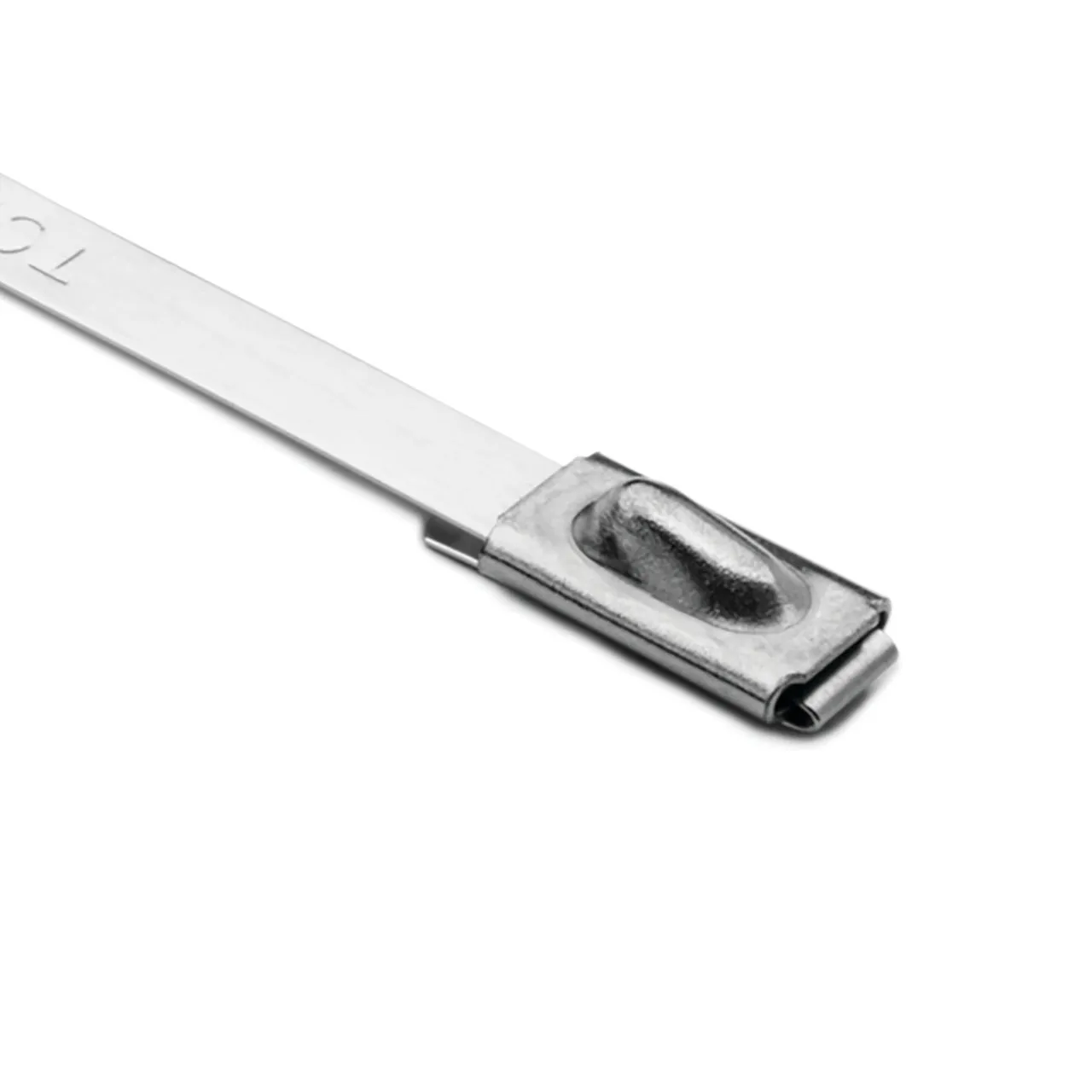

Stainless Steel Tie, 5" Long, 202lb Tensile Strength, SS304, Metal, 100 per Package

Features

• The 304 grade stainless steel offers excellent resistance to corrosion, weather and chemicals. Self-locking, ball bearing mechanism ensures reliable performance and easy insertion. Fully enclosed head prevents debris from interfering with locking mechanism. High tensile strength for dependability and safety in heavy duty applications.
• Product Type: Stainless Steel Cable Ties

Technical Specifications

• Material: Stainless Steel (SS304)
• Operating Temperature: -112°F to +1000°F (-80°C to +538°C)
• Color: Metal (ML)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 0.98"
• Bundle Diameter Max. (Metric): 25.0 mm
• Bundle Diameter Min. (Imperial): 0.47"
• Bundle Diameter Min. (Metric): 12.0 mm
• Cable Tie Closure: ball bearing lock
• Focused Markets and Industries: Automotive Industry; Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Electronics Industry; Shipbuilding; Defense Industry
• Length L (Imperial): 5.0"
• Length L (Metric): 127.0 mm
• Recommended Application Tool: 110-09950; 110-95000; 110-95300; 110-95350
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 202 lbs
• Tensile Strength Min. (kgf): 91.77 kgf
• Tensile Strength Min. (Metric): 900 N
• Thickness T (Imperial): 0.01"
• Thickness T (Metric): 0.3 mm
• Variant: Not Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0.004629707502
• Width W (Imperial): 0.18"
• Width W (Metric): 4.6 mm
• CE Certified: No
• CSA Certified: No
• Flammability: Non-burning
• Flammable (Yes/No): No
• Halogen Free: Yes
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306203162

Overview

HellermannTyton’s Stainless Steel Ties are designed with a ball bearing locking mechanism to ensure high tensile strength and easy insertion when securing hoses, cables, pipes and more. Stainless steel provides protection when used in corrosive environments, fire resistance and temperature extremes.
