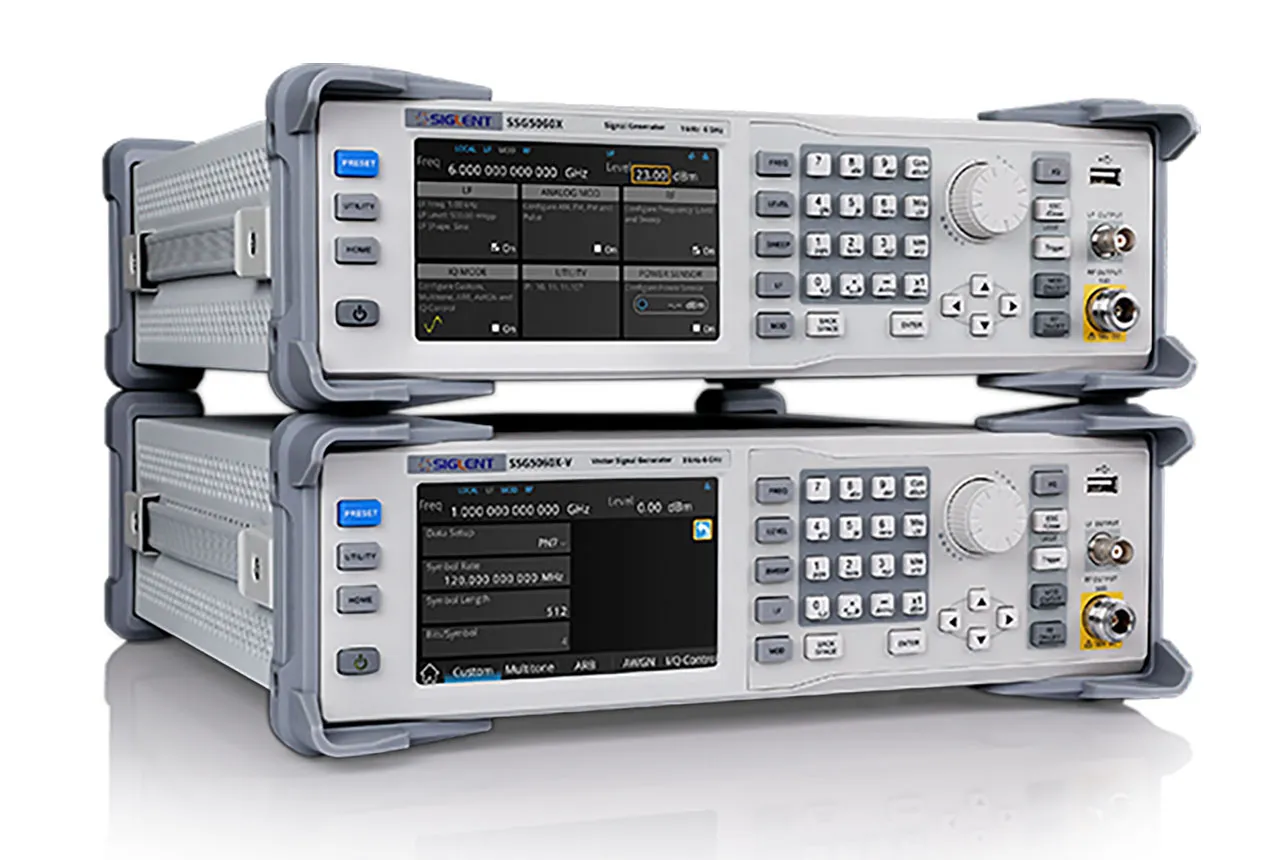

SSG5060X Series of Signal Generators 6 GHz NO External I/Q Modulation

SSG5000X RF Signal Generators can generate analog, vector signals, and have a frequency range of 9 kHz to 6 GHz. They feature the industry-leading performance in phase noise, spectral purity, bandwidth, EVM, output power. The internal IQ modulation generator and waveform playback function make it easy to create even the most complex signal types. SSG5000X generators also cover the most important RF band for digital wireless communications and include standard waveform files. The SIGLENT SSG5000X Signal Generators are powerful and cost effective sources that are ideal for R&D, education, and manufacturing.

Key Features

• Frequency Range: CW MODE 9 kHz-6 GHz
• Amplitude Resolution: 0.01 dB
• Phase Noise: -120 dBc/Hz @1 GHz, offset 20 kHz (typ.)
• External I/Q Modulation: NO
• Frequency up to 6 GHz
• 001 Hz frequency setting resolution
• Maximum output power up to +26 dBm (typ.)
• User-programmable flatness correction
• Provides AM, FM, and PM analog modulation with internal, external, or Int+Ext source
• Single pulse, double pulse, and pulse train generator (option)
• Internal IQ modulation with 150 MHz modulation bandwidth with perfect in-factory calibration
• Built-in digital communication standard waveform sample files such as 5G-NR, LTE, WCDMA, WLAN, Blue-Tooth, CDMA
• Internal Custom mode to generate common IQ signals such as QAM, FSK, ASK, MSK
• Analog differential I/Q outputs
• External analog I/Q input
• USB-power meter measurement
• 5-inch TFT capacitive touch screen, mouse, and keyboard support
• Web browser remote control on PC and mobile terminals
• The standard interface includes a USB Host, USB Device (USB TMC), and LAN (VXI-11, Socket, Telnet). Optional interface: GPIB

Support and Resources

• Software (off-site)
• Firmware (off-site)
• Drivers (off-site)
• Scripts and Others (off-site)
• Documents (off-site)
• Operating Tips (off-site)
• Videos (off-site)

Upgrade Options

Pulse train generator (software)

Upgrade IQ bandwidth to 150 MHz (software)
