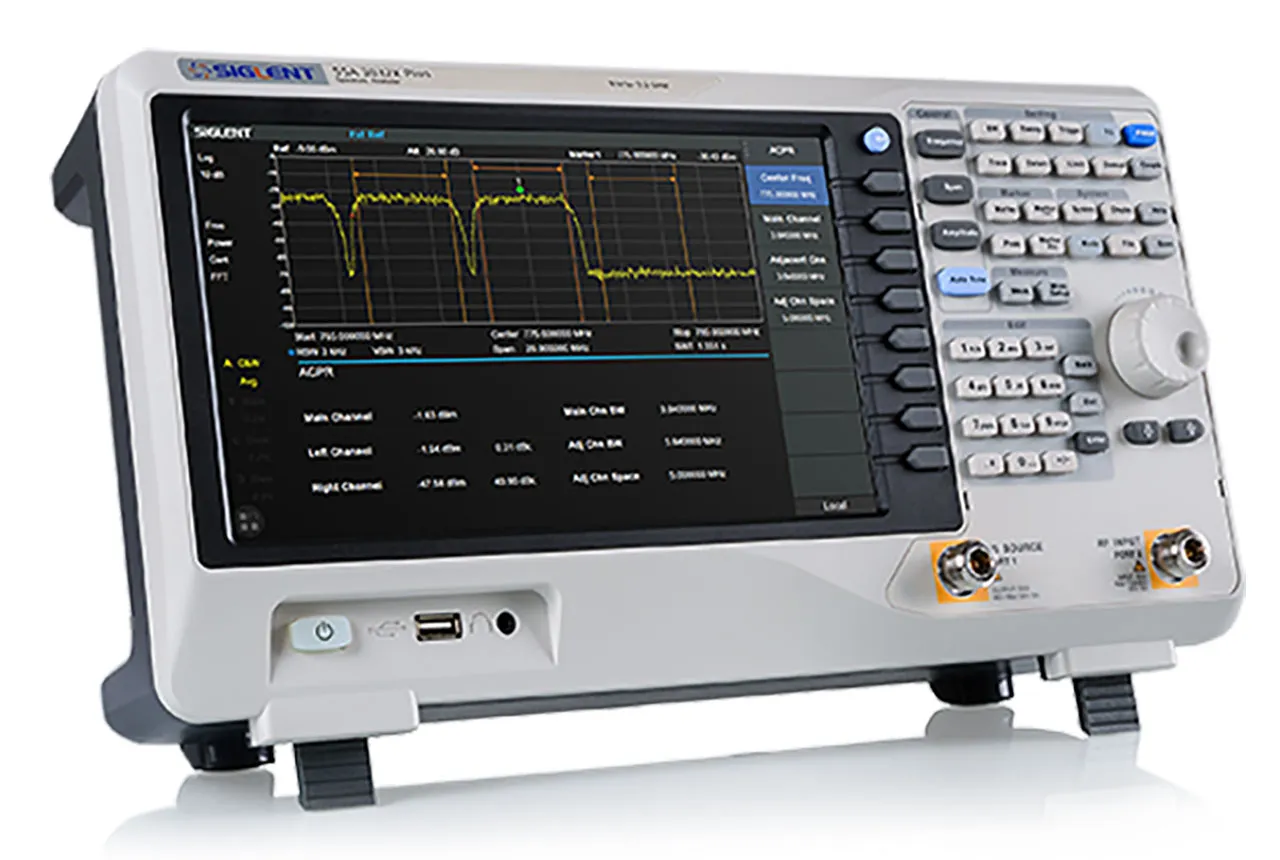

SSA3075X Plus Series Spectrum Analyzers 7.5 GHz

SIGLENT SSA3000X Plus Spectrum Analyzers are powerful and flexible tools for RF signals and network analysis. With a frequency range up to 7.5 GHz, the SSA3000X analyzers deliver reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test.

SSA3000X Plus Spectrum Analyzers' applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

Key Features

Frequency Range: 9 kHz~7.5 GHz

Resolution Bandwidth (RBW): 1 Hz~3 MHz

Phase Noise: < -98 dBc/Hz

Total Amplitude Accuracy: < 0.7 dB

Display Average Noise Level (DANL): -165 dBm/Hz

-165 dBm/Hz Displayed Average Noise Level (Typ.)

-98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)

Level Measurement Uncertainty < 0.7 dB (Typ.)

1 Hz Minimum Resolution Bandwidth (RBW)

Preamplifier Standard

Tracking Generator (Included)

Support and Resources

• Software (off-site)
• Firmware (off-site)
• Drivers (off-site)
• Scripts and Others (off-site)
• Documents (off-site)
• Operating Tips (off-site)
• Videos (off-site)

Upgrade Options

• EMI measurement kit; Filter Bandwidth: 200 / 9k / 120k / 1M (software)
• Advanced measurement kit ,including ACPR, CHPower, OBW and so on. (software)
• Digital Modulation Analysis Function, including ASK, FSK, MSK, PSK, QAM (software)
• Analog Modulation Analysis Function, including AM, FM (software)
