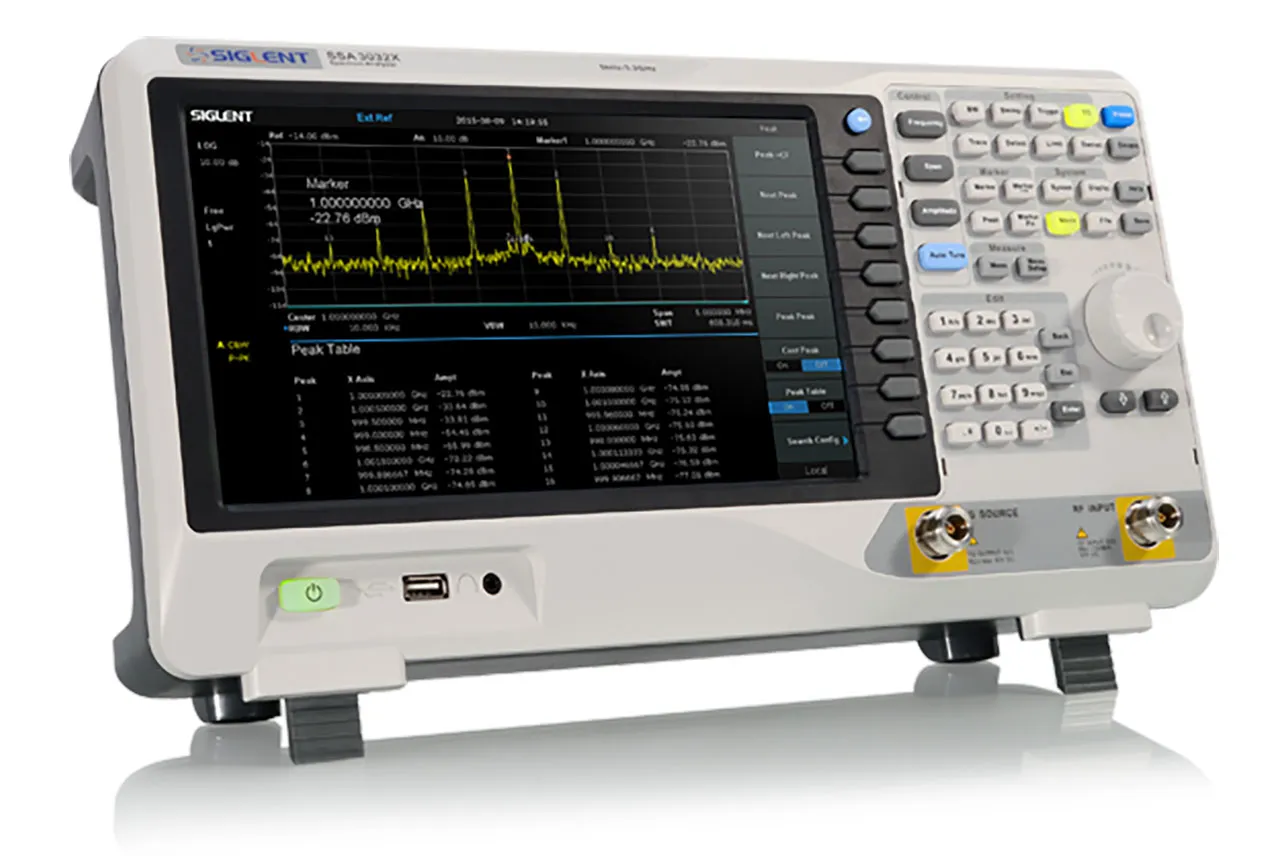

SSA3032X Series Spectrum Analyzers 3.2GHz

Siglent SSA3000X Spectrum Analyzers offer a frequency range of 9 KHz to 3.2 GHz. With their light weight, small size, and friendly user interface, the SSA3000X present a large, bright, easy to read display, powerful and reliable automatic measurements, and plenty of impressive features.

SSA3000X Spectrum Analyzers' applications include research and development, education, production, maintenance, and pre-compliance testing.

Key Features

Frequency Range: 9 kHz to 3.2 GHz

Resolution Bandwidth (RBW): 1 Hz to 1 MHz, in 1-3-10 sequence

Phase Noise: < -98 dBc/Hz @ 1 GHz, 10 kHz offset

Total Amplitude Accuracy: ±0.7 dB

Display Average Noise Level (DANL): -161 dBm/Hz, Normalized to 1 Hz (typ.)

Standard Preamplifier

Standard Tracking Generator Kit (Included)

10.1 lnch WVGA (1024 x 600) Display

Support and Resources

• Software (off-site)
• Firmware (off-site)
• Drivers (off-site)
• Scripts and Others (off-site)
• Documents (off-site)
• Operating Tips (off-site)
• Videos (off-site)

Upgrade Options

Tracking Generator kit (software)

EMI measurement kit (software)

Advanced measurement kit, including ACPR, CHPower, OBW and so on. (software)
