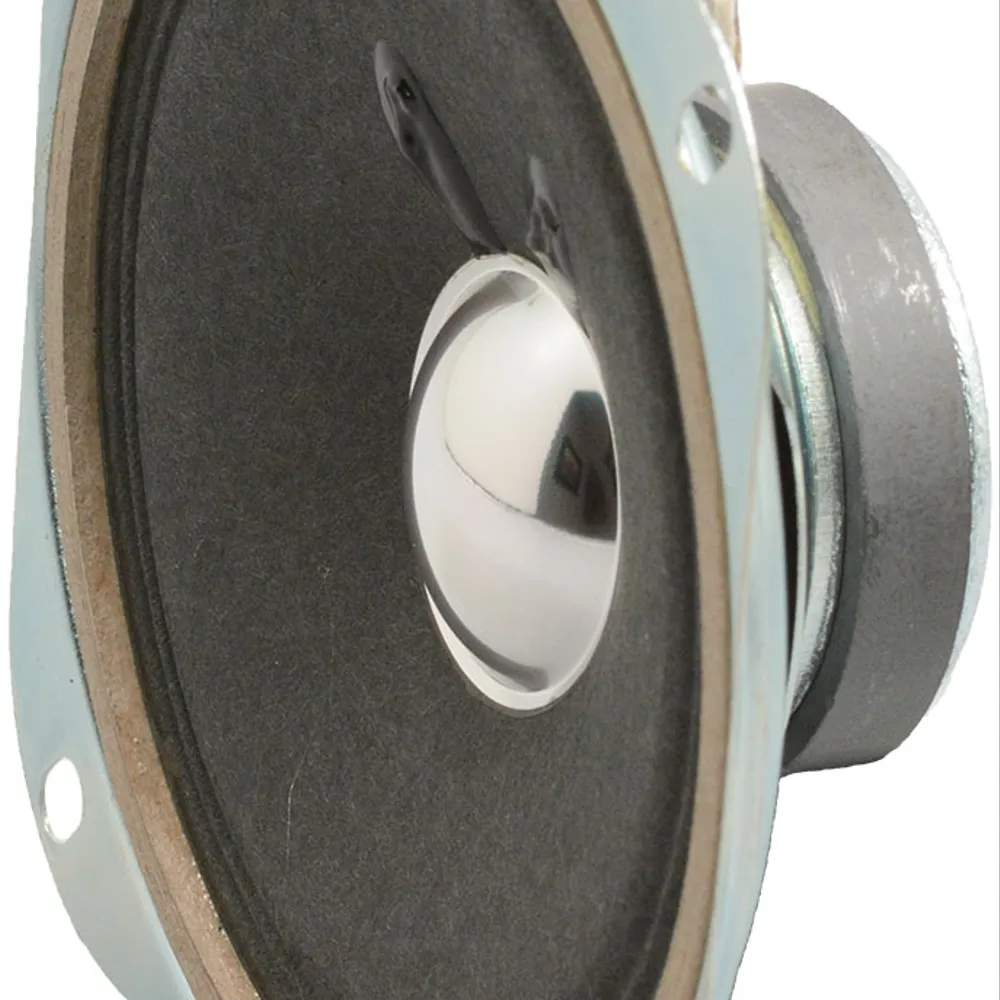

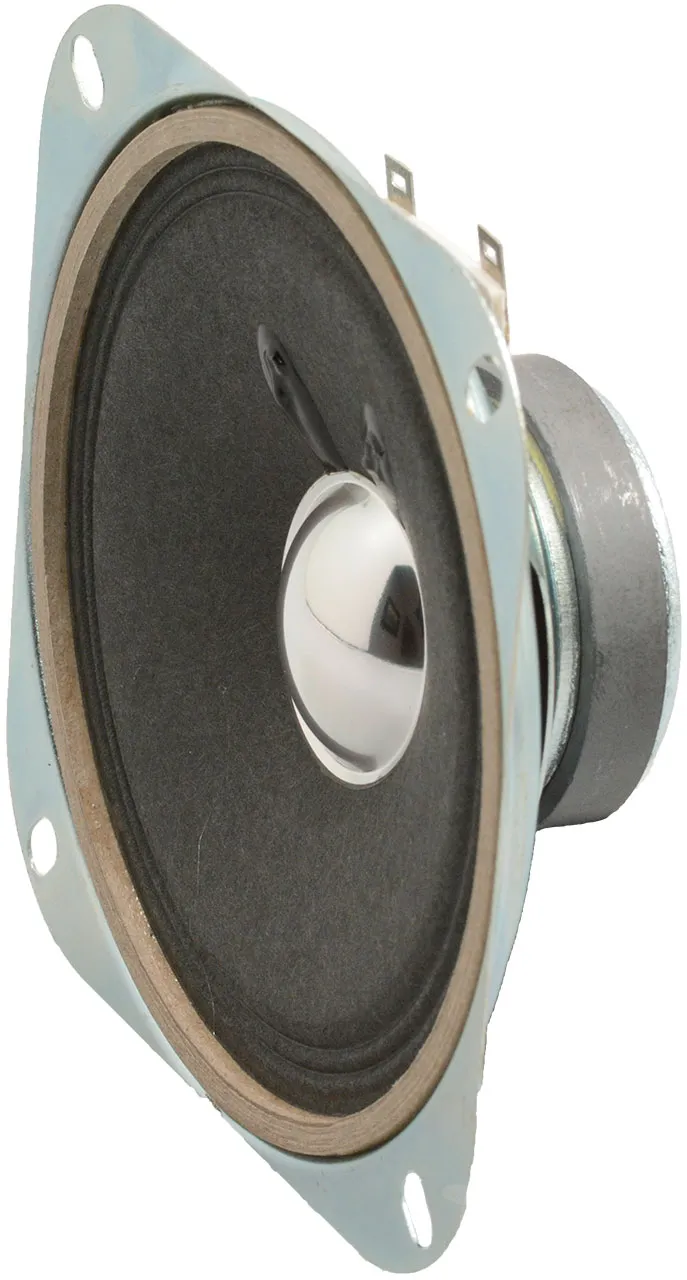

Square Ferrite Speaker

Features

  • Paper diaphragm
  • Large magnet
  • Anodized metal surfaces
  • Braided copper voice coil leads
  • Pre-tinned speaker lugs
  • Input Power: 6.0W nominal / 8.0W maximum
  • Sound output: 97dB
  • Frequency: 800-10,000Hz
  • Impedance: 8Ω
  • Magnet size: 1.8"Dia. x 0.5"H
  • Speaker size: 4.0"Dia. x 1.4"D

Product Identification

Product Type:Square Ferrite Speaker

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Depth:1.4 in.
Width:4 in.
Length:4 in.

Input

Nominal Input Power (W):6
Input Power (max) (W):8

Output

Output:97 dB

Features

Magnet Material:Ferrite
Impedance:8 Ohm
Termination Method:Solderable Lug
Magnet Size (Diameter x H) (inches):1.8 x 0.5
Frequency Range:800 Hz to 10000 Hz
,
