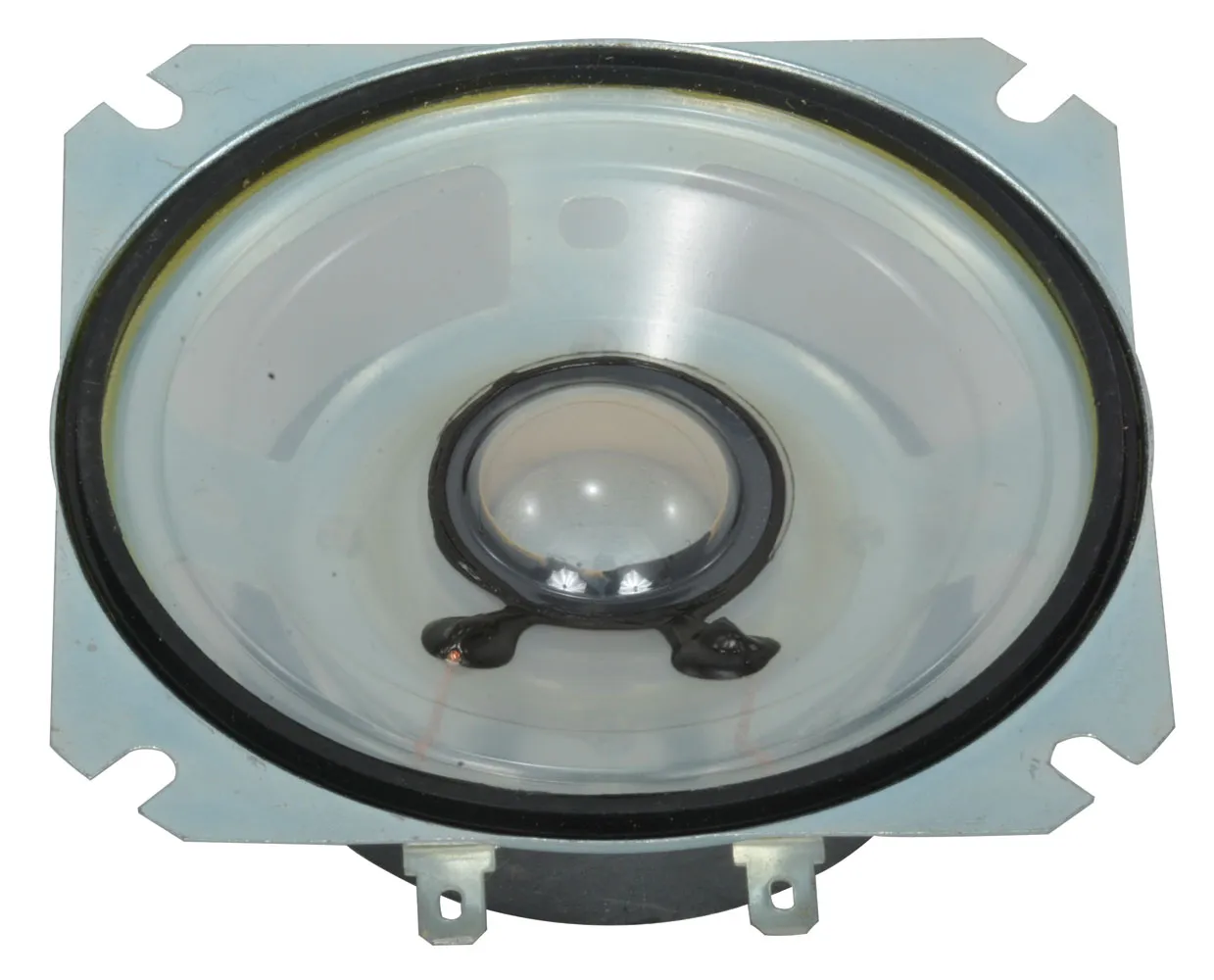

Speaker Square Ferrite 3.4" Dia. 8Ω 12 Watt 800 Hz - 10 kHz

Specifications:

  • Manufacturer: Arndt
  • Manufacture#: BLS86-2-08H
  • Impedance: 8Ω
  • Sound Pressure Level (SPL): 87 ± 3 dB
  • Frequency Range: 800 Hz - 10 kHz
  • Rated Input Power: 6 Watt
  • Maximum Input Power: 12 Watt
  • Magnet Size: 1.2" Dia. x 1.2" H

Dimensions & Appearance

Depth:1.21 in.
Diameter:N/A
Width:3.4 in.
Length:3.4 in.

Input

Nominal Input Power (W):6
Input Power (max) (W):12

Output

Output:87 dB

Features

Impedance:8 Ohm
Termination Method:Solderable Lug
Magnet Size (Diameter x H) (inches):2.30 x 0.40
Frequency Range:800 Hz to 10000 Hz
,
