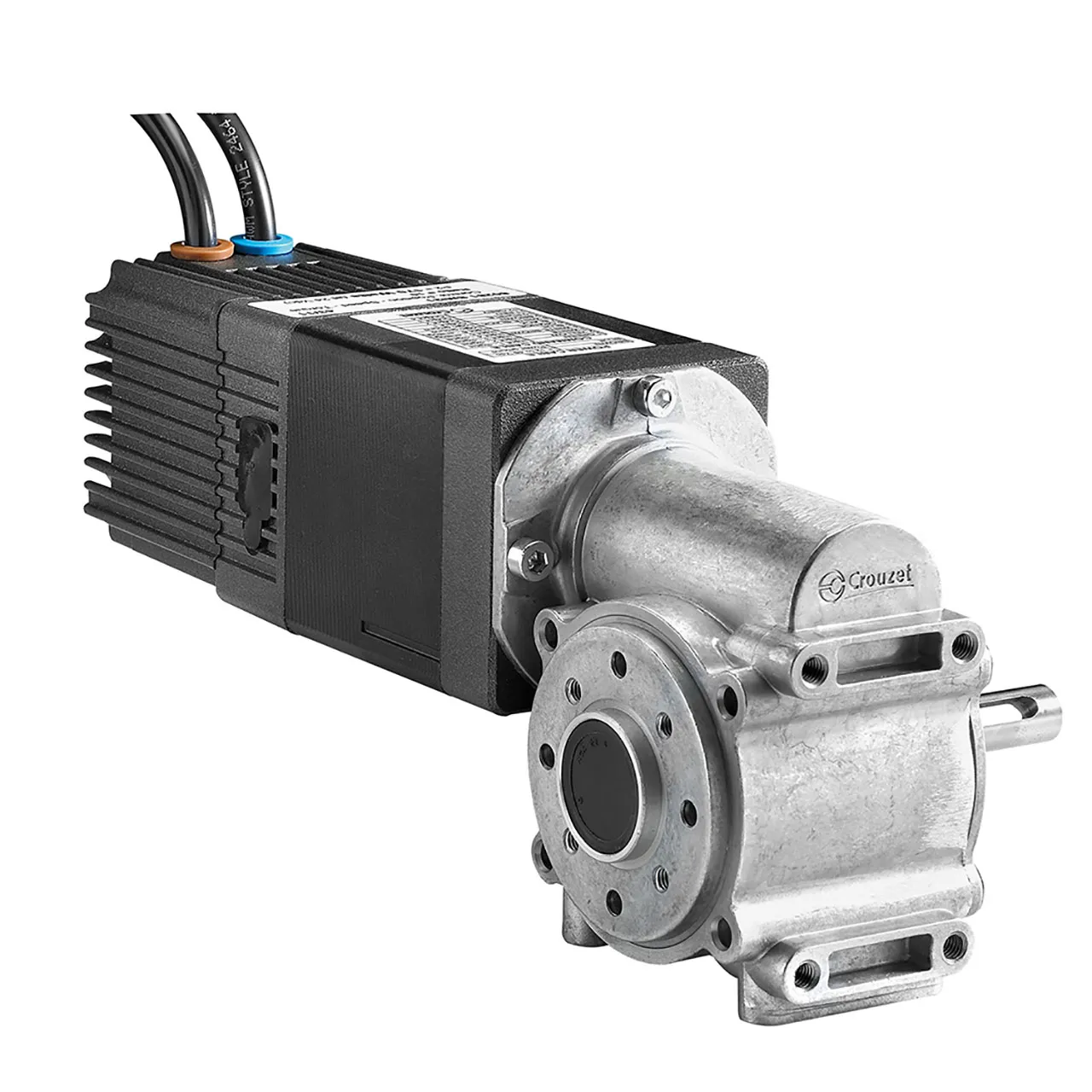

SQ57 Motor 150W 12-48VDC + Drive SMi21 + Gearbox Rad10 Ratio 10
Features
- Product Type: DC Motor
- Manufacturer Series: DCmind, 80281, SMi21
- Function: Gearmotor
- Motor Drive Type: Brushless (BLDC)
- Voltage Rating: 12 VDC to 48 VDC
- Speed: 238 RPM
- Holding Torque: 383.8 oz-in (2710 mNm)
- Power Rating: 150W
- Shaft Diameter: 0.394" (10.00mm)
- Shaft Length: 1.319" (33.50mm)
- Additional Feature: Integrated Controller
- Gear Ratio: 10
- Maximum Operating Torque: 1416 oz-in (10000 mNm)
- Minimum Operating Temperature: -20°C
- Maximum Operating Temperature: 70°C
- Harmonized Code: 8501310099
- ECCN: EAR99
Overview
SQ57 Motor 150W 12-48VDC + Drive SMi21 + Gearbox Rad10 Ratio 10.
