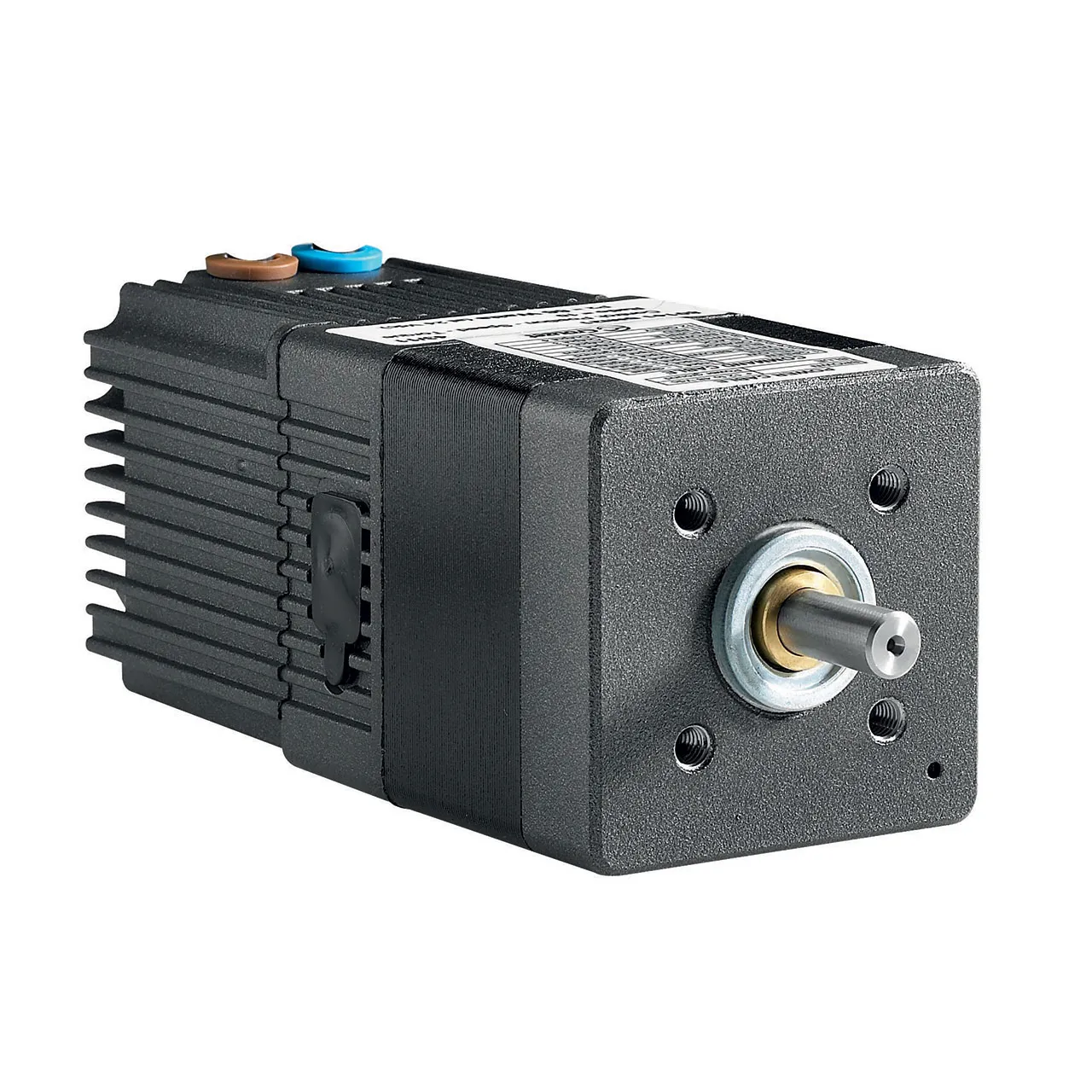

SQ57 Motor 150W 12-32VDC + Drive TNi21 PWM
Features
- Product Type: DC Motor
- Manufacturer Series: DCmind, 80280, TNi21
- Function: Standard
- Motor Drive Type: Brushless (BLDC)
- Voltage Rating: 12 ~ 32 VDC
- Speed: 3000 RPM
- Holding Torque: 69.4 oz-in (490 mNm)
- Power Rating: 170W
- Size: Square - 2.244" x 2.244" (57.00mm x 57.00mm)
- Shaft Diameter: 0.315" (8.00mm)
- Shaft Length: 0.984" (25.00mm)
- Termination Style: Cable with Connector
- Additional Feature: Integrated Controller
- Maximum Operating Torque: 141.6 oz-in (1000 mNm)
- Minimum Operating Temperature: -30°C
- Maximum Operating Temperature: 70°C
- Harmonized Code: 8501310099
- ECCN: EAR99
Overview
SQ57 Motor 150W 12-32VDC + Drive TNi21 PWM.
