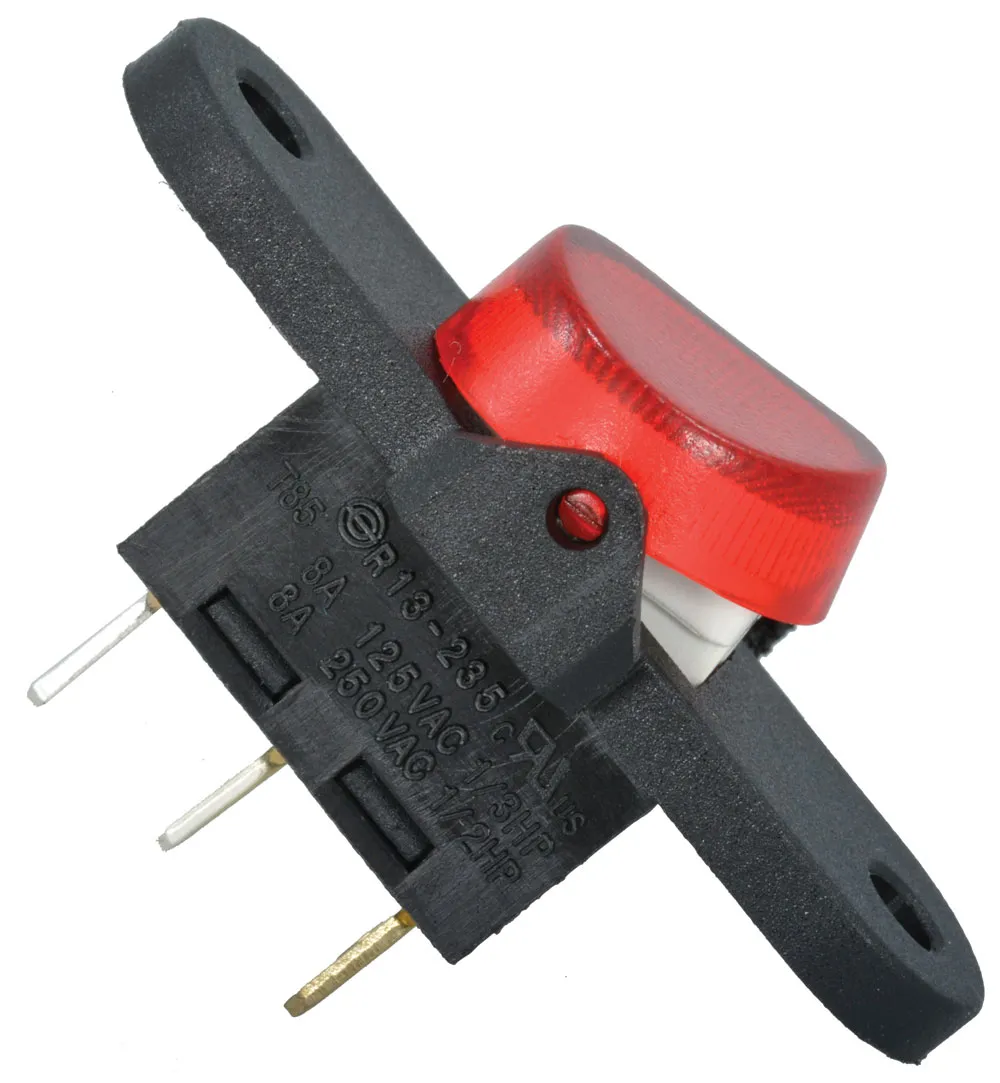

SPST ON-OFF Panel Mount Red Illuminated Rocker Switch

Specifications

  • Contact Form: .187" quick connect
  • Contact Rating: 8 Amp @ 125 Volt & 8 Amp @ 250 Volt
  • Dimensions (L X W X D) inches: .72 x .47 x .67
  • Number of Pins: 3
  • Terminal Type: .187" quick connect

Product Identification

Product Type:Rocker Switch

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Body Color:Black
Mounting Style:Panel Mount
Depth:0.484 in.
Width:0.475 in.
Height:1.357 in.
Length:1.73 in.

Features

Pins:2
Termination Style:0.187" Quick Connect
Illumination Type:Neon Lamp
Switch Function:ON-OFF
Actuator Length:0.22 in.
Actuator Type:Illuminated Rocker, Oval
IP Rating:none
Color - Actuator/Cap:Red
Contact Form:SPST
Current Rating:8A @ 125VAC, 8A @ 250VAC
,
