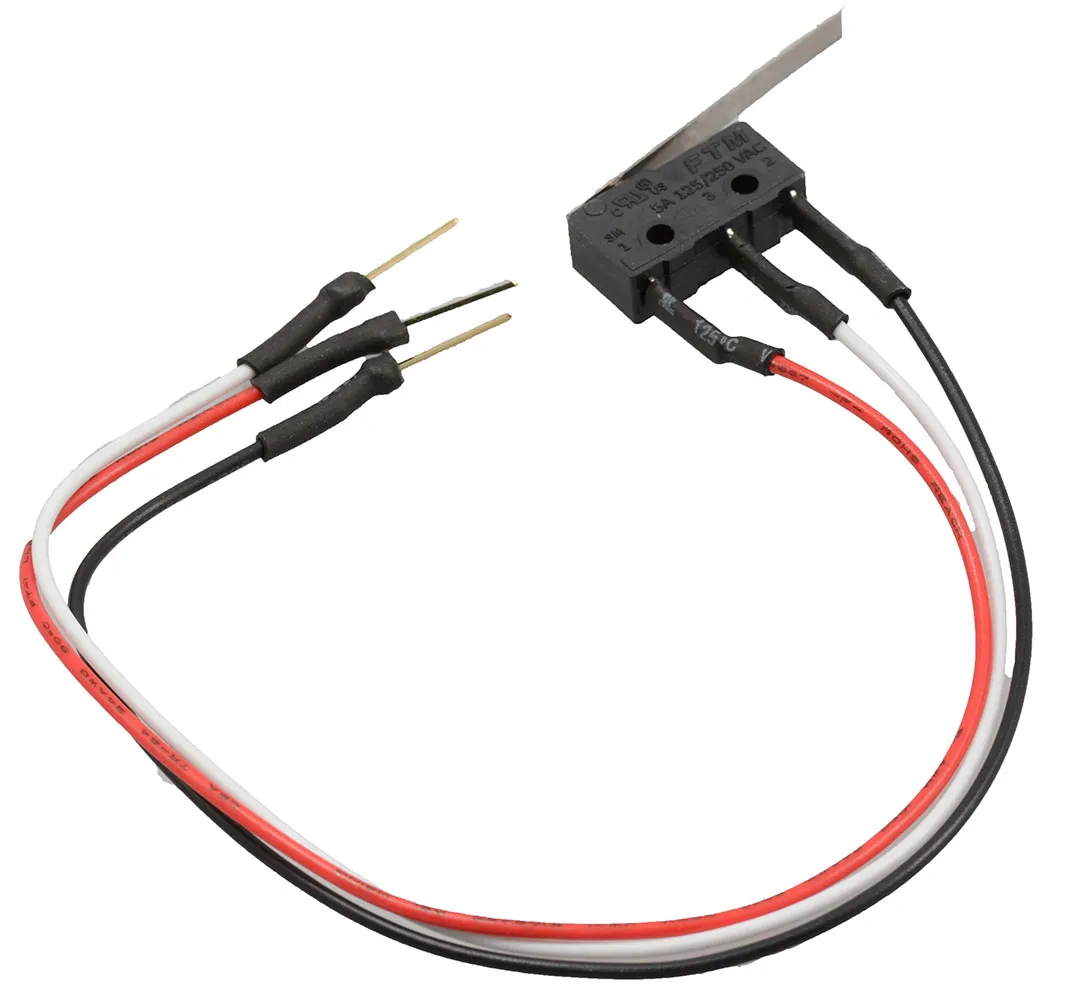

SPST Basic Subminiature Switch with Breadboard-Ready Wire Leads

Features

  • Contact form: SPST
  • Size: 0.78"L x 0.25"W x 0.42"H
  • Actuator type: 1.3"L straight lever
  • Contact rating: 5A @ 125/250VAC
  • Termination: (3) 8" wires with breadboard-ready pins (0.025" square posts)
  • Wire Connections: (1) red - common; (2) black - N.C.; (3) white - N.O.

Alternate Images

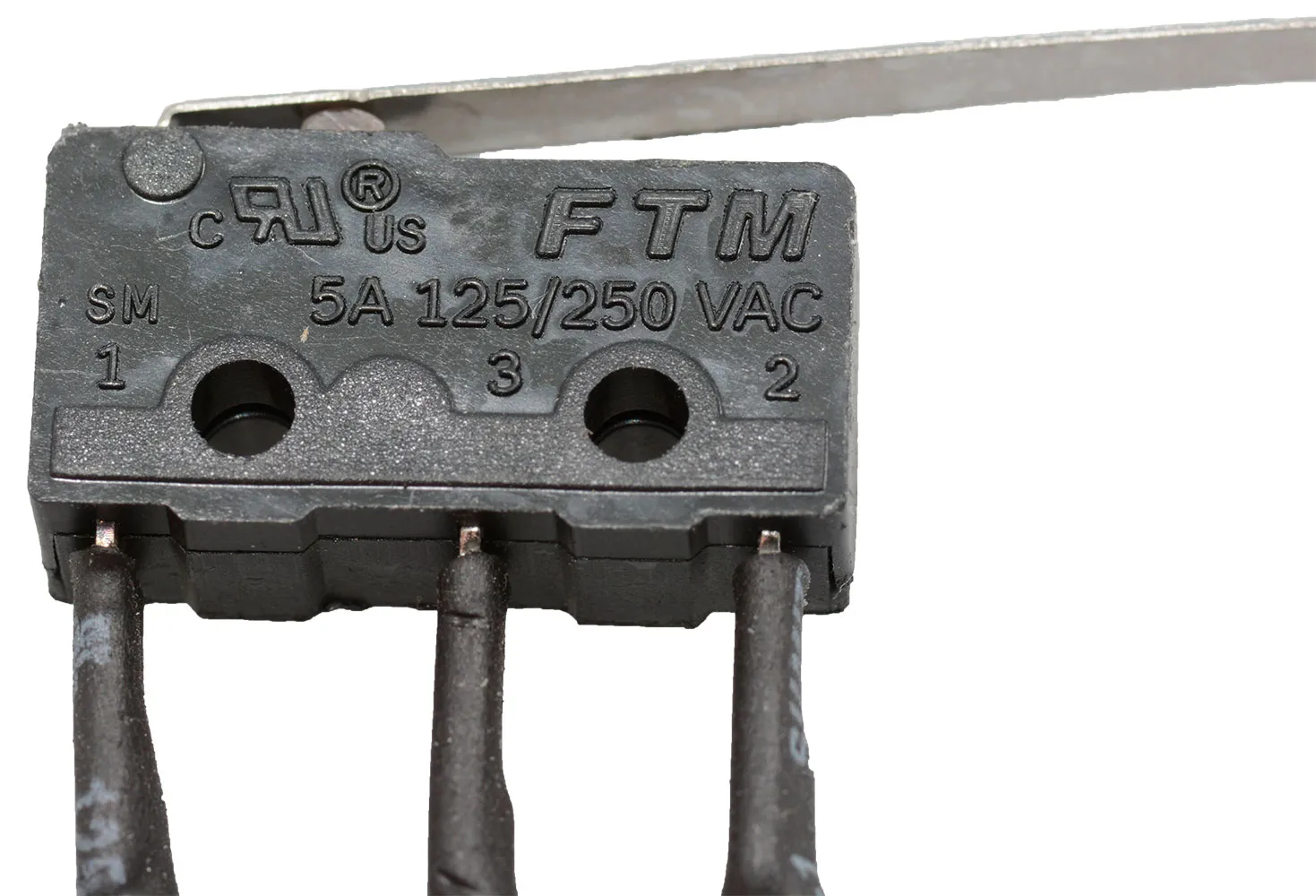

Close-up of side pin numbers
Close-up of side pin function

Product Identification

Product Type:Limit Switch

Compliance

RoHS Status:ROHS Compliant

Features

Terminal Type:Breadboard-ready 8" wire leads
Actuator Type:Hinge Lever
Contact Form:SPST
Contact Rating:5A @ 125/250VAC
,
