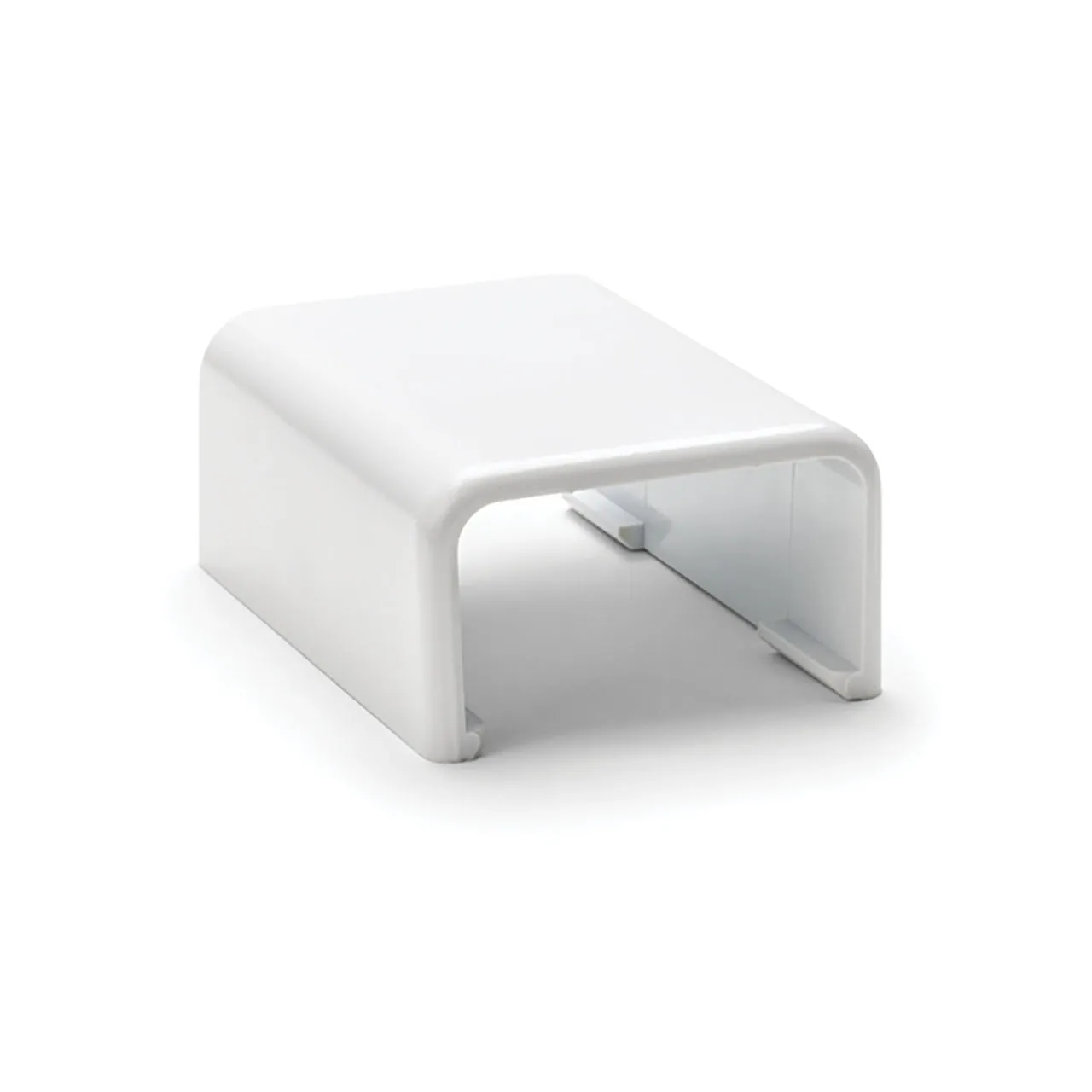

Splice Cover, 3/4", PVC, 3-Piece, White, 10 Individual/bg

Features

• Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance. PVC construction is lightweight, durable and more affordable than metallic raceway systems. Flexible hinge designed to reduce stress cracking and discoloration from repeated opening and closing. Systems and fittings are available in white, office white and ivory to coordinate with a variety of décor. Fittings incorporate a minimum 1" bend radius to meet TIA/EIA 568-B and 569-A standards. Enhanced “channel and lug” mating design provides a tighter, more secure fit between raceway lengths and fittings. System is UL Listed for power up to 600 volts and meet UL5A and CSA 22.2.
• Product Type: Power Rated Raceway Fittings and Junction Boxes

Technical Specifications

• Material: Polyvinylchloride (PVC)
• Operating Temperature: +122°F (+50°C)
• Color: White (WH)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-0
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E211305 [cULus]
• UL Listed (US): Yes
• UL Listed (US and Canada): Yes
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306223818

Overview

HellermannTyton surface raceway systems are the ideal solution for routing communication and power cables. No need to break into existing walls - raceway systems are designed to route cable along wall surfaces. Made of a PVC material, components are durable and affordable; and the one piece construction and adhesive tape backing make positioning and mounting easy. HellermannTyton offers a low voltage TSR system and a power rated TSRP system that are available in three different diameters to accommodate different cable and wire bundle and conduit sizes. Both systems include a complete line of fittings and junction boxes that allow for clean and professional installations. TSRP surface raceway systems are designed to aesthetically organize and route either power or communications cables.
