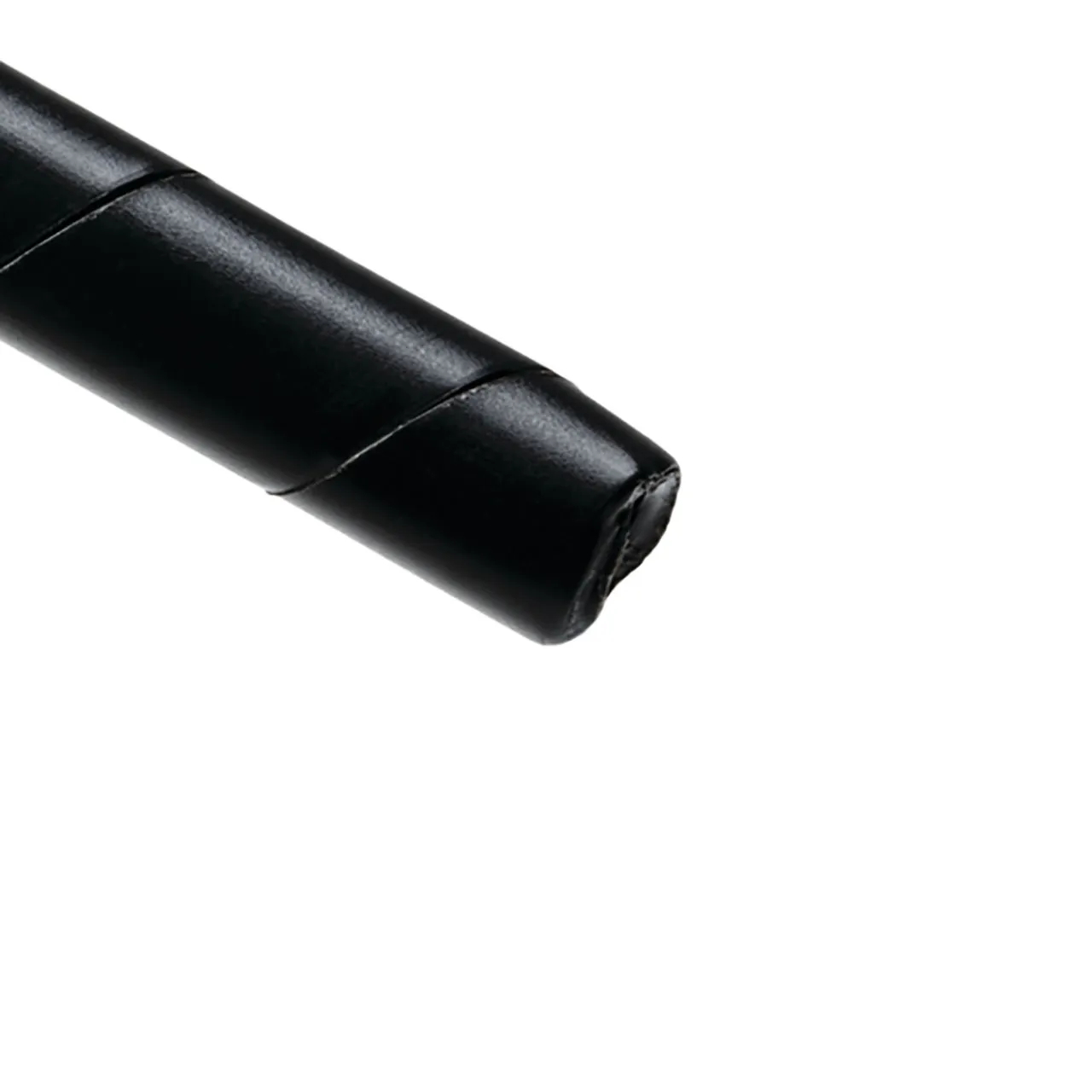

Spiralwrap Protective Sheathing, 0.38" Diameter, PA6, Black, 100 ft/roll

Features

• Sheathing allows flexible routing and lead-out of cables The inner edges are beveled preventing damage to cables Sheathing is reusable and resistant to most chemicals Spiralwrap is U.L. Recognized
• Product Type: Spiralwrap - General Purpose

Technical Specifications

• Material: Polyamide 6 (PA6)
• Operating Temperature: -40°F to +250°F (-40°C to +121°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Bundle Diameter Max. (Imperial): 3"
• Bundle Diameter Max. (Metric): 76.2 mm
• Bundle Diameter Min. (Imperial): 0.31"
• Bundle Diameter Min. (Metric): 7.92 mm
• Diameter D (Imperial): 0.375"
• Diameter D (Metric): 9.53 mm
• Length L (Imperial): 100.0 ft
• Length L (Metric): 30.48 m
• Nominal Diameter (Imperial): 0.38"
• Nominal Diameter (Metric): 9.53 mm
• Pitch (imperial): 0.438"
• Pitch (metric): 11.13 mm
• Reel Length (imperial): 100.0 ft
• Reel Length (metric): 30.48 m
• Self extinguishing (Yes/No): Yes
• Trade Size: 3/8"
• Variant: Spiral Binding
• Wall Thickness WT (Imperial): 0.035"
• Wall Thickness WT (Metric): 0.89 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• CE Certified: No
• CSA Certified: No
• Halogen Free: Yes
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: E147924 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306001010

Overview

HellermannTyton’s Spiralwrap protective sheathing provides cable protection and flexible routing. Spiralwrap is wrapped around a group of cables to shield and organize.
