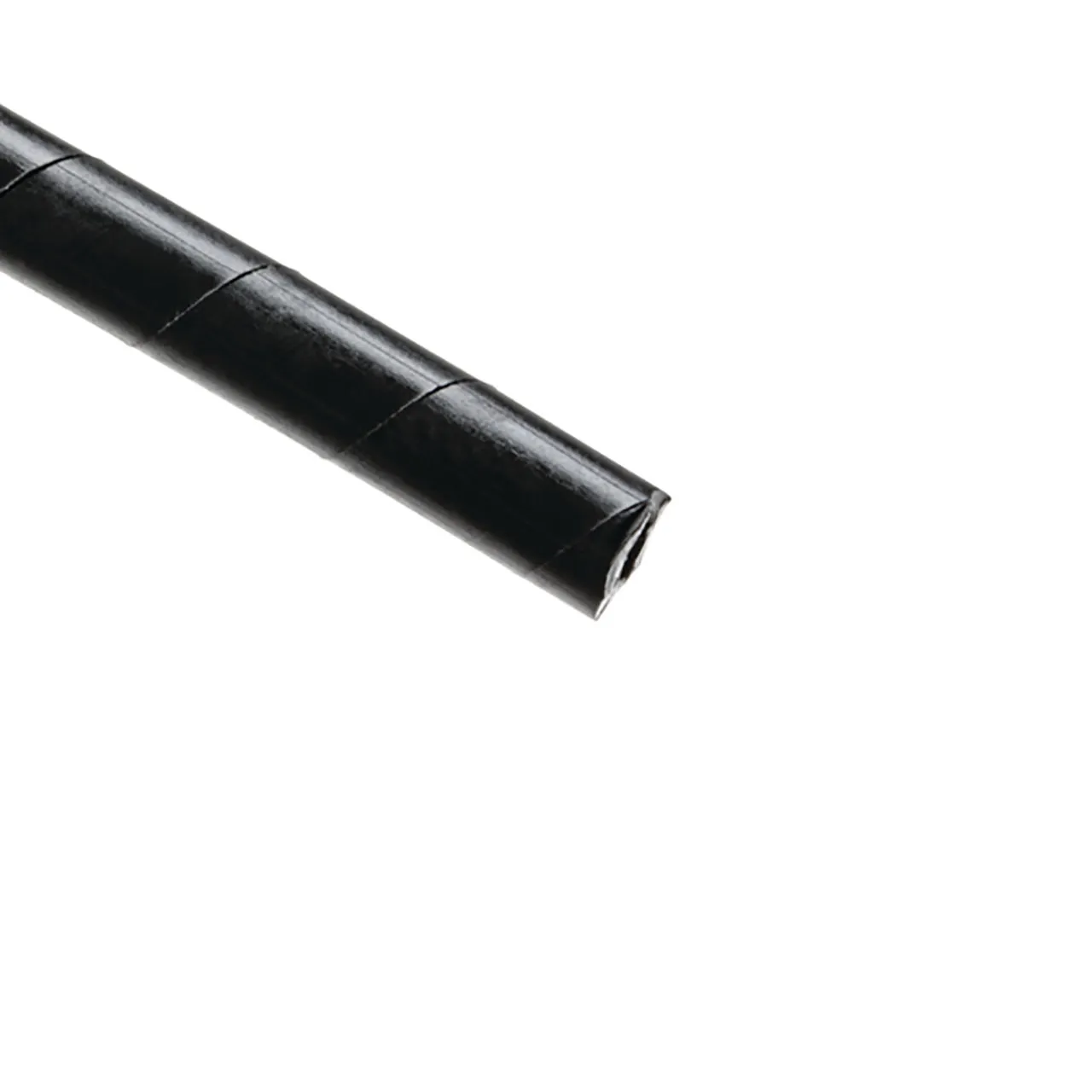

Spiralwrap Protective Sheathing, 0.13" Diameter, PE, Black, 100 ft/roll

Features

• Sheathing allows flexible routing and lead-out of cables. The inner edges are beveled preventing damage to cables. Sheathing is reusable and resistant to most chemicals. Spiralwrap is U.L. Recognized.
• Product Type: Spiralwrap - General Purpose

Technical Specifications

• Material: Polyethylene (PE)
• Operating Temperature: -76°F to +190°F (-60°C to +88°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 0.5"
• Bundle Diameter Max. (Metric): 12.7 mm
• Bundle Diameter Min. (Imperial): 0.06"
• Bundle Diameter Min. (Metric): 1.6 mm
• Diameter D (Imperial): 0.125"
• Diameter D (Metric): 3.18 mm
• Length L (Imperial): 100.0 ft
• Length L (Metric): 30.48 m
• Nominal Diameter (Imperial): 0.13"
• Nominal Diameter (Metric): 3.18 mm
• Pitch (imperial): 0.187"
• Pitch (metric): 4.75 mm
• Reel Length (imperial): 100.0 ft
• Reel Length (metric): 30.48 m
• Trade Size: 1/8"
• Variant: Spiral Binding
• Wall Thickness WT (Imperial): 0.032"
• Wall Thickness WT (Metric): 0.81 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• CE Certified: No
• CSA Certified: No
• Flammable (Yes/No): Yes
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: E147924 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306000952

Overview

HellermannTyton’s Spiralwrap protective sheathing provides cable protection and flexible routing. Spiralwrap is wrapped around a group of cables to shield and organize.
