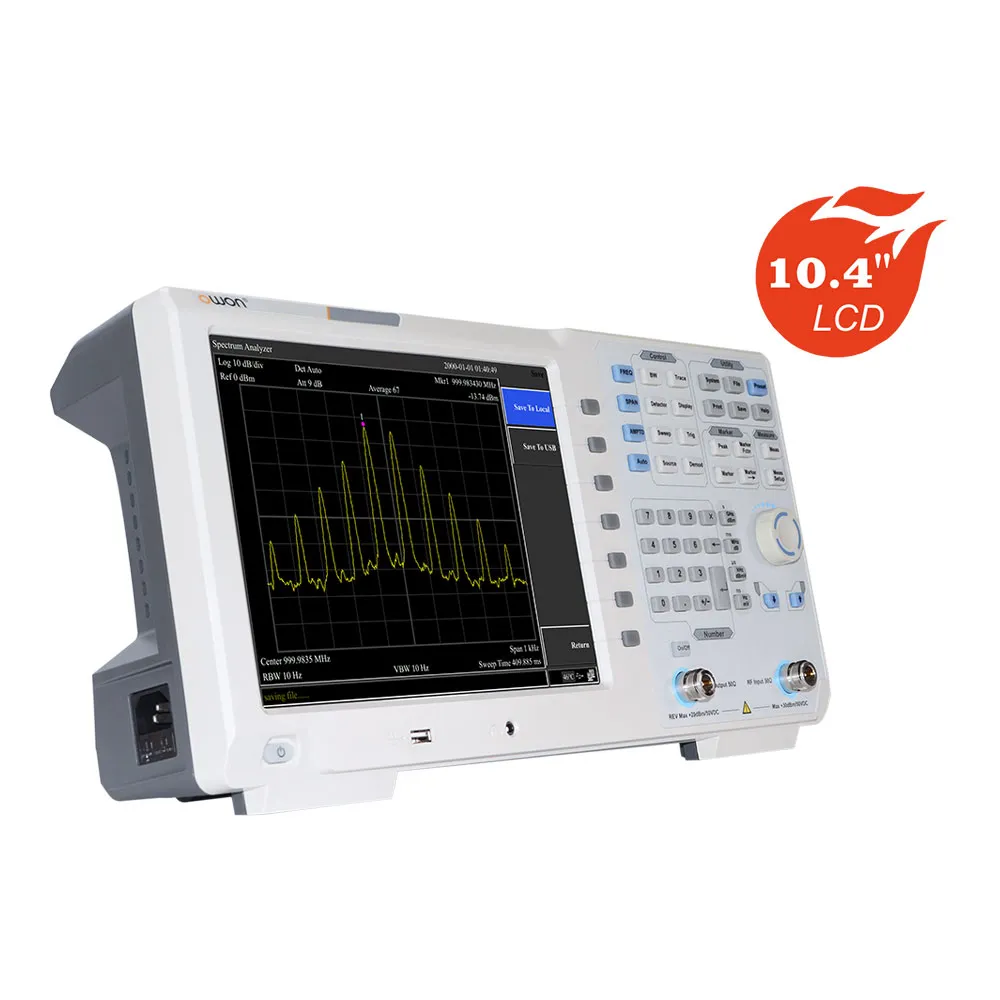

Spectrum Analyzer 9 kHz to 3.2 GHz with Tracking Generator USB & LAN 10.4" TFT

Specifications

  • Frequency Range: 9 kHz to 3.2 GHz
  • Frequency Resolution: 1 Hz
  • 150 dBm Displayed Average Noise Level
  • Phase Noise -82 dBc/Hz @ 1 Gz and offset at 10 KHz
  • Total Amplitude Accuracy <1.5 dB
  • 10 Hz Minimum Resolution Bandwidth (RBW)
  • EMI Pre-compliance Test Kit
  • Tracking Generator: 100 kHz to 3.2 GHz
  • 10.4" TFT LCD
  • Communication port: USB host, USB device, LAN, earphone port, and VGA
  • Size: 421 x 221 x 115 mm (WxHxD)

Resources & Downloads

Product Identification

Additional Feature:Tracking Generator, USB, LAN, 10.4" TFT

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Style:Benchtop
Depth:4.53 in.
Width:16.57 in.
Height:8.70 in.

Features

Communication Protocol:USB host, USB device, LAN, Earphone Port, VGA
Frequency Range:9 kHz to 3.2 GHz
,
