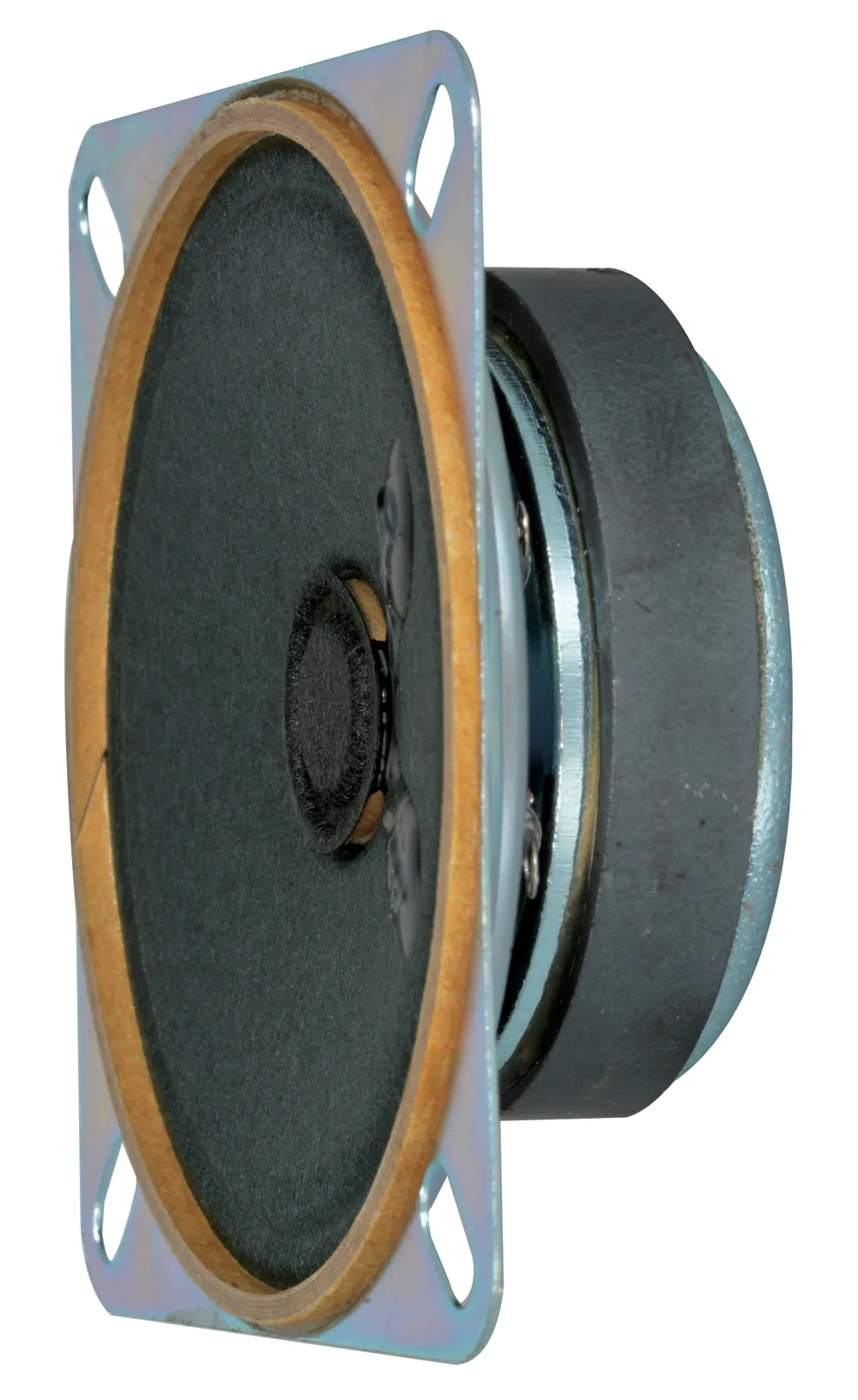

Square Ferrite Speaker

Features:

  • Paper diaphragm
  • Large magnet
  • Anodized metal surfaces
  • Braided copper voice coil leads
  • Pre-tinned speaker lugs
  • Input Power: 3.0W nominal / 4.0W maximum
  • Sound output: 95dB
  • Frequency: 300-14,000Hz
  • Impedance: 4Ω
  • Magnet size: 1.8"Dia. x 0.5"H
  • Speaker size: 2.6"Dia. x 0.9"D

Product Identification

Product Type:Square Ferrite Speaker

Dimensions & Appearance

Depth:0.9 in.
Width:2.6 in.
Length:2.6 in.

Input

Nominal Input Power (W):3
Input Power (max) (W):4

Output

Output:95 dB

Features

Magnet Material:Ferrite
Impedance:4 Ohm
Termination Method:Solderable Lug
Magnet Size (Diameter x H) (inches):1.8 x 0.5
Frequency Range:300 Hz to 14000 Hz
,
