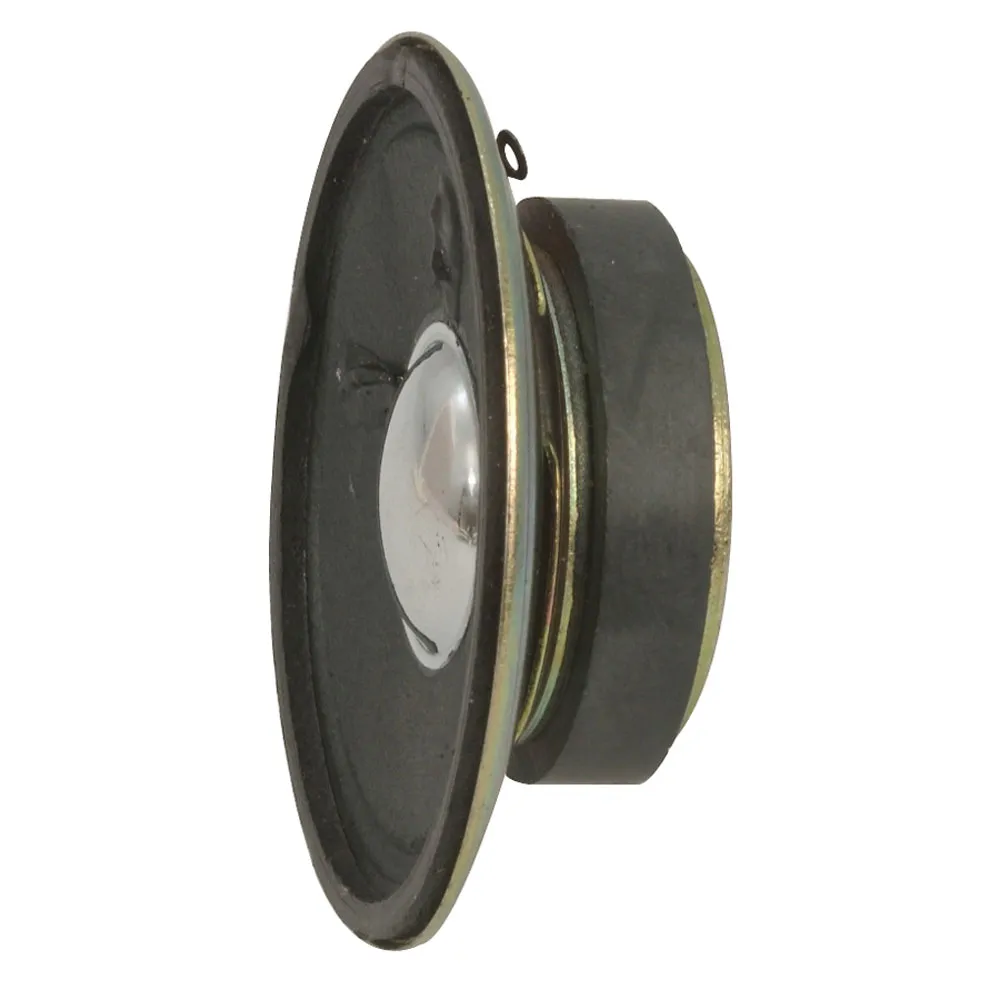

Round Ferrite Speaker

Features:

  • Paper diaphragm
  • Large magnet
  • Anodized metal surfaces
  • Braided copper voice coil leads
  • Pre-tinned speaker lugs
  • Input Power: 0.2W nominal / 0.4W maximum
  • Sound output: 86dB
  • Frequency: 320-4000Hz
  • Impedance: 8Ω
  • Magnet size: 1.3"Dia. x 2.5"H
  • Speaker size: 1.75"Dia. x 0.7"D

Dimensions & Appearance

Depth:0.7 in.
Diameter:2 in.
Width:N/A
Length:N/A

Input

Input Power (max) (W):0.4
Nominal Input Power (W):0.2

Output

Output:86 dB

Features

Impedance:8 Ohm
Magnet Size (Diameter x H) (inches):1.30 x 0.70
Termination Method:Solderable Lug
Frequency Range:900 Hz to 9000 Hz
,
