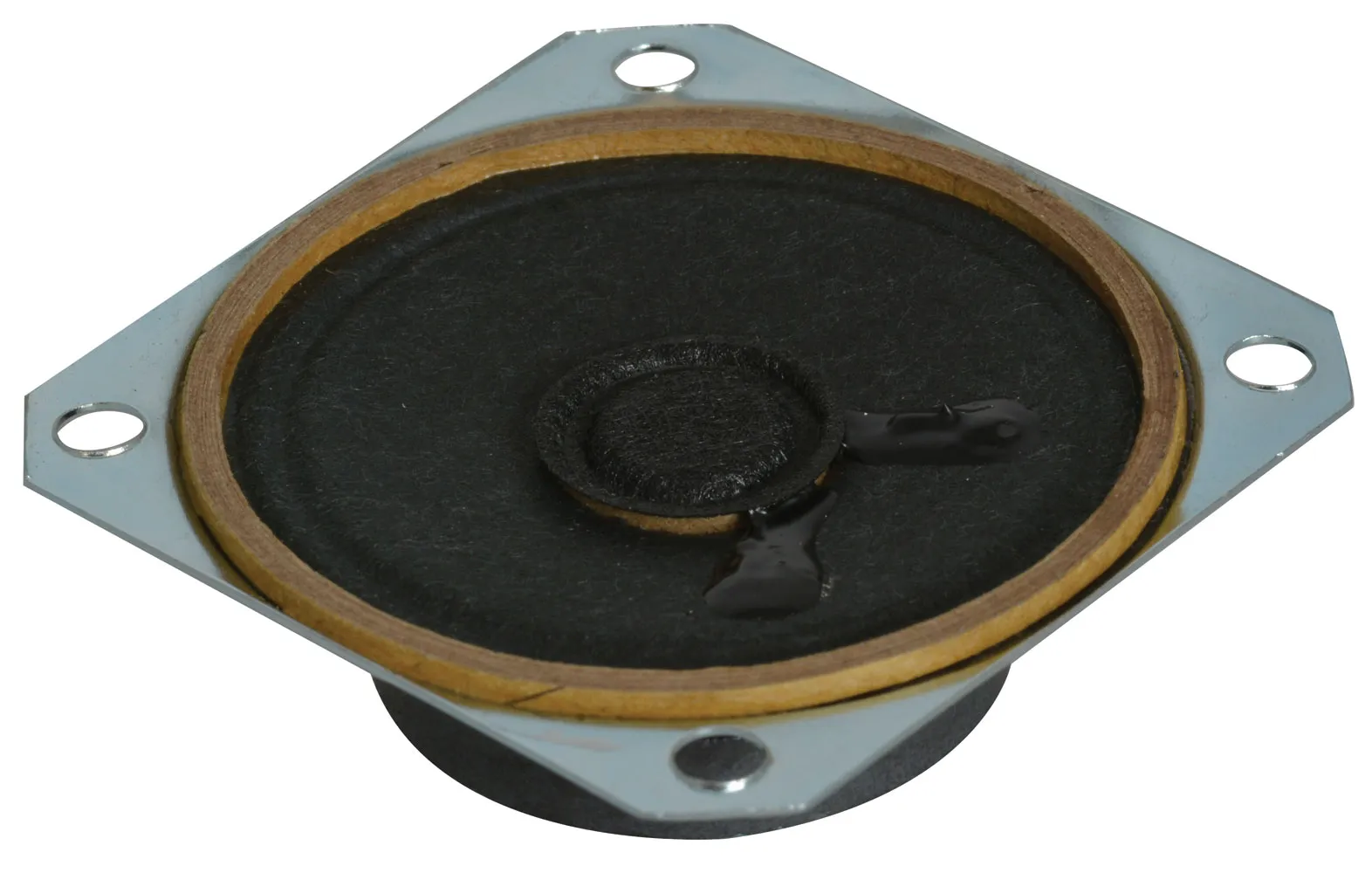

Square Ferrite Speaker

Features:

  • Paper diaphragm
  • Large magnet
  • Anodized metal surfaces
  • Braided copper voice coil leads
  • Pre-tinned speaker lugs
  • Input Power: 0.2W nominal / 0.3W maximum
  • Sound output: 82dB
  • Frequency: 500-6000Hz
  • Impedance: 8Ω
  • Magnet size: 1.3"Dia. x 0.5"H
  • Speaker size: 2.0"Dia. x 0.7"D

    • Product Identification

    Product Type:Square Ferrite Speaker

    Dimensions & Appearance

    Depth:0.7 in.
    Width:2 in.
    Length:2 in.

    Input

    Nominal Input Power (W):0.2
    Input Power (max) (W):0.3

    Output

    Output:82 dB

    Features

    Magnet Material:Ferrite
    Impedance:8 Ohm
    Magnet Size (Diameter x H) (inches):1.3 x 0.5
    Termination Method:Solderable Lug
    Frequency Range:500 Hz to 6000 Hz
    ,
