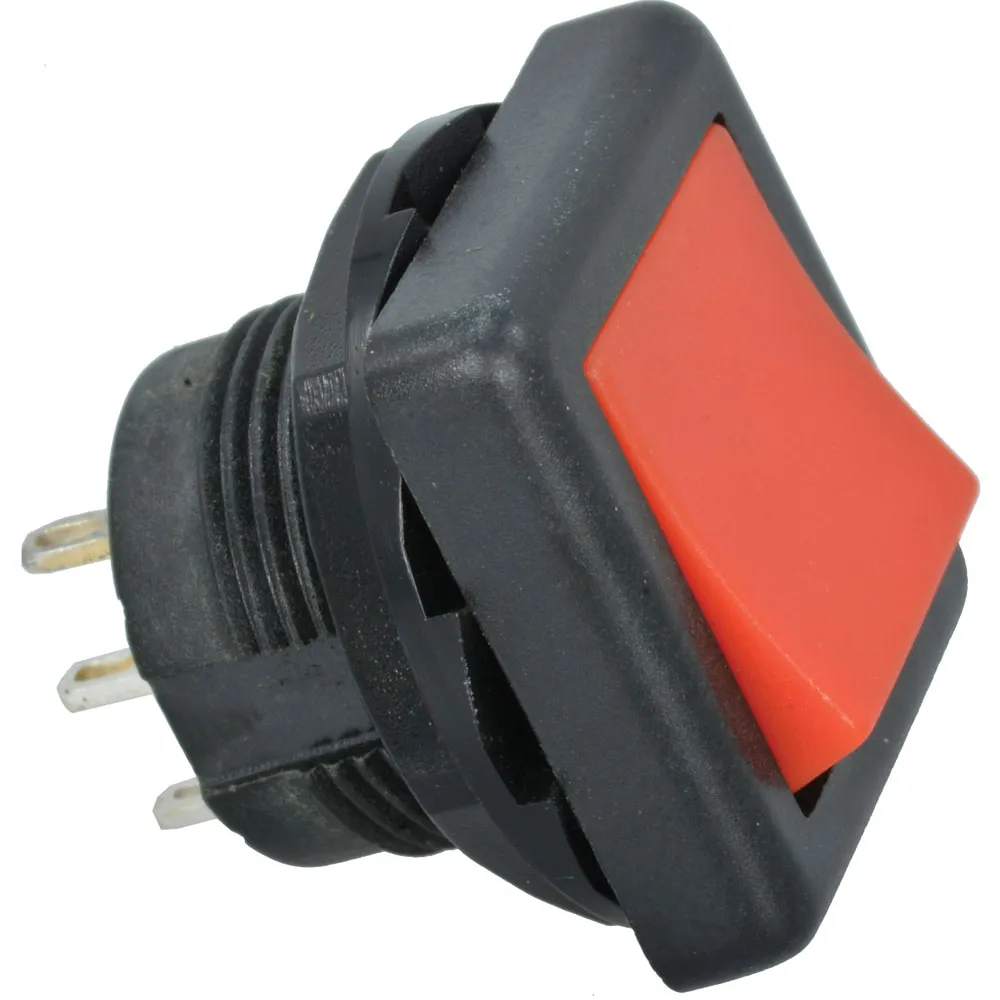

SPDT ON-ON Panel Mount Red Rocker Switch

Specifications

  • Contact Form: Solder Lugs
  • Contact Rating: 10 Amp @ 125 Volt & 6 Amp @ 250 Volt
  • Dimensions (L X W X D) inches: .72 Dia. x .76
  • Number of Pins: 3
  • Terminal Type: Solder Lugs

Product Identification

Product Type:Rocker Switch

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Body Color:Black
Mounting Style:Panel Mount
Depth:0.44 in.
Height:0.925 in.
Width:0.787 in.
Length:1.18 in.

Features

Pins:3
UL Flammability Code:94V-2
Illumination Type:None
Switch Function:ON-ON
Actuator Length:0.196 in.
IP Rating:none
Contact Form:SPDT
Color - Actuator/Cap:Red
Actuator Type:Rocker
Termination Style:Solder Lug
Current Rating:10A @ 125VAC, 6A @ 250VAC
,
