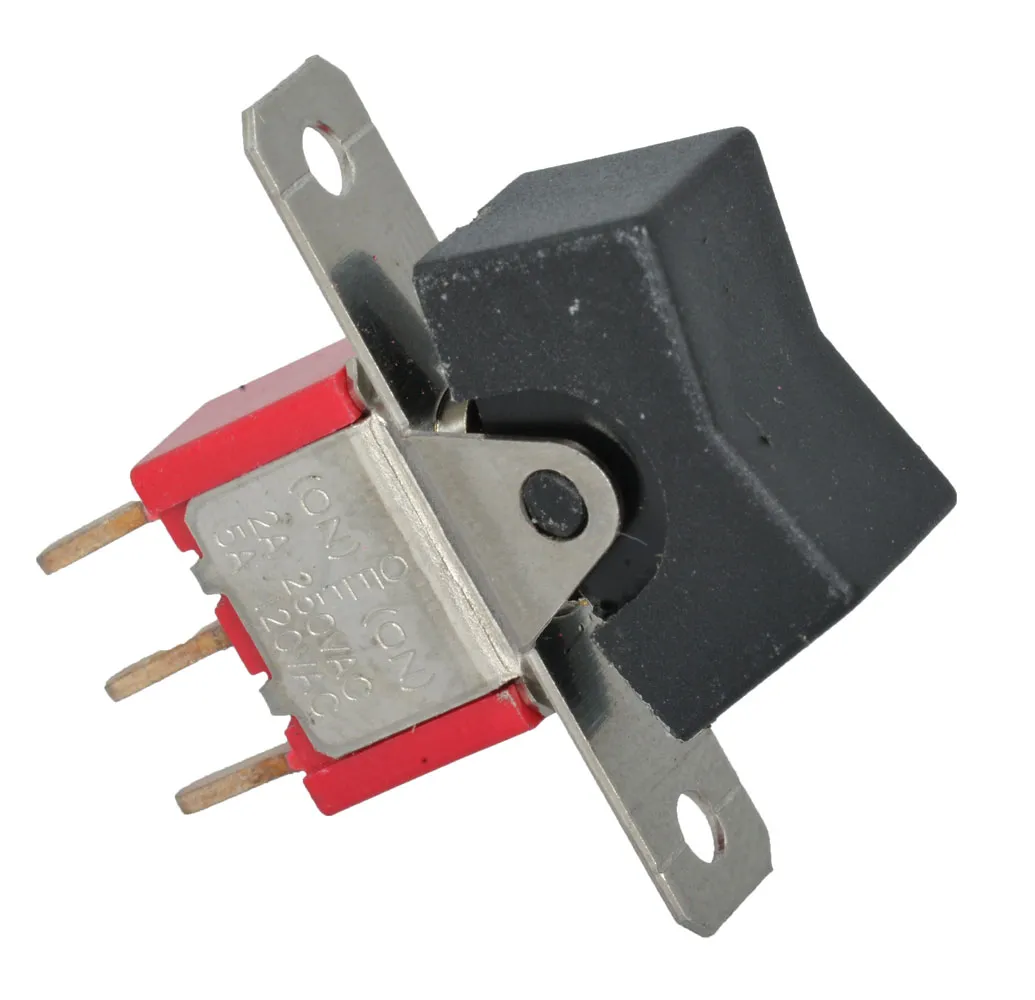

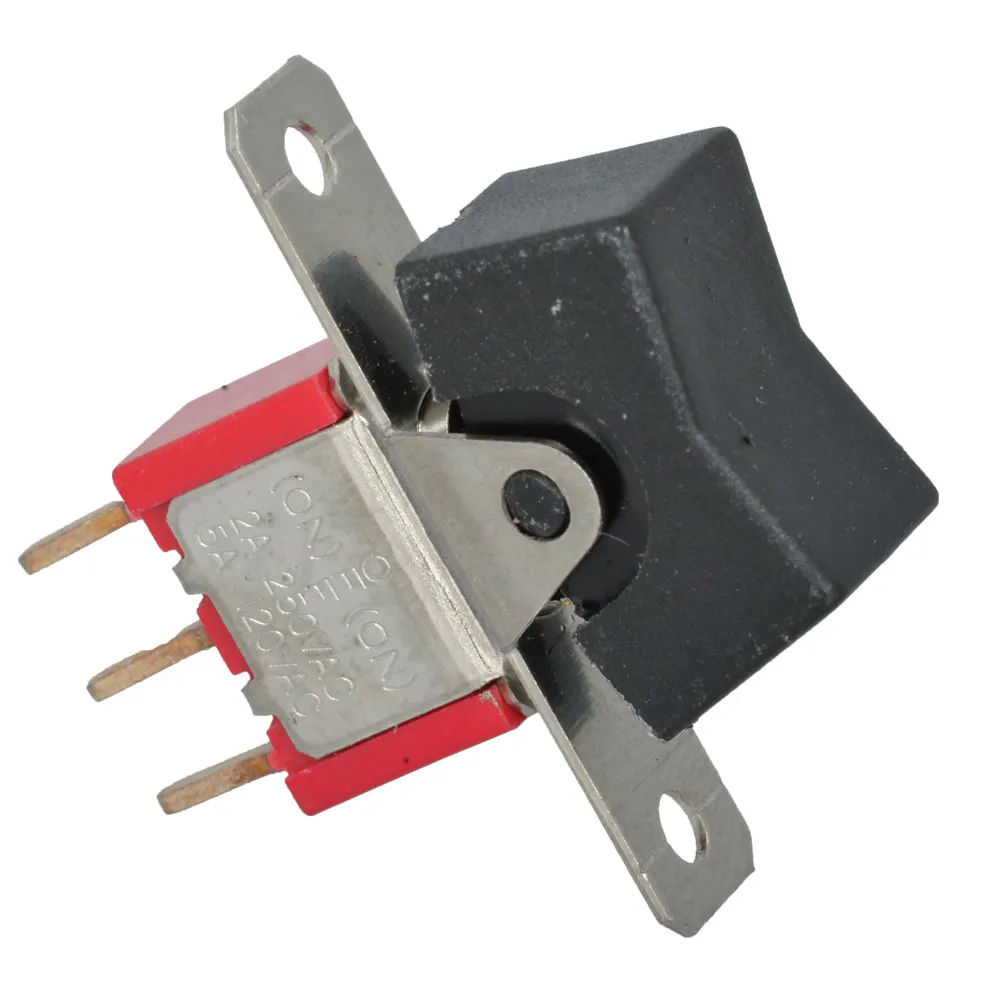

SPDT (ON)-OFF-(ON) Panel Mount Black Rocker Switch

Specifications

  • Contact Form: PC terminal
  • Contact Rating: 5 Amp @ 120 & 2 Amp @ 250 Volt
  • Dimensions (L X W X D) inches: .50 x .34 x .6
  • Number of Pins: 3
  • Terminal Type: PC terminal

Product Identification

Product Type:Rocker Switch

Dimensions & Appearance

Mounting Style:Panel Mount
Depth:0.4 in.
Width:0.37 in.
Height:0.86 in.
Length:1.1 in.
Body Color:Red

Features

Pins:3
UL Flammability Code:94V-0
Switch Function:(ON)-OFF-(ON)
Lead Spacing A (inch):0.185
Color - Actuator/Cap:Black
Illumination Type:None
IP Rating:none
Termination Style:PC Pins
Contact Form:SPDT
Actuator Length:0.44 in.
Actuator Type:Rocker
Current Rating:5A @ 125VAC, 2A @ 250VAC
,
