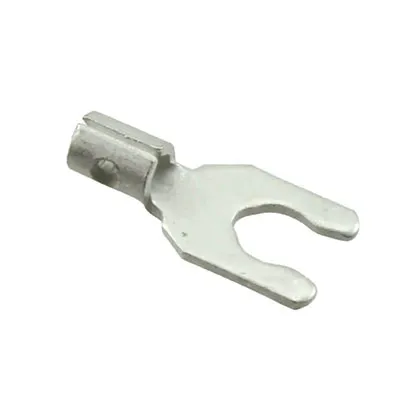

Spade Terminal Connector 6 Stud 16-14 AWG Crimp
Specifications
- Series: Krimptite
- Terminal Type: Spring, Snap
- Stud/Tab Size: 6 Stud
- Width - Outer Edges: 0.265" (6.73 mm)
- Length - Overall: 0.585" (14.86 mm)
- Mounting Type: Free Hanging (In-Line)
- Termination: Crimp
- Wire Gauge: 16-14 AWG
- Insulation: Non-Insulated
- Color: n/a
- Contact Material: Copper
- Contact Finish: Electro-Tin
- Length - Ring Center to Termination: 0.230" (5.84 mm)
- Length - Termination: 0.179" (4.55 mm)
- Tongue Inside Opening: 0.114" (2.90 mm)
- Base Part Number: 019098
