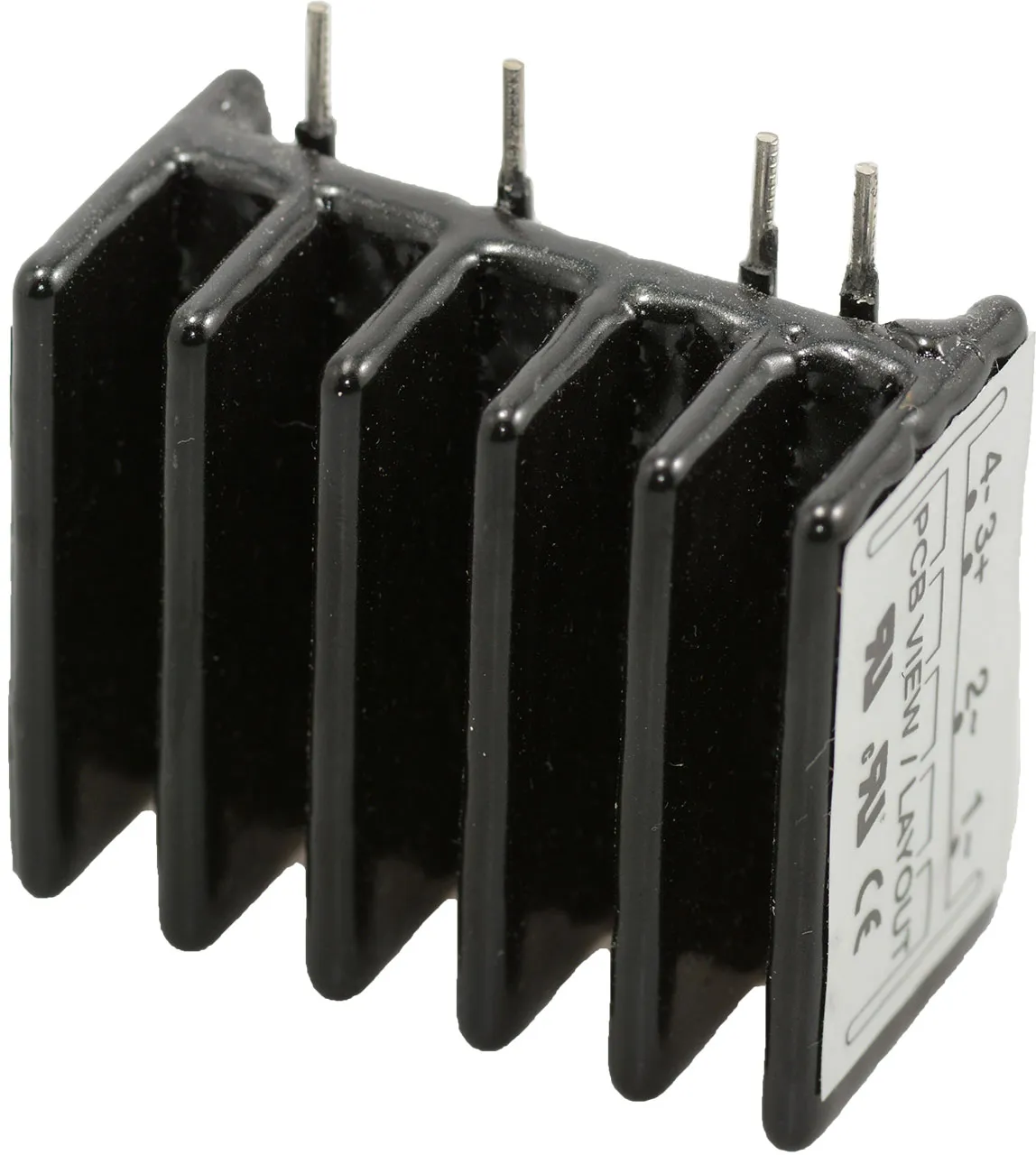

Solid State Relay PCB Mount 230V 10A

Features

  • Mounting Style: PCB Mount
  • Load Current Rating: 10 A
  • Load Voltage Rating: 230 VAC
  • Relay Contact Form: 1 Form A (SPST-NO)
  • Control Voltage Range: 3 VDC to 32 VDC
  • Output Type: Triac
  • Input Current: 10 mA
  • Minimum Operating Temperature: - 30 C
  • Maximum Operating Temperature: + 80 C
  • Length: 43 mm
  • Width: 22 mm
  • Height: 37 mm

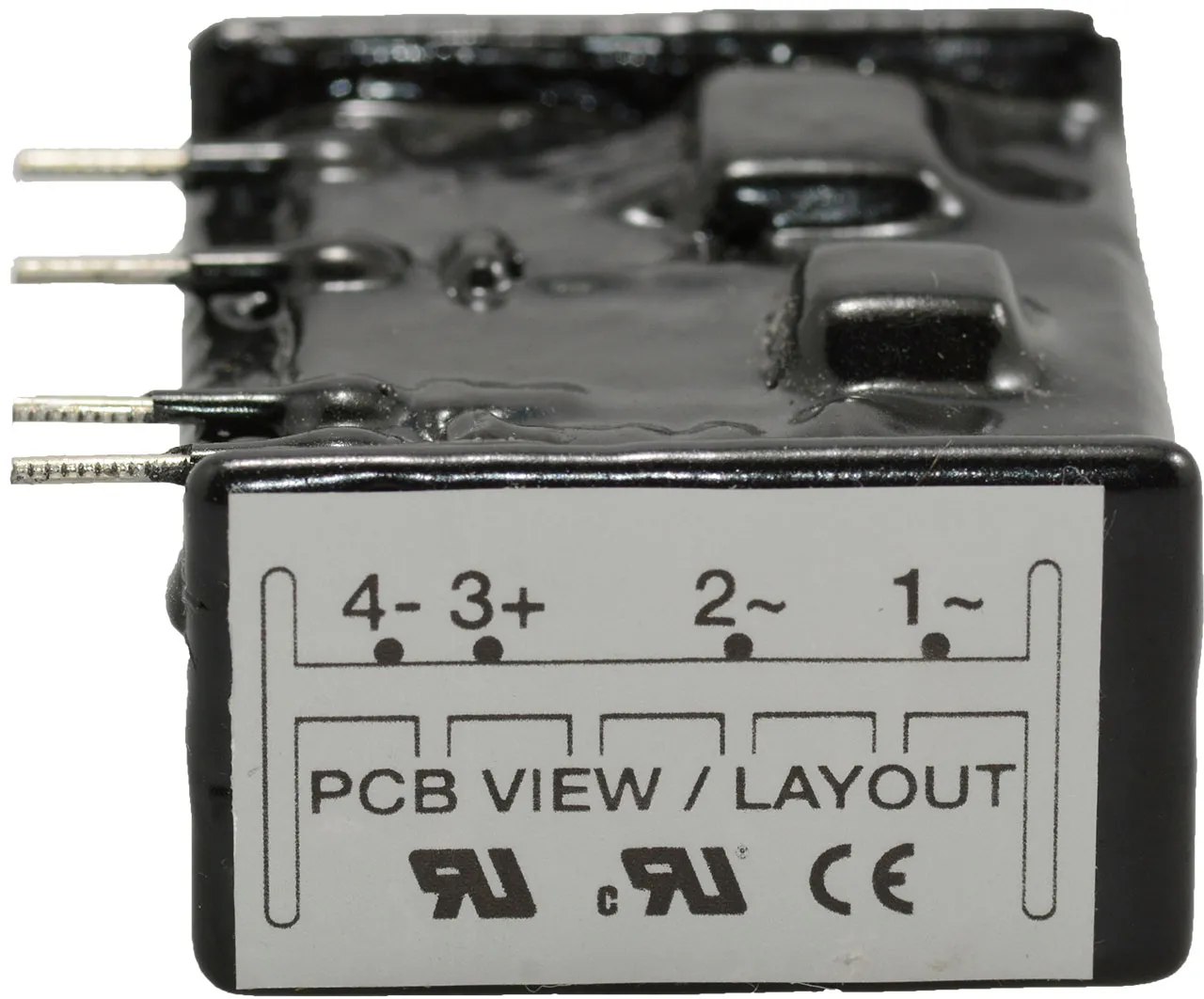

Relay Connection Diagram

Product Identification

Family:RP1A23
Product Type:AC, Zero Cross Solid State Relay

Dimensions & Appearance

Width:22 mm
Height:7 mm
Length:43 mm

Features

Circuit Arrangement:1 Form A
Pins:4
Control Voltage:3 VDC to 32 VDC
I/O Isolation Voltage:4000V(RMS)
Terminal Type:SIP-4
Contact Current:10 A
Contact Voltage:230 VAC
Contact Form:SPST-NO
,
