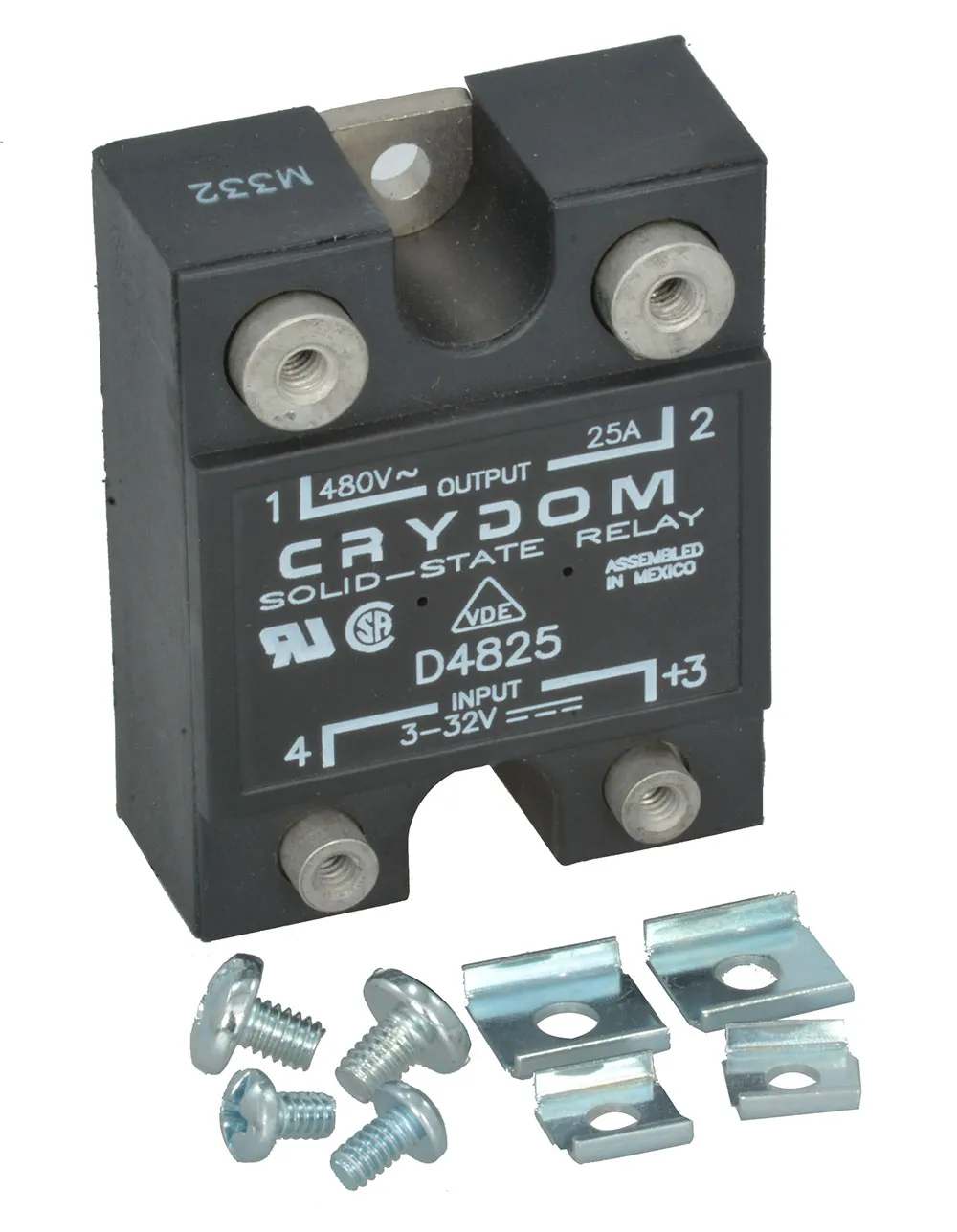

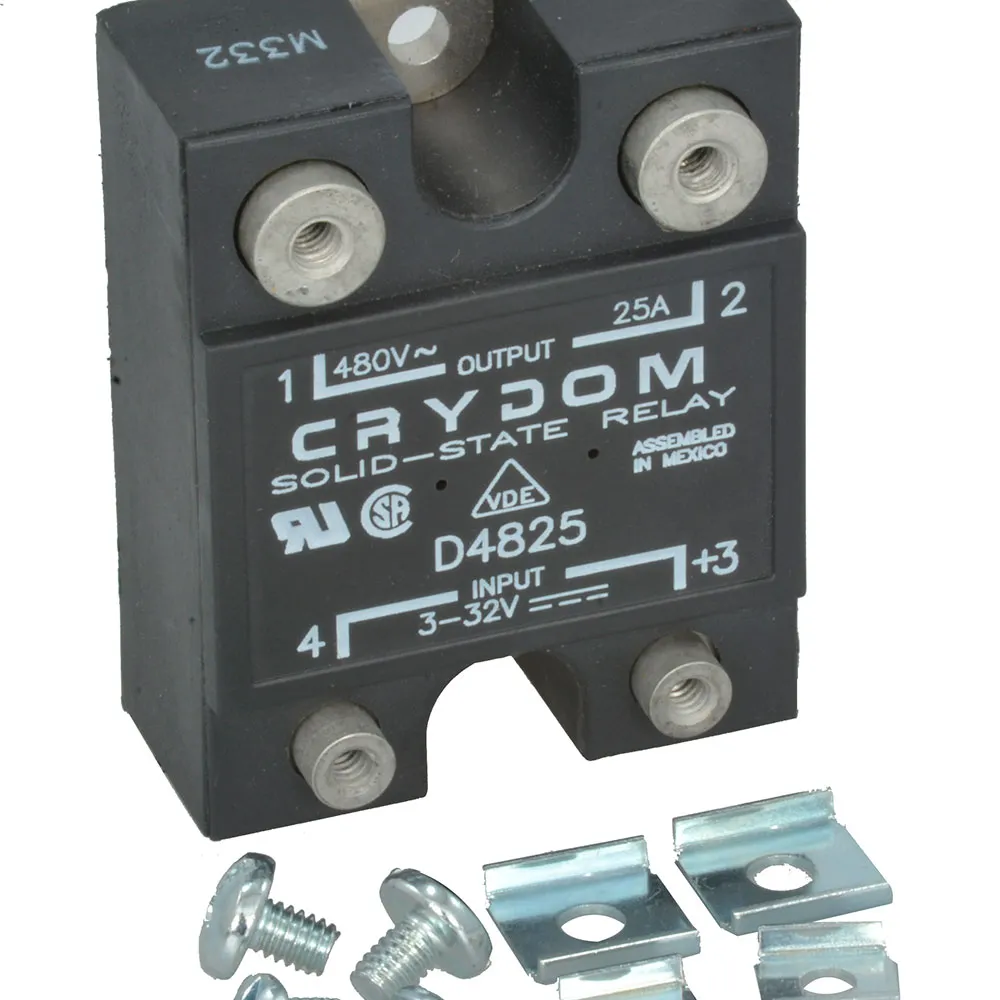

Solid State Relay SPST-NO (1 Form A) Hockey Puck

Specifications

  • Circuit: SPST-NO (1 Form A)
  • Series: D48
  • Output Type: AC, Zero Cross
  • Load Current: 25A
  • Voltage - Input: 3 to 32VDC
  • Voltage - Load: 80V to 530V
  • Mounting Type: Chassis Mount or Panel Mount
  • Termination Style: Screw Terminal
  • Package / Case: Hockey Puck
  • Relay Type: Relay

Product Identification

Family:Series 1
Product Type:DC/AC Solid State Relay

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Height:22.6 mm
Width:44.5 mm
Length:57.3 mm

Features

Pins:4
I/O Isolation Voltage:4000V
Control Voltage:3 VDC to 32 VDC
Contact Current:25 A
Terminal Type:Screw Terminal
Contact Voltage:530 VAC
Contact Form:SPST
,
