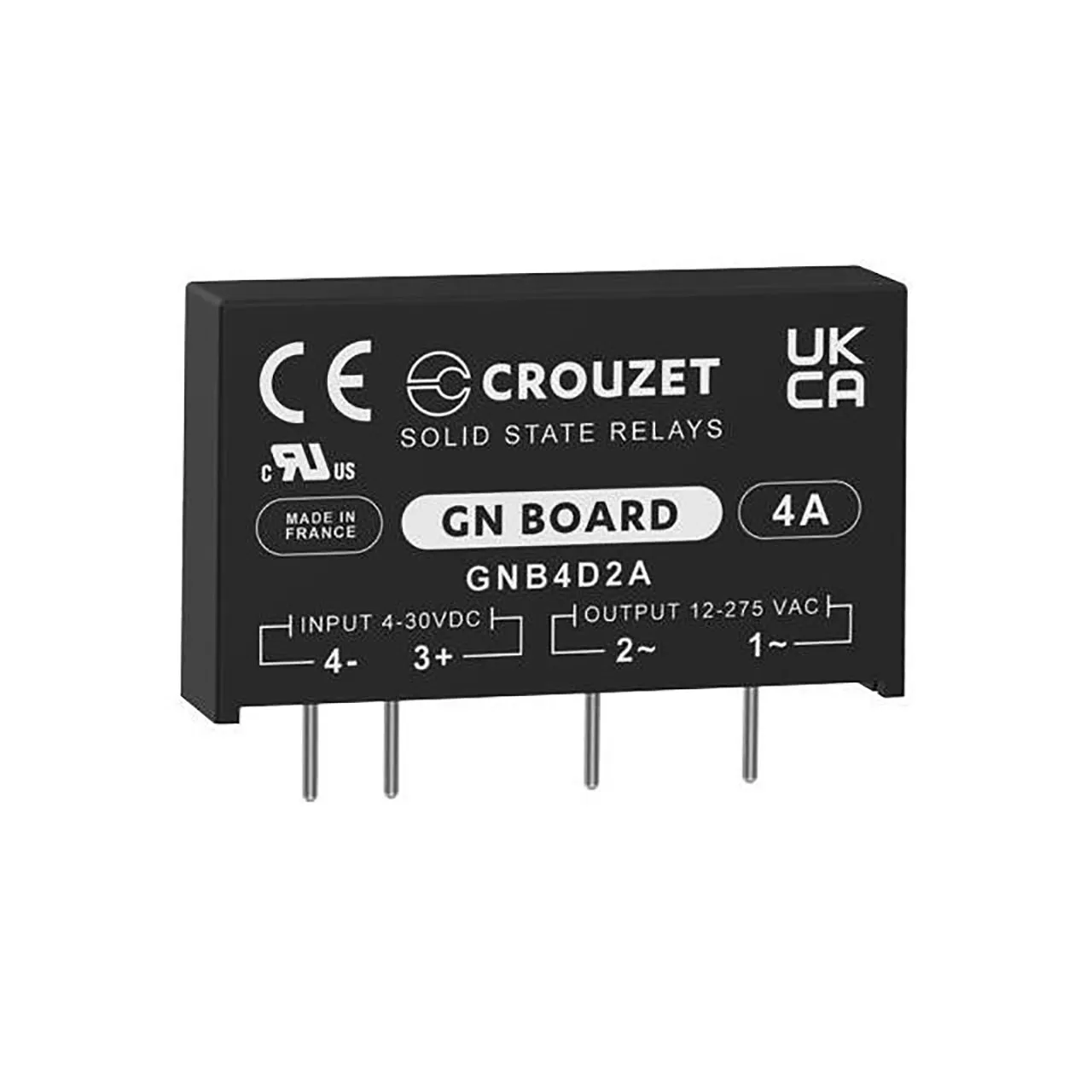

Solid State Relay GN Board PCB Mounting 4A Out 12-275 VAC In 4-30 VDC Special Zero Cross

Features

  • Product Type: Solid State Relay
  • Manufacturer Series: GNB
  • Contact Form: SPST-NO (1 Form A)
  • Output Type: AC, Zero Cross
  • Voltage Rating: 12 V ~ 460 V
  • Current Rating: 4 A
  • Control Voltage: 4 ~ 30VDC
  • Termination Style: PC Pin
  • Package: 4-SIP
  • Agency Approval: CE, UL, cUL, UKCA
  • Mounting Type: Through Hole
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: 80°C
  • Harmonized Code: 8536508090
  • ECCN: EAR99

Overview

Solid State Relay GN Board PCB Mounting 4A Out 12-275 VAC In 4-30 VDC Special Zero Cross.

Product Identification

Manufacturer Series:GNB
Product Type:Solid State Relay

Dimensions & Appearance

Mounting Type:Through Hole

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C

Packaging

Package:4-SIP

Output

Output Type:AC, Zero Cross

Features

Control Voltage:4 ~ 30VDC
Contact Form:SPST-NO (1 Form A)
Termination Style:PC Pin
Voltage Rating:12 V ~ 460 V
Current Rating:4 A
,
