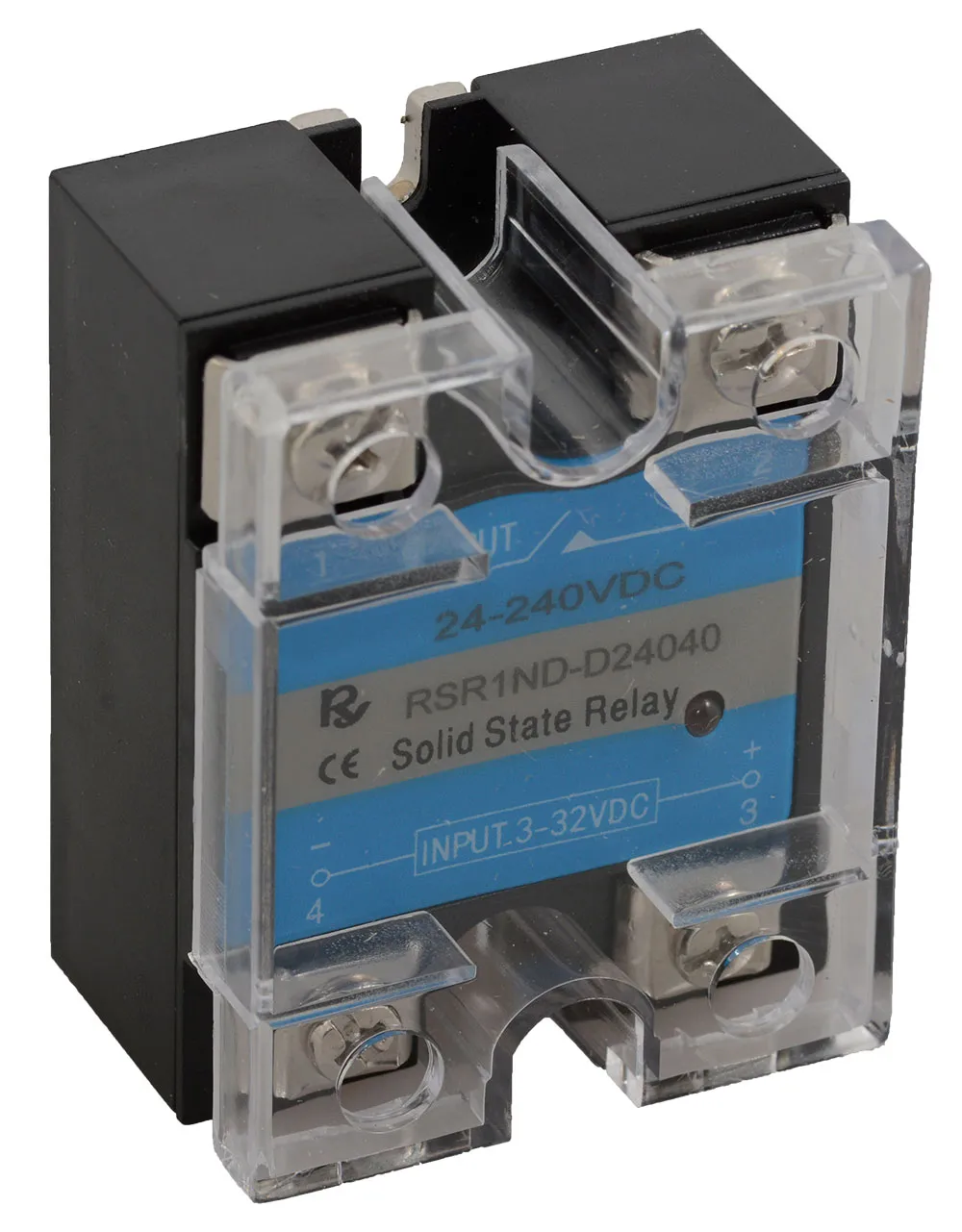

Solid State Relay DC-DC 24-240VDC Load 3-32 VDC Control 40A Screw Terminal
Features
- Zero voltage turn-on, zero current turn-off
- Input LED indicator
- Output snubber circuit protection
- TTL and CMOS compatible
- High dv/dt and high blocking voltage
Technical Specifications
- Load Voltage: 24-240 VDC
- Load Current: 40 A
- Control Voltage: 3 to 32 VDC
- Control Current: 5 to 25 mA (DC)
- On-Off Time: <10 ms
- Size: 57.4 mm L x 44.8 mm W x 28 mm H
- Connections: M4 screws
- Chassis mount
Product Identification
Family:RSR1
Product Type:DC/DC Solid State Relay
Dimensions & Appearance
Height:28 mm
Width:40 mm
Length:57.4 mm
Features
Circuit Arrangement:1 Form A
I/O Isolation Voltage:2000V
Pins:4
Control Voltage:3 VDC to 32 VDC
Contact Voltage:24 VDC to 240 VDC
Contact Current:40 A
Terminal Type:Screw Terminal
Contact Form:SPST-NO
