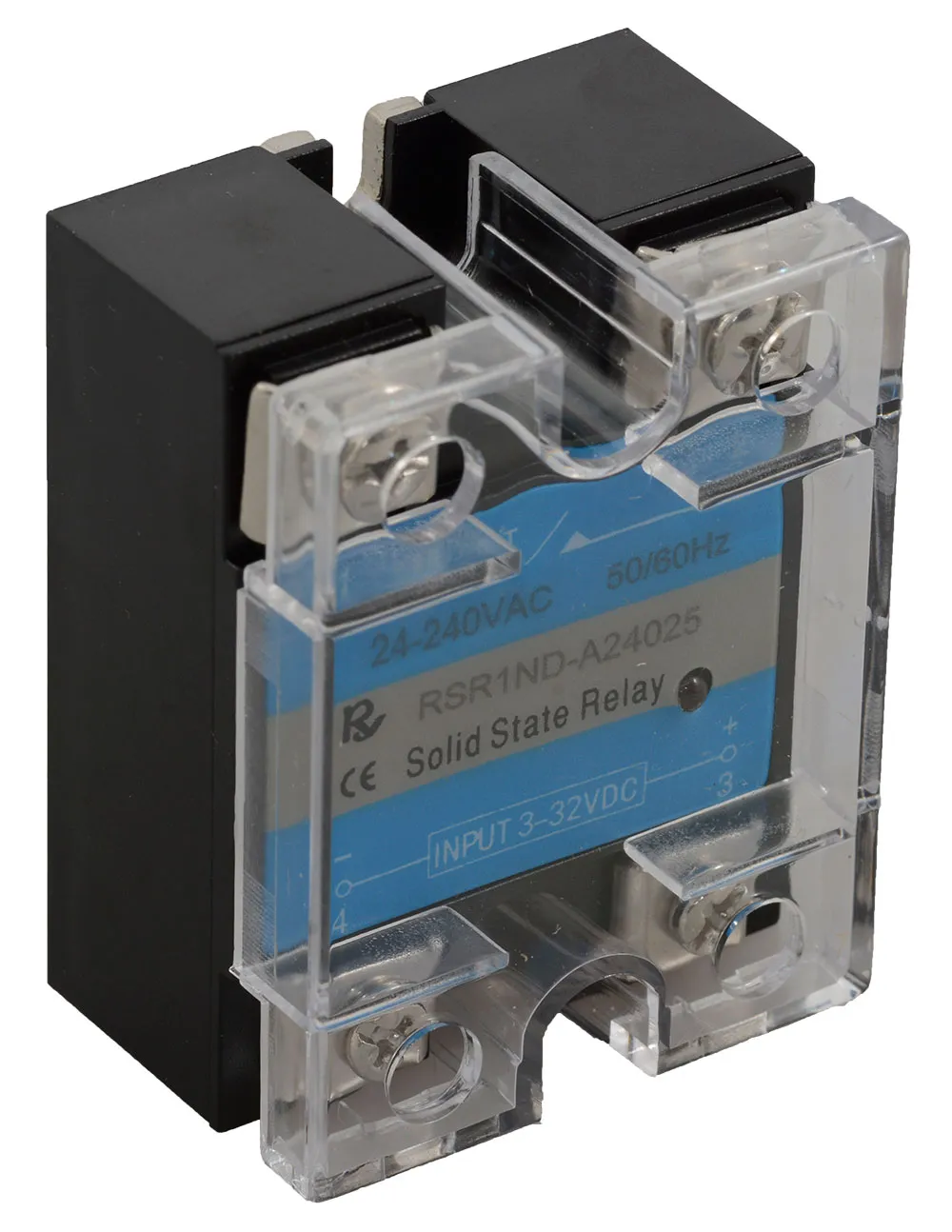

Solid State Relay DC-AC 240VAC Load 3-32 VDC Control 25A Screw Terminal

Features

  • Zero voltage turn-on, zero current turn-off
  • Input LED indicator
  • Output snubber circuit protection
  • TTL and CMOS compatible
  • High dv/dt and high blocking voltage

Specifications

  • Load Voltage: 240 VAC
  • Load Current: 25 A
  • Control Voltage: 3 to 32 VDC
  • Control Current: 3 to 25 mA (DC)
  • On-Off Time: <10 ms
  • Size: 57.4 mm L x 44.8 mm W x 28 mm H
  • Connections: M4 screws
  • Chassis mount

Product Identification

Family:RSR1
Product Type:DC/AC Solid State Relay

Dimensions & Appearance

Height:28 mm
Width:40 mm
Length:57.4 mm

Features

Circuit Arrangement:1 Form A
I/O Isolation Voltage:2500V
Pins:4
Control Voltage:3 VDC to 32 VDC
Contact Current:25 A
Terminal Type:Screw Terminal
Contact Voltage:240 VAC
Contact Form:SPST-NO
,
