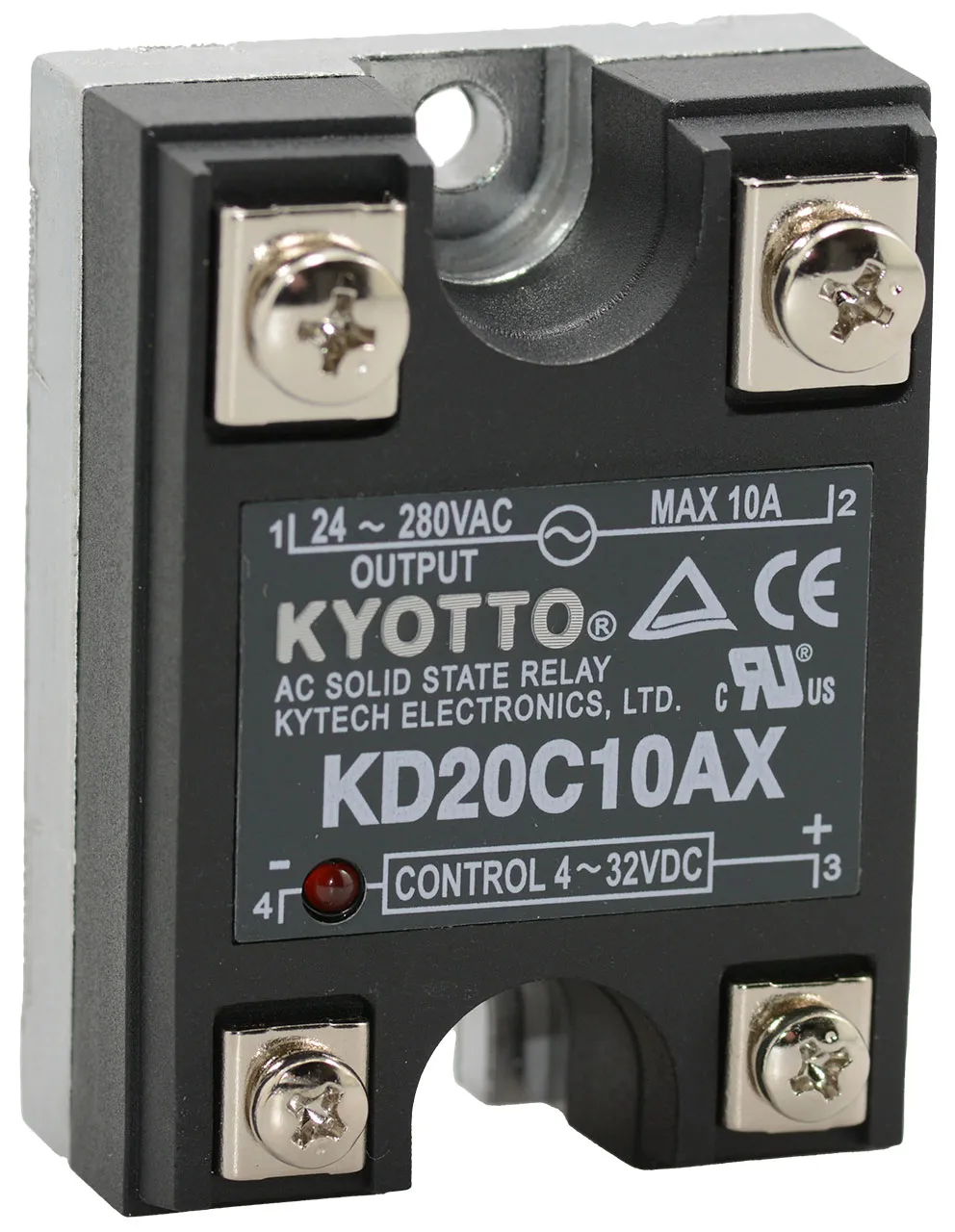

DC-to-AC Solid State Relay

Designed for the appliance and temperature control markets, these relays are also well suited for automotive load management.

Features:

  • Control voltage: 4 to 32 VDC
  • Contact form: SPST
  • Contact voltage: 24 to 280 VAC
  • Contact current: 10A
  • Size: 1.7"L x 0.9"W x 2.3"H
  • 4-pin package
  • Terminal type: Screw terminal
  • Built-in heat sink
  • Agency approvals: UL/CE

Product Identification

Family:KD20C
Product Type:DC-AC Solid State Relay

Dimensions & Appearance

Width:22.9 mm
Height:58.4 mm
Length:43.2 mm

Features

Circuit Arrangement:1 Form A
I/O Isolation Voltage:2500V
Pins:4
Contact Voltage:24 VAC to 280 VAC
Control Voltage:4 VDC to 32 VDC
Contact Current:10 A
Terminal Type:Screw Terminal
Contact Form:SPST
,
