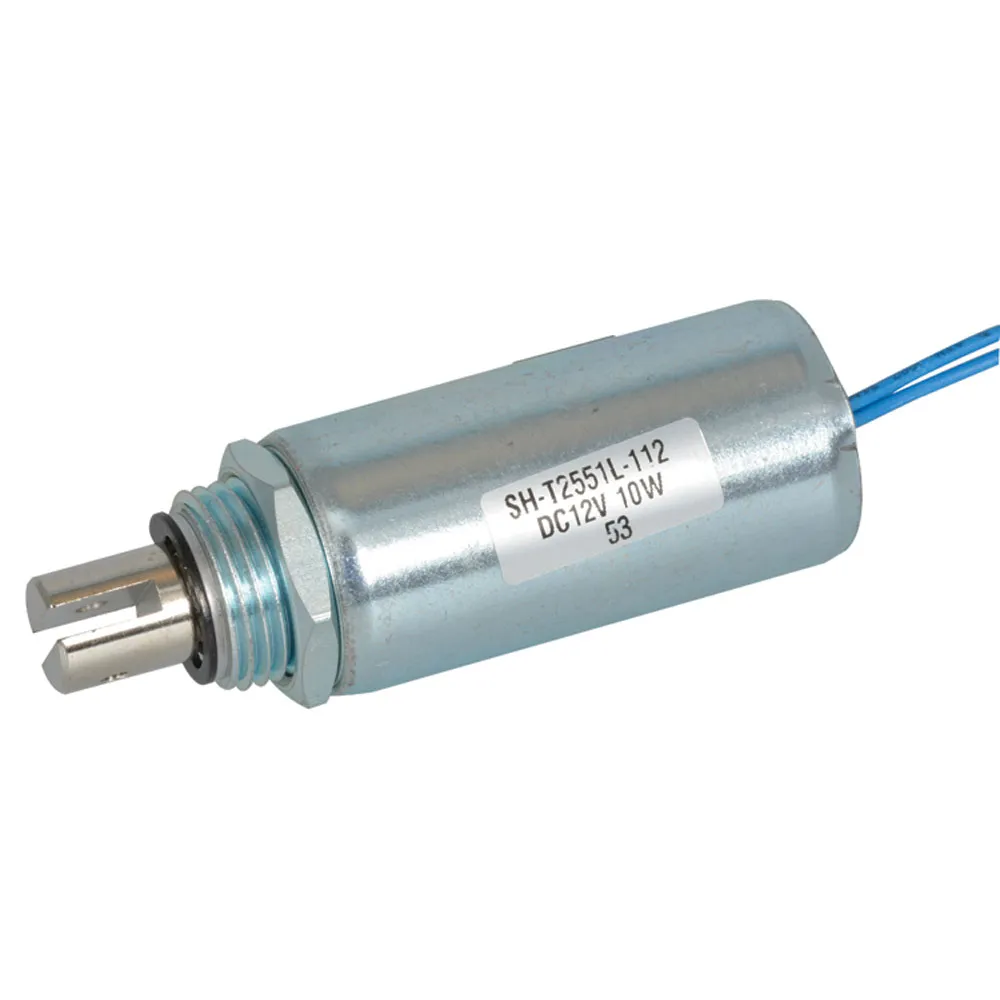

12V Pull Type Solenoid
Specifications:
- Nominal voltage: 12VDC
- Coil resistance: 14.4 ohm (±10%)
- Power rating: 10W
- Holding force: 4 lbs.
- Stroke: 0.71''
- Continuous
- Size: 2.99" L x 1.0" Dia.
- Plunger Diameter: 0.41''
- Plunger Length: 2.54''
- Weight: 0.39 lbs.
Product Identification
Product Type:Tubular-Pull
Dimensions & Appearance
Weight:0.388 lbs.
Diameter:1 in.
Length:3.1 in.
Shaft Diameter:0.41 in.
Features
Stroke:0.4
Holding Force (lbs.@200C):3.86
Coil Resistance:14.4 Ohm
Voltage Rating:12 VDC
